36 English
Installation

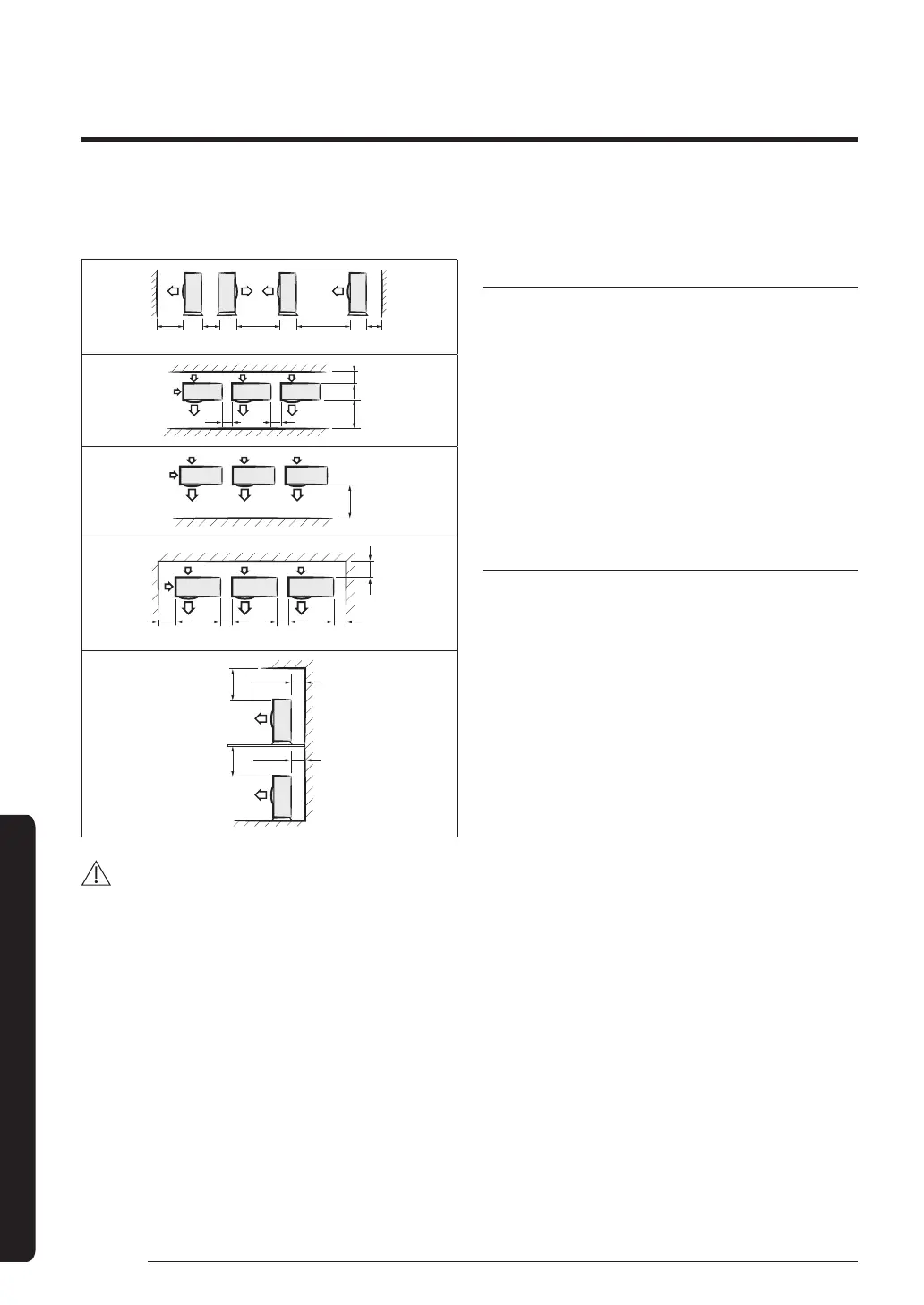

When installing more than 1 outdoor unit (5 cases)
(Unit: mm)
1500 600 3000 2003000
3001500
600 600
1500
300
300 600 600 600
500
300
500
300
CAUTION
• If the outdoor unit is installed with any insufficient
clearance, it may generate sound and affect the whole
product.
• Be sure to install the outdoor unit in a level place
where its vibration does not affect the whole product.
Step 1.2 Packing and Unpacking
Indoor unit
Packing the unit as below procedure
1 Put the indoor unit onto the packing case.
2 Assemble cushion-both side of indoor unit. (Left and
Right)
3 Seal the packing case.
Unpacking the unit as below procedure
1 Open the packing case.
2 Take out the both side of cushion(Left and Right).
3 Move the set from the packing case.
Outdoor unit
Packing the unit as below procedure
1 Put the outdoor unit onto the cushion-bottom.
2 Put the cushion-top onto the outdoor unit
3 Put the packing case from the top of set.
4 Seal the packing case.
Unpacking the unit as below procedure
1 Take out the packing case from the set.
2 Take out the cushion-top.
3 Move the set from the cushion-bottom.
