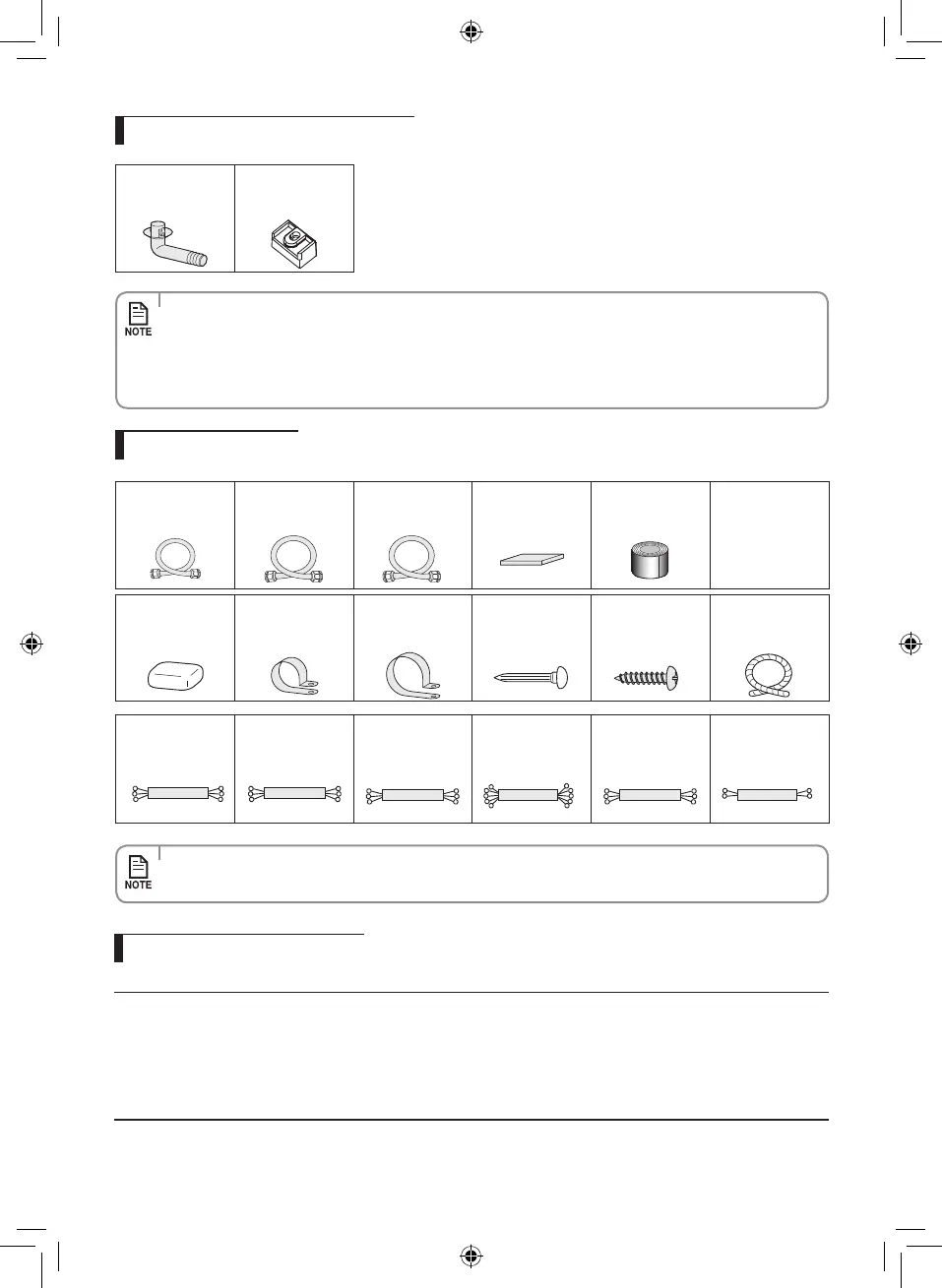

Accessories in the outdoor unit case

Optional accessories

• Thearenutsareattachedtotheendofeachpipeofanevaporatororaserviceport.

Use the nuts when connecting the pipes.

• Thewireassemblycableisoptional.Ifitisnotsupplied,usethestandardcable.

• Thedrainplugandrubberlegareonlyincludedwhentheairconditionerissuppliedwithouttheassemblypipe

as seen in the picture below.

• Iftheseaccessoriesaresupplied,theywillbeintheaccessorybox.

Drain Plug (1) Rubber Leg (4)

Insulated

Assembly Pipe,

Ø6.35 mm x 5 m (1)

Insulated Assembly Pipe,

Ø12.70 mm x 5 m (1)

✴✴

12/18

✴✴

Insulated Assembly Pipe,

Ø15.88 mm x 5 m (1)

✴✴

24

✴✴

PE T3 Foam Tube

Insulation (1)

Vinyl Tapes (2)

Putty 100 g (1) Pipe Clamps A (3) Pipe Clamps B (3) Cement Nails (6)

M4 x 25 Tapped

Screws (6)

Drain Hose,

length 2 m (1)

3-wire

Assembly Cable (1)

✴✴

12HC

✴✴

3-wire

Assembly Cable (1)

✴✴

18HC

✴✴

3-wire

Assembly Cable (1)

✴✴

24HC

✴✴

5-wire

Assembly Cable (1)

✴✴

12HP

✴✴

3-wire

Assembly Cable (1)

✴✴

18/24HP

✴✴

2-wire

Assembly Cable (1)

✴✴

18/24HP

✴✴

Tools required for installation

General Tools

•VacuumPump(Backwardowingprevention) •ManifoldGauge •StudFinder

•TorqueWrench •PipeCutter •Reamer •PipeBender •SpiritLevel

•ScrewDriver •Spanner •Drill •LWrench •MeasuringTape

Tools for test operations

•Thermometer •ResistanceMeter  •Electroscope

English-34
