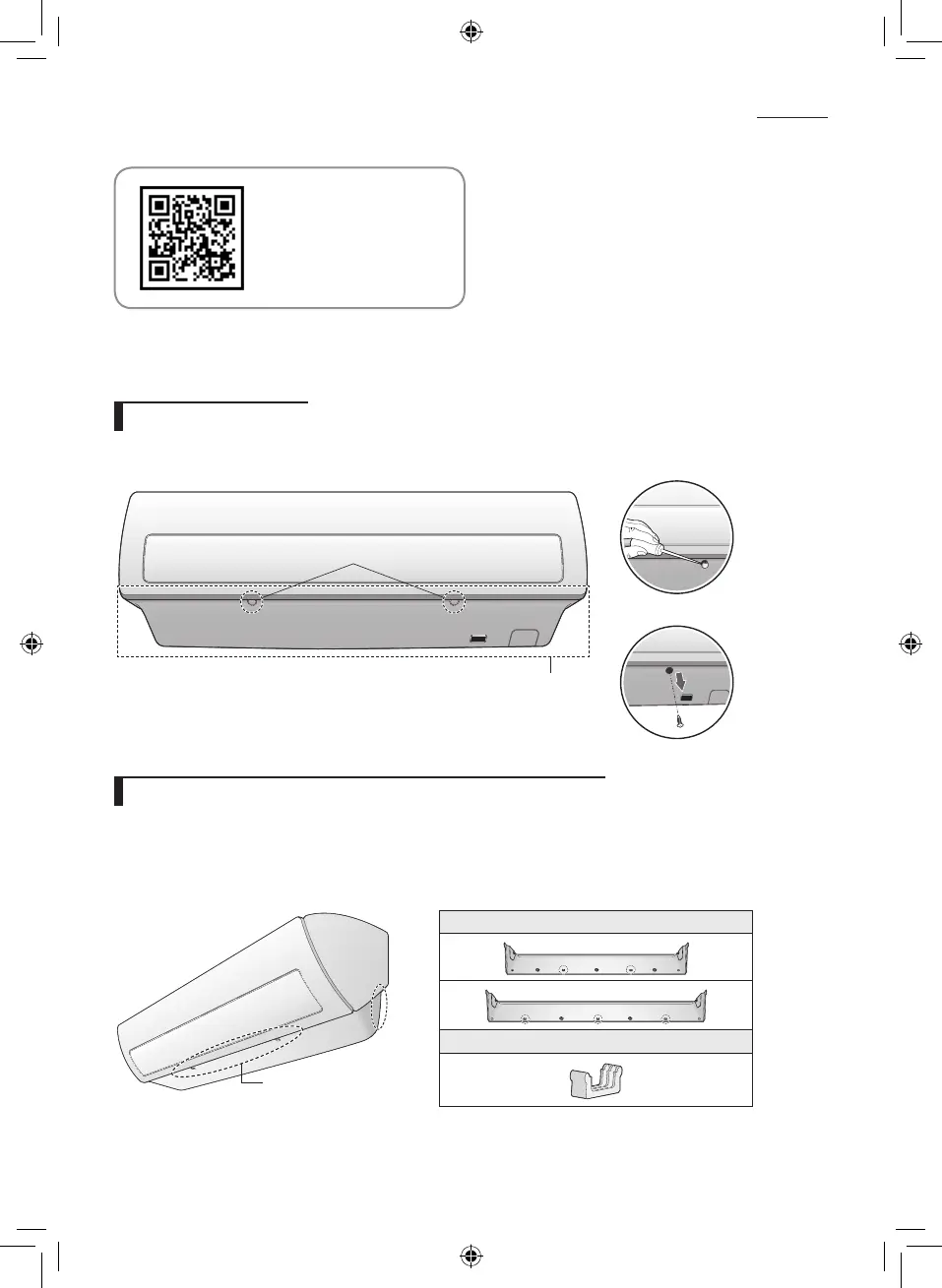

Disassembling/Assembling the Cover panel for indoor unit installation
In order to install the indoor unit, you must disassemble the cover panel rst. Please proceed following
instructions to disassemble and assemble the cover panel. Hooks (on the cover panel) may get damaged if you
apply excessive force as you disassemble and assemble the cover panel. Please follow the following instructions.
Removing the screws
Cover panel is assembled on the bottom part of the indoor unit (as shown in the illustration) and it is fastened
with screws. Remove the Cap screw rst and unfasten the screws so that you can disassemble the cover panel.
Cap Screw
<Remove the Cap screw>
<Unfasten the screw>
Cover Panel
Removing the Cover panel (Before mounting the indoor unit)
Cover panel is xed to a main body of the product with hooks on two sides and central part as shown in the
illustration. Release the hooks on the sides rst, and then release the hooks on the central part.
Check the location of the hooks before removing the cover panel.
Side
part
Central part
Please scan
this QR code for detail
video of indoor unit
installation.
f Location of the hooks on the central part
Number and location of the hooks
Hook
For specic Hook location and quantity, please
refer to cover panel with indicating arrows based
on physical goods.
English-36
