Owner’s Manual &
Installation Manual
Accessories

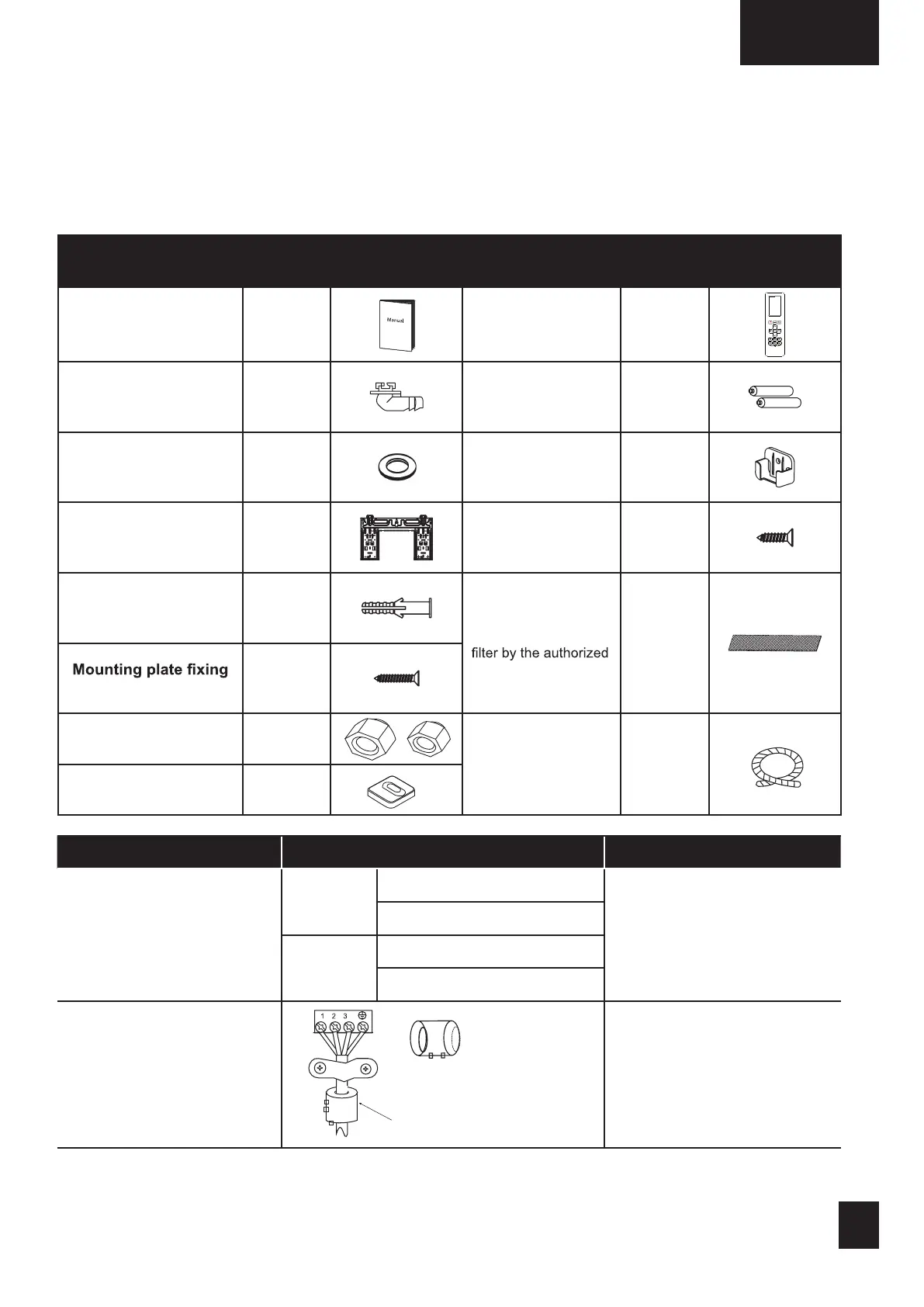

The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electrical shock and fire, or cause the equipment to fail. The items are not included
with the air conditioner must be purchased separately.
Name Shape Quantity (PC)
Connecting pipe assembly
Liquid side
ø6.35 (1/4 in) - 12K, 18K
Parts you must purchase
separately. Consult the dealer
about the proper pipe size of the
unit you purchased.
ø9.52 (3/8in) - 24K, 30K
Gas side
ø12.7 (1/2in) - 12K, 18K
ø15.9 (5/8in) - 24K, 30K
Magnetic ring and belt
(if supplied ,please refer
to the wiring diagram to
instal it on the connective
cable.)
Pass the belt through the
hole of the Magnetic ring
to fix it on the cable
Varies by model
Name of Accessories Q’ty (pc) Shape
Name of
Accessories
Q’ty (pc) Shape
Manual 2-3 Remote controller 1
Drain joint
(for cooling &
heating models)
1
Battery 2
Seal
(for cooling &
heating models)
1
Remote controller
holder (optional)
1
Mounting plate 1
Fixing screw for
remote controller
holder (optional)
2
Anchor
5~8
(depending
on models)
Small Filter
(Need to be installed
on the back of main air
technician while
installing the machine)
1~2
(depending
on models)
screw
5~8
(depending
on models)
Nut 2
4
1
Rubber leg
Water Hose
