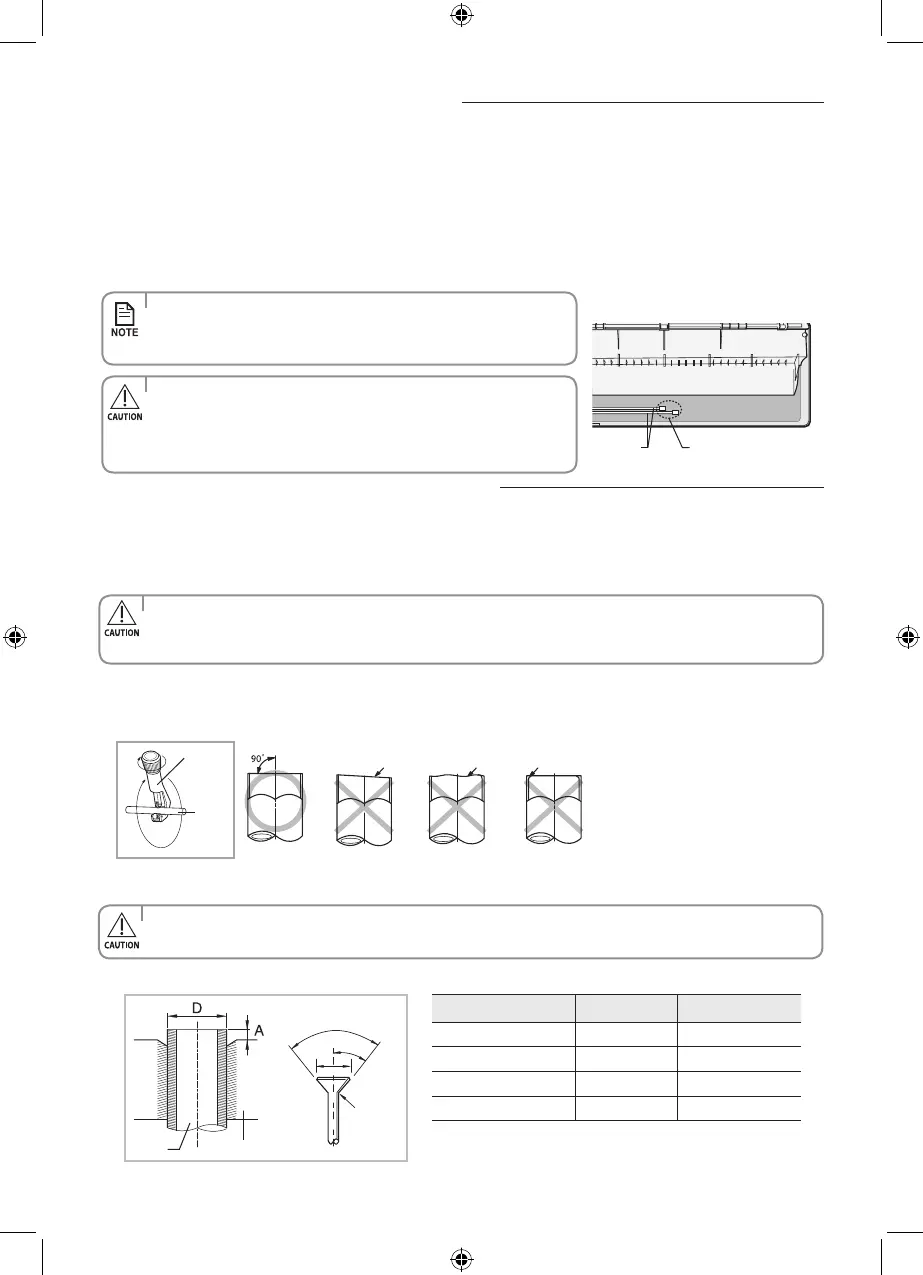

English-36
Evacuating the indoor unit
• TheremainingairintheRefrigerationcycle,whichcontainsmoisture,
may cause malfunction on the compressor.
• Alwayscontacttheservicecenteroraprofessionalinstallationagency
for product installation.
• Topreventdirtorforeignsubstancesfromgettingintothepipesduring
installation, do NOT remove the caps completely until you are ready to
connect the pipes.
Thelengthofthepipecanbe:
•Extendedupto:seetablepage28
•Shortenupto:seepage28
Ifyouneedapipelongerthan5meters:
• Youmustaddrefrigeranttothepipes;otherwise,theindoorunitmayfreeze.
Cutting or extending the pipe
1. Unscrew the caps at the end of each pipe.
All inert gas exhausts from the indoor unit.
The indoor unit is supplied with inert gas (nitrogen).
Before installing the unit, check if nitrogen gas ows out of indoor unit.
If this one isn’t true, DO NOT INSTALL THE UNIT since leakage could be inside the indoor unit.
1. Make sure that you have all the required tools (pipe cutter, reamer, aring tool and pipe holder).
2. If you want to shorten the pipe, cut it using a pipe cutter, ensuring that the cut edge remains at 90° with the side of the
pipe (see below examples of correct and incorrect cut edges).
3. To prevent a gas leak, remove all burrs at the cut edge of the pipe using a reamer.
Oblique Rough Burr
Pipe
cutter
Pipe
• Facethepipedownwhileremovingtheburrstomakesurethatburrsdonotgetintothepipe.
4. Put a are nut slightly into the pipe and modify the are.
Outer Diameter (D) Depth (A) Flaring Size (B)
ø6.35 mm 1.3 mm 8.7 - 9.1 mm
ø9.52 mm 1.8 mm 12.8 - 13.2 mm
ø12.70 mm 2.0 mm 16.2 - 16.6 mm
ø15.88 mm 2.2 mm 19.3 - 19.7 mm
Pipe Flare
90°± 2°
°
2
±°
5
4
R 0.4~0.8
B
Unscrew the capsPipes
