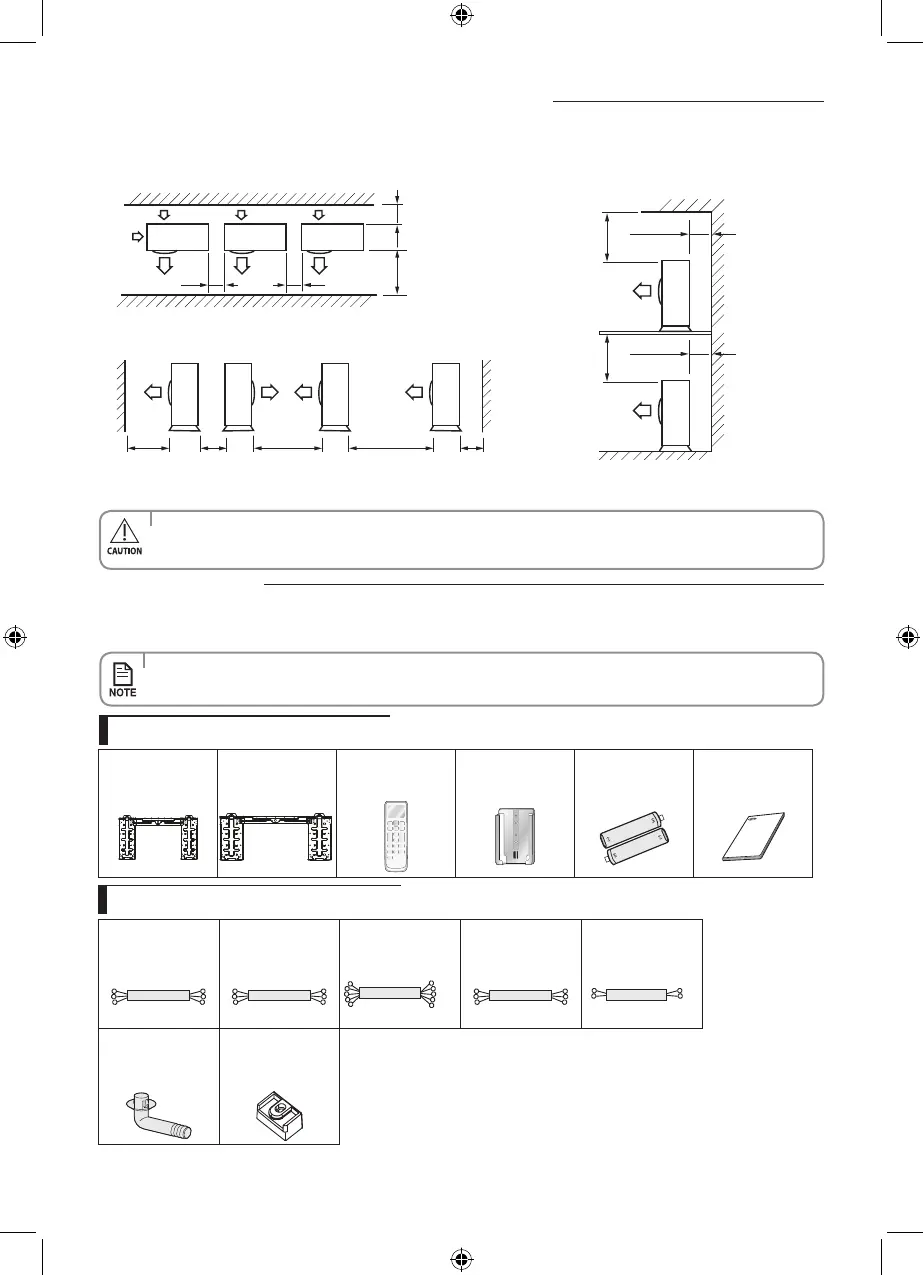

(Unit:mm)
When the upper part of the outdoor unit and
the air outlet is opposite the wall
When the walls are blocking front and the rear side of the outdoor
units
When front and rear side of the outdoor unit is towards the wall
500 or more
300 or more
500 or more
300 or more
300 or
more
1500 or
more
600 or more 600 or more
1500 or
more
600 or
more
3000 or
more
200 or
more
3000 or
more
• Ifinstallationisdoneininappropriatespace,unitmaygeneratesoundandcausebadeectontheproduct.
• Installationmustbedoneinlevelandinaplacewherevibrationwillnotcauseanyeect.
Accessories
Thefollowingaccessoriesaresuppliedwiththeairconditioner:
• Thenumberofeachaccessoryisindicatedinparentheses.
Accessories in the indoor unit case
Choosing the installation location
Accessories in the outdoor unit case
3-wire Power Cable (1)
3-wire Assembly Cable (1)
AS**U**
AS**JC/KC**
5-wire Assembly Cable (1)
AQ13**
AR13JP/KP
3-wire Assembly Cable (1)
AQ19/25**
AR19/25JP/KP
2-wire Assembly Cable (1)
AQ19/25**
AR19/25JP/KP
Drain Plug (1)
AQ**U**
AR**JP/KP**
Rubber Leg (4)
Installation Plate (1)
**13**
Installation Plate (1)
**19/25**
Remote controller
(1)
Remote Control
Holder (1)
Batteries for
Remote controller
(2)
User’s & Installation
Manual (1)
