English-36

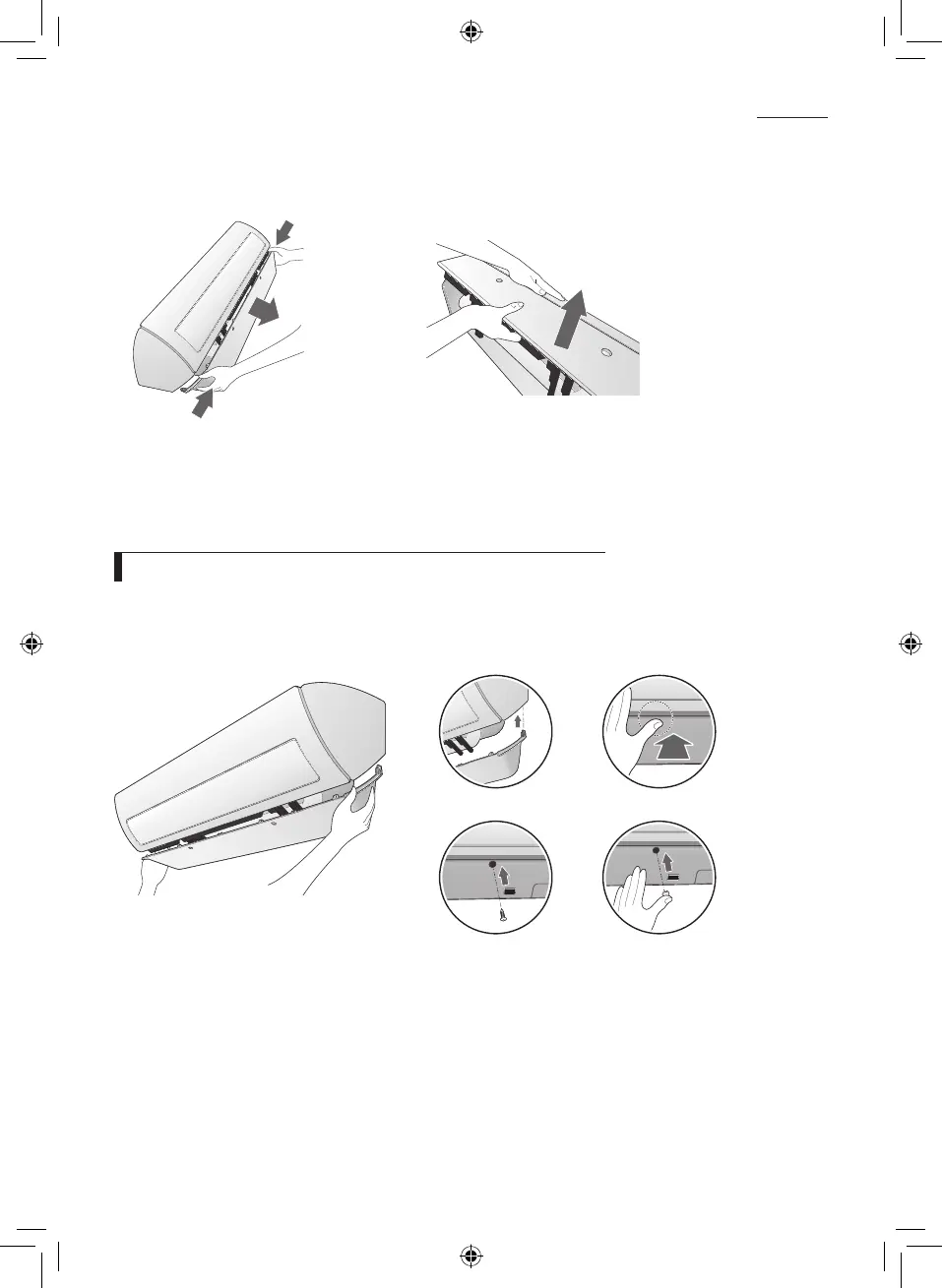

Disassembling/Assembling the Cover panel for indoor unit installation
f Removing the hooks on the side f Removing the hooks on the central part
Caution (fragile)
- Gently press the both side of the cover
panel inwards (①) and release the
hooks on both sides(②).
Caution (fragile)
- Use both hands
- Release each hook by pushing it up at an angle.
②
①
①
Assembling the Cover panel (After mounting the indoor unit)
To assemble the Cover panel, proceed in reverse order of disassembling.
Use both hands for assembling and be extra careful not to damage the pipes and drain hose.
Lock the side, center, and bottom hooks in this sequence. Tighten the bottom panel with the screws, and close
the screw holes with their cap.
<Lock the side hook>
<Fasten the screw>
<Lock the bottom hook>
<Assemble the Cap screw>
HC_GOOD_A3050_IB&IM_EN_DB68-04401A-00.indd 36 1/16/2014 9:16:56 PM
