English-33

INSTALLATION05

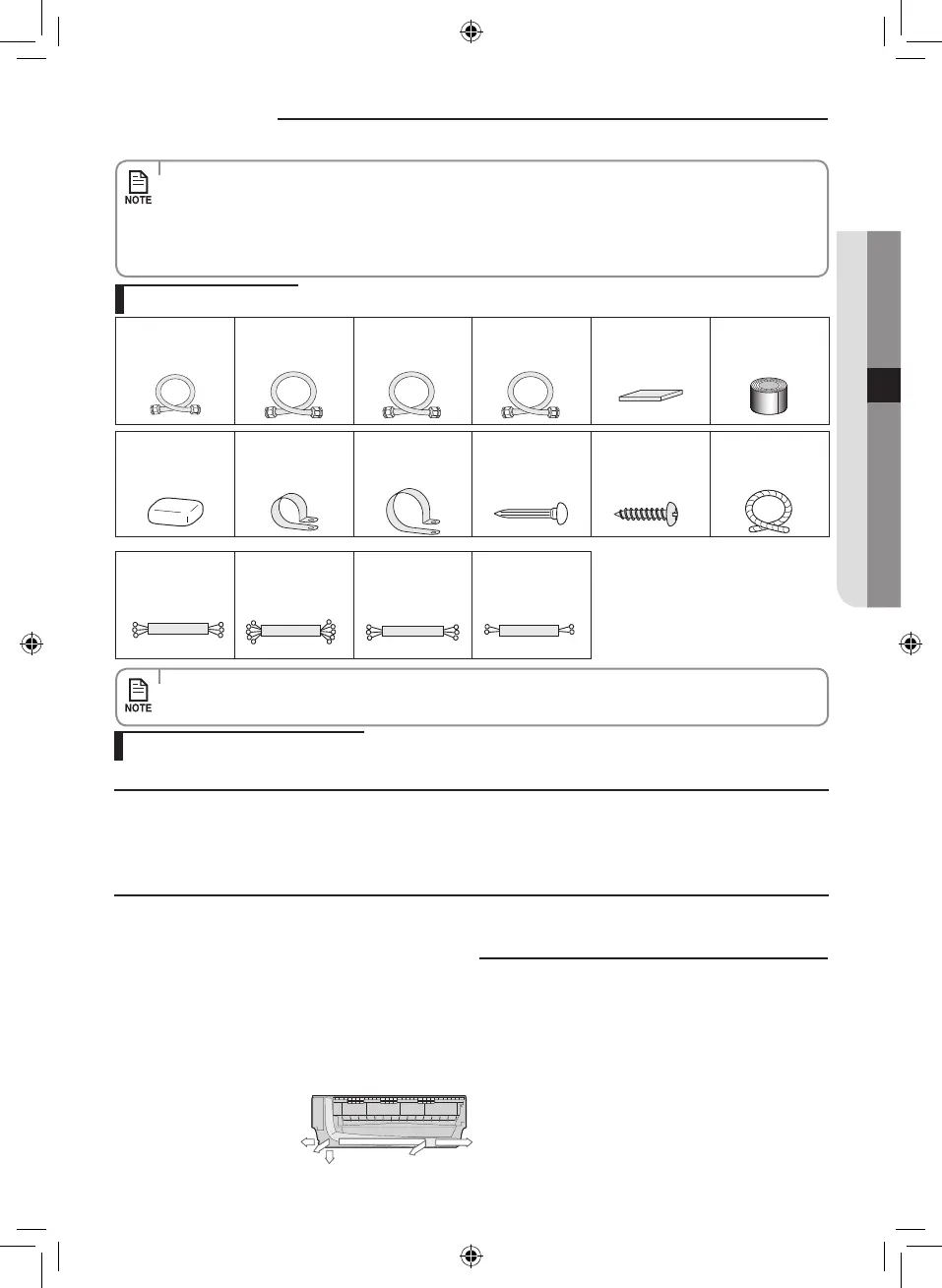

Optional accessories

• Thearenutsareattachedtotheendofeachpipeofanevaporatororaserviceport.

Use the nuts when connecting the pipes.

• Thewireassemblycableisoptional.Ifitisnotsupplied,usethestandardcable.

• Thedrainplugandrubberlegareonlyincludedwhentheairconditionerissuppliedwithouttheassemblypipe

as seen in the picture below.

• Iftheseaccessoriesaresupplied,theywillbeintheaccessorybox.

Insulated

Assembly Pipe,

Ø6.35 mm x 5 m (1)

Insulated Assembly Pipe,

Ø9.52 mm x 5 m (1)

✴✴

10HP

✴✴

Insulated Assembly Pipe,

Ø12.70 mm x 5 m (1)

✴✴

13/19

✴✴

Insulated Assembly Pipe,

Ø15.88 mm x 5 m (1)

✴✴

25

✴✴

PE T3 Foam Tube

Insulation (1)

Vinyl Tapes (2)

Putty 100 g (1) Pipe Clamps A (3) Pipe Clamps B (3) Cement Nails (6)

M4 x 25 Tapped

Screws (6)

Drain Hose,

length 2 m (1)

3-wire

Assembly Cable (1)

✴✴

HC

✴✴

5-wire

Assembly Cable (1)

✴✴

10/13HP

✴✴

3-wire

Assembly Cable (1)

✴✴

19/25HP

✴✴

2-wire

Assembly Cable (1)

✴✴

19/25HP

✴✴

Tools required for installation

General Tools

•VacuumPump(Backwardowingprevention) •ManifoldGauge •StudFinder

•TorqueWrench •PipeCutter •Reamer •PipeBender •SpiritLevel

•ScrewDriver •Spanner •Drill •LWrench •MeasuringTape

Tools for test operations

•Thermometer •ResistanceMeter  •Electroscope

Fixing the installation plate

You can select the direction of the drain hose depending on where you want to install the indoor unit. Therefore before xing

the installation plate to a wall or a window frame, you must determine the position of the 65mm hole through which the cable,

pipe and hose pass to connect the indoor unit to the outdoor unit.

Whenfacingthewall,thepipeandcablecanbeconnectedfromthe:

A

C

B

D

D

 Direction of pipe

 •Right(A)

 •Left(B)

 •Underside_right(C)

 •Rear_rightorleft(D)

Accessories

HC_GOOD_A3050_IB&IM_EN_DB68-04401A-00.indd 33 1/16/2014 9:16:50 PM
