English-45
INSTALLATION07

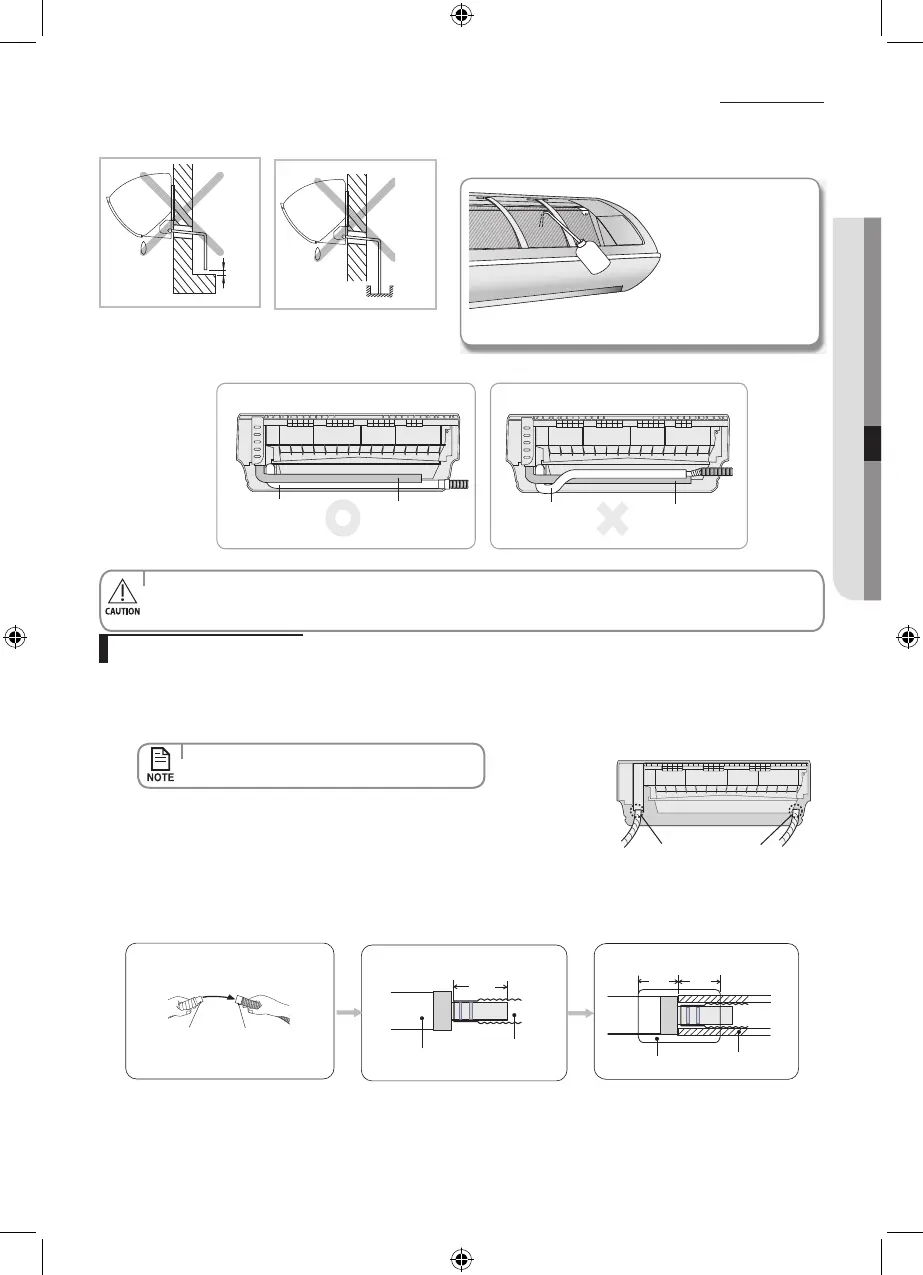

Installing and connecting the drain hose of the indoor unit
Keep a clearance of at least
5cm between the end of the
drain hose and the ground.
After completing the
installation of the drain
hose, pour water into
the drain pan to check
whether the hose is well
drained.
5cm
less
Do not place the end of the
drain hose in a hollow.
Ditch
Drain hose installation
1. If necessary, connect the 2 meter extension drain hose to the drain hose.
2. If you use the extension drain hose, insulate the inside of the extension drain hose with a shield.
3. Fit the drain hose into 1 of 2 drain hose holes, then x the end of the drain hose tightly with a clamp.
4. When extending the Drain Hose, hold the end of Drain Hose and Extended Hose,
rotate and insert the drain hose into Extended hose for 40~45 mm. Make sure
the two hoses are rmly connected, there is no water leakage.
5. Connect the Drain Hose after using Foam Insulation to wrap the Extended Hose. Then, Use vinyl tape to wrap the
each side of connection by 20 mm .
Drain hose
Extension
drain hose
Drain hose
Extension
drain hose
40~45 mm
Foam Insulation
20 mm
or more
20 mm
or more
Vinyl Tape
• Ifyoudonotusetheotherdrainhosehole,
block it with a rubber stopper.
Drain hose hole
• Don’ttiedrainhosetotheassemblypipewhichmayleadtowaterleakage.
• Ifthediameteroftheconnectionhoseissmallerthantheproduct'sdrainhose,waterleakagemayoccur.
1) Correct connection 2) Incorrect connection
Drain hose
Drain hosePipe
Pipe
