Outdoor Unit
Where it is not exposed to strong wind
Well ventilated and dustless places
Where possible keep out of sunlight and rain
Where neighbors are not annoyed by operation sound or hot air
Solid wall or support that prevents vibration and is strong enough to hold the product weight
Where there is no risk of ammable gas leakage
When installing the unit at a high place be sure to x the unit legs
3 m or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)
Install the unit horizontally
Placewheredrainedwaterdoesnotbecomeanyproblem.
Placewithnoplants(especiallyclimbingplants)andwheresmallanimalcannotaccess.
Outdoor unit should not be place higher than 2.4 m or directly under eaves for accessibility for service and OH&S reasons.
• Avoidthefollowingplacestopreventmalfunctionoftheunit
- Where there is machine oil - Salty environment such as seaside areas
- Where sulde gas exists - Other special atmosphere areas
The appearance of the unit may be dierent from the diagram depending on the model.

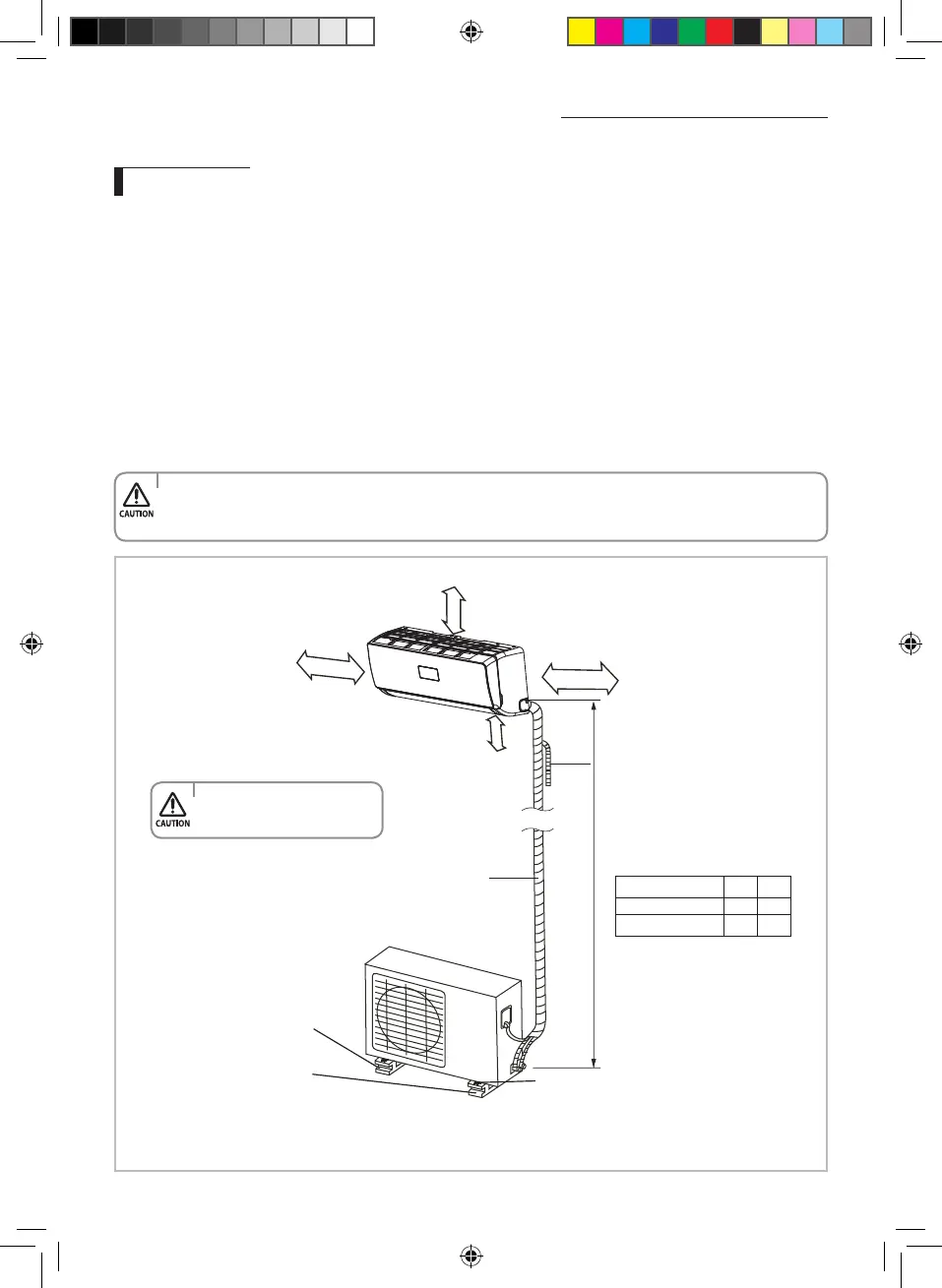

Choosing the installation location
120 mm or more
150 mm or more
Where there is a danger of the unit falling,
use foot bolts to fix.
Wrap the refrigerant pipes and the drain
hose with the absorbent pad and vinyl tape.
Refer to page 45 for further details.
In sites with poor drainage,
use block bases for outdoor unit.
Adjust its height until the unit is
leveled. Otherwise, water leakage or
pooling of water may occur.
Additional drain pipe
120 mm or more
2.3 m or more
' L' meters maximum
total pipe length
'H' meters maximum
total pipe height
Model L H
09/12/18
15 7
24
20 8
'L' m as maximum pipe length and
3 m as minimum pipe length.
(It will reduce noise and vibration)
English-30
