34
9

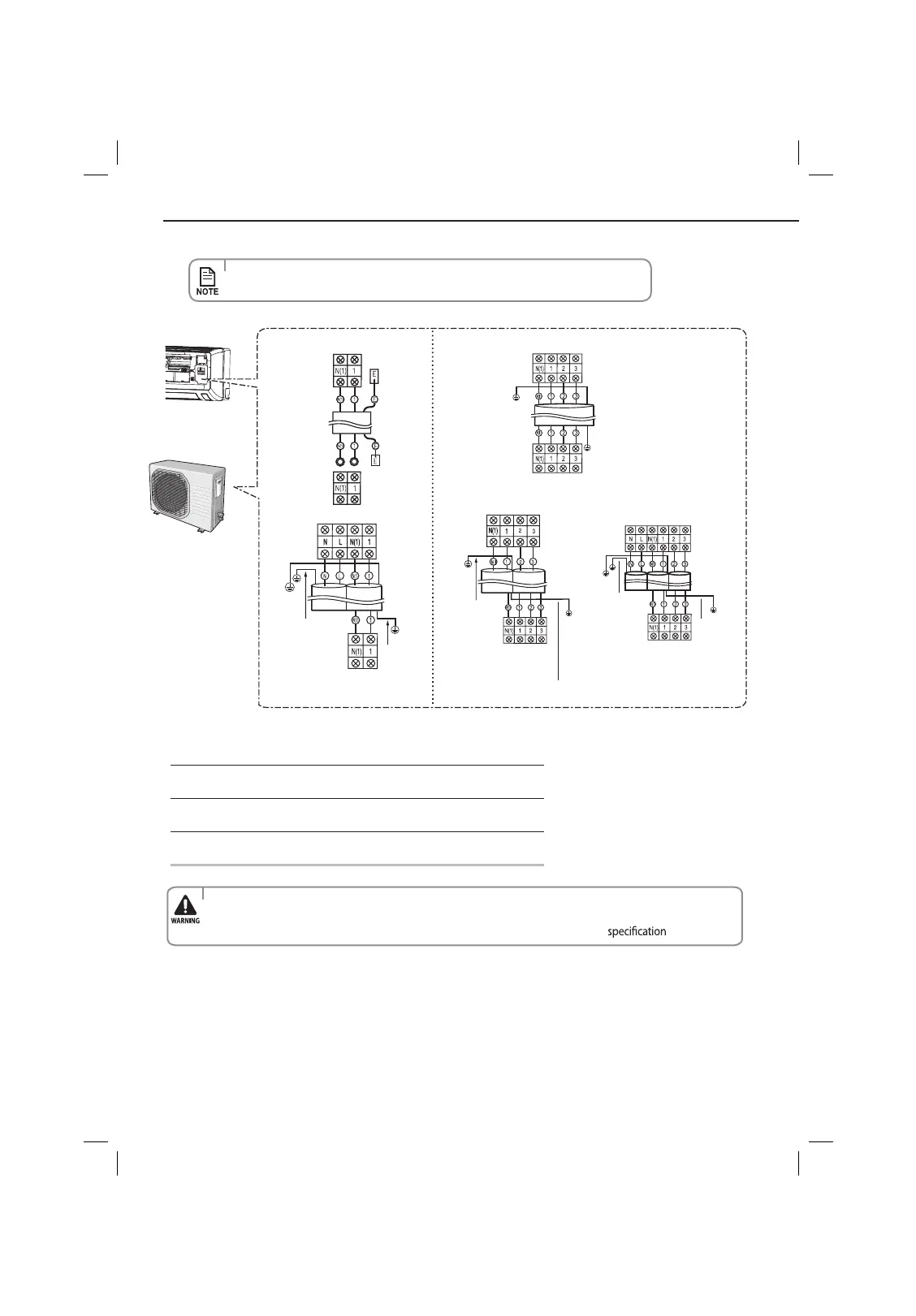

Connect the cables to the terminals as seen in the picture.
10
Connect the grounding conductor to the grounding terminals.
11
Close the terminal board cover, tightening the screw carefully.
12
Connect the power cable to the indoor unit.
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
AS09/12/13/18/19** AQ
09/12**
Indoor unit
Outdoor unit
GroundWire
(Green/Yellow)
GroundWire
(Green/Yellow)
AS24/25**
Indoor unit
Outdoor unit
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
• Each wire is labeled with the corresponding terminal number.
• Connect the wires according to color codes, referring to the wiring diagram.
• The power cable and the interconnection cable should be selected according to the
in page 33.
AQ24**
Indoor unit
Outdoor unit
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Indoor unit
Outdoor unit
GroundWire
(Green/Yellow)
Ground wire
(Green/Yellow)
AQ18**
