28

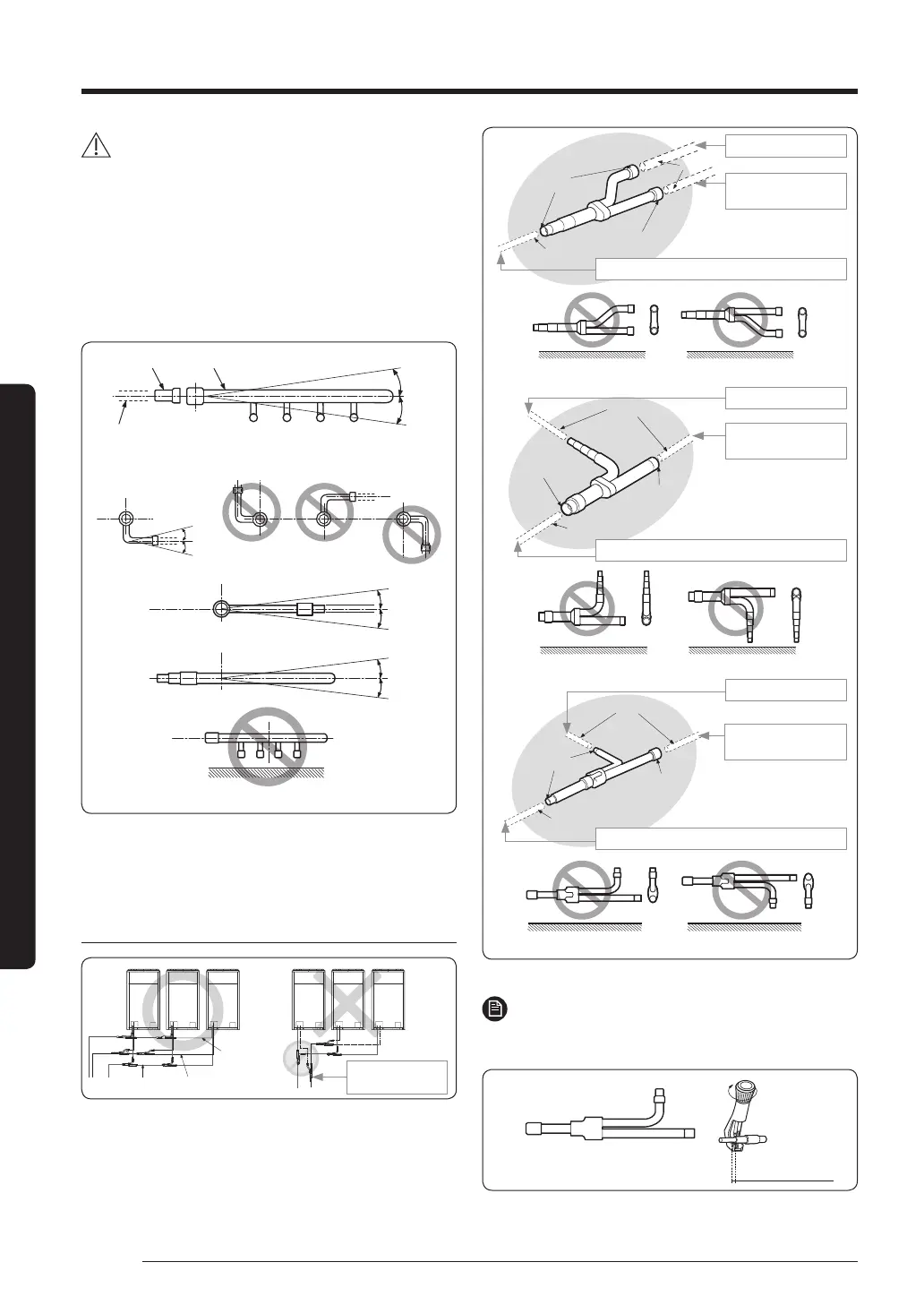

Refrigerant pipe installation
English
Installation Procedure
CAUTION
• Connect the indoor units in order, while respecting the
direction of the arrow shown in the illustration.
• When indoor units are connected to same distribution head,
indoor unit must be connected in order of their capacity, from
largest to smallest.
• Keep unused port from ① to avoid oil trap.
1 Install the distribution header horizontally.
– Install the distribution header horizontally so that its ports
does not face down.
Below
±10°
Horizon
line
Socket Distribution header
Pipe
(Separately purchased item)
Below
±15°
Horizon line
Horizon line
< Liquid side >
< Gas side >
Below ±15°
Horizon line
Below ±10°
Horizon line
Installing the branch joint between
outdoor units
Installation of outdoor joints
Do not install the outdoor
joint in this direction.
Liquid pipe
High pressure
gas pipe
Gas pipe
※ High pressure gas pipe only applies to the H/R product.
<Liquid side>
Pipe
Reducer
Reducer
Pipe
To other outdoor unit
To other outdoor joint or Y-joint of the main pipe
To other outdoor joint
or outdoor unit
<Gas side>
Pipe
Reducer
Reducer
Pipe
To other outdoor joint or Y-joint of the main pipe
To other outdoor joint
or outdoor unit
To other outdoor unit
Pipe
Reducer
Reducer
Pipe
To other outdoor unit
<High pressure gas side>
To other outdoor joint
or outdoor unit
To other outdoor joint or Y-joint of the main pipe
※ Use the attached reducer according to the selected pipe size.
NOTE
• Connect the Outdoor joint to the pipe by cutting the outlet of the
Outdoor joint or provided reducer properly.
10~15 mm or more
