English

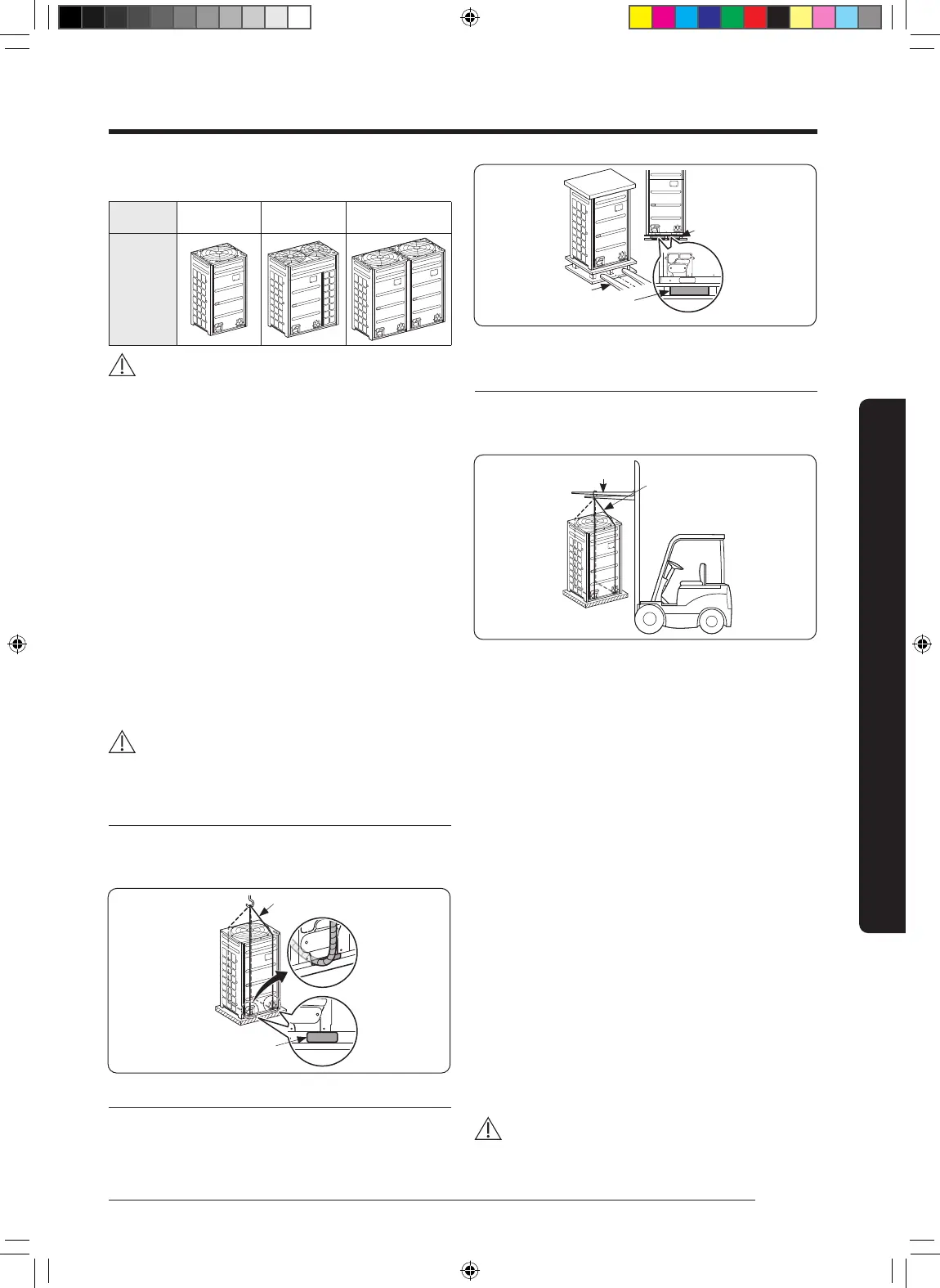

Installation Procedure
Preparations for Outdoor Unit
Installation Procedure
Outdoor unit classification
Classification
DVM S2
Small type
DVM S2
Large type
DVM S2
X-Large type
Appearance
CAUTION
Packaging material disposition
• Safely store or dispose the packaging materials.
– Sharp metals such as nails or wooden material packaging
that may break into pieces become a cause for personal
injury.
– Make sure to store or dispose the vinyl type packaging
material to keep it out of reach of children. Children may
put them over their face, which is very dangerous since it
may lead them to suffocation.
Moving the outdoor unit
• Select the moving path in advance.
• Be sure that moving path can support weight of the outdoor unit.
• Do not slant the product more than 30˚ when carrying it. (Do
not lay the product down in sideways.)
• Surface of the heat exchanger is sharp. Be careful not to get
injured while moving the product.
• When transporting DVM S2 outdoor, be aware of the center
of gravity of the outdoor (Please refer to the center of
gravity label attached on the front panel, and remove it after
installation. )
CAUTION
• You must use certain part of the product when moving the
product.
When moving with a crane
• Fasten the wire rope as shown in the figure.
• To protect damage or scratches, insert a piece of cloth between
the outdoor unit and the wire rope.
Holes for wire rope to go through
Wire rope
When moving with a forklift
• Carefully insert the forklift forks into the forklift holes at the
bottom of the outdoor unit.
• Be careful with the forklift from damaging the product.
Forklift
Holes for forklift forks
to go through
Forklift holes
When moving the product without wooden
pallet and the crane is not available for use
• Connect a wire rope to the outdoor unit as you would move it
with a crane.
• Hang the wire rope to the forklift fork to move the outdoor unit.
Wire rope
Forklift
Outdoor unit combination
• Make sure to use an indoor unit that is compatible with DVM S2.
• Indoor units can be connected within the range indicated in
following table.
• If the total capacity of the connected indoor units exceeds the
indicated maximum capacity, cooling and heating capacity of
the indoor unit may decrease.
• Total capacity of the connected indoor units can be allowed
from 50% to 130% of the total outdoor unit capacity. 0.5 ×
Σ(Outdoor unit capacity) ≤ Total capacity of the connected
indoor units ≤ 1.3 × Σ(Outdoor unit capacity)
• Please contact your local Samsung representative or refer
to the Technical Data Book for further details if the project
requires you to design the project with a connection ratio
greater than 130 %.
• You can connect maximum 64 indoor units to the outdoor unit.
Maximum quantity of connectable indoor unit is set to 64 since
outdoor unit only support up to 64 communication address.
Indoor unit address can be assigned from 0~63. If the indoor
unit address was assigned from 64~79, E201 error will occur.
• Maximum 32 Wall-mount type indoor units with EEV
(AM****NQD*, AM****NVD*) can be connected.
• Do not install 1st-generation MCU and 2nd-generation MCU
together.
– 1st-generation MCU: MCU-S*NEE*N, MCU-S2NEK1N
– 2nd-generation MCU: MCU-S*NEK2N, MCU-S4NEK3N,
MCU-S1NEK1N
CAUTION
• Use the following table to determine the size and number of
outdoor units needed to achieve thecapacity requirements.
