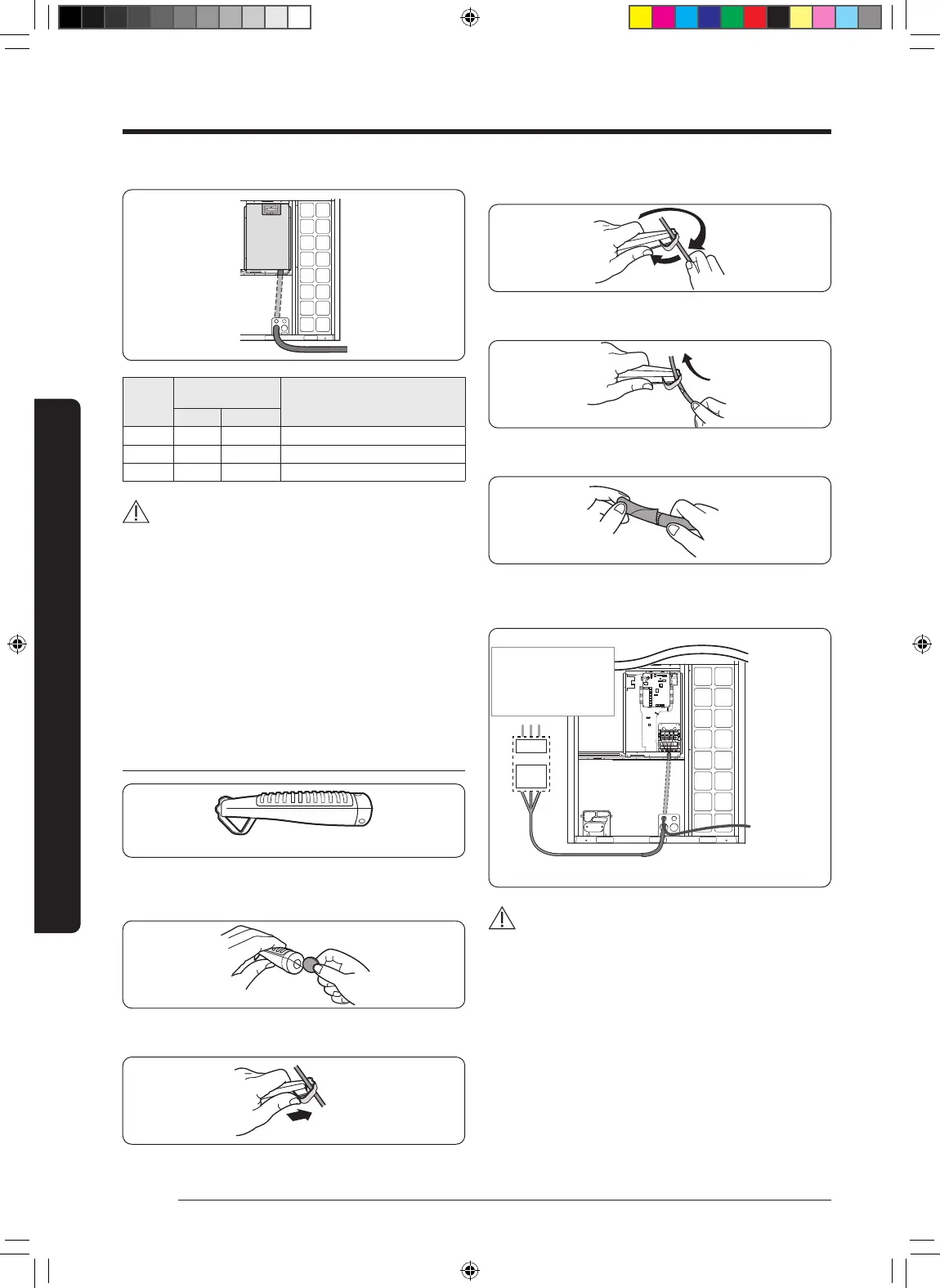

36
Electrical wiring work
English
Installation Procedure
2 Closing the cover
Screw
Tightening torque for
terminal
Remarks
N·m lbf·ft
M3.5 0.78~1.18 0.6~0.9 communication cable
M4 1.2~1.8 0.9~1.3 Single phase 208~230V power cable
M8 5.5~7.3 4.1~5.4 3 phase 208~230V / 460V power cable
CAUTION
• When removing the outer sheath of the power supply cable, be
careful not to scratch the inner sheath of the cable.
• Make sure that more than 20mm (0.79 inch) of the outer
sheath of the indoor unit power and communication cable are
inside the electrical component box.
• Install the communication cable separately from power cable
and other communication cables.
• There is a risk of electric shock when power is applied. Close
the cover of the control box before proceeding to work.
• To inspect the compressor or PBA, first make sure to turn off
the system. Electricity may flow even in a compressor that has
not been used recently. Exercise caution to protect yourself
from an electric shock.
Examples of how to use the cable striper
<Cable striper>
1 Adjust the blade position by coin. (Controller is at the bottom
side of the tool.) Fix the blade position according to the outer
sheath thickness of the power cable.
2 Fix the power cable and tool by using the hook at the top side
of the tool.
3 Cut out the outer sheath of the power cable by revolving the
tool in the direction of the arrow, two or three times.
4 At this situation, cut out the outer sheath of the power cable by
moving the tool toward the direction of the arrow.
5 Slightly bend the wire and pull out the cut part of the outer
sheath.
Fixing the power cable
3 phase 3wires 208-230V
[AM****XV*F*]
3 phase 3wires 460V
[AM****XV*J*]
Sub unit
communication
cable
ELCB
MCCB+
ELB
or
CAUTION
• Do not let the power cable come into contact with the pipes
inside the outdoor unit. If the power supply cable touches
the pipes, the vibration of the compressor is transferred to
the pipes and can damage the power supply cables or pipes,
creating the danger of fire or explosion.
• Make sure that the place where the sheath of power supply
cable is removed is inside the power supply box. If it is
impossible, you should connect the protection tube for power
cable to the power supply box.
• After arranging the power cable into the power supply box,
tighten the cover.
