34
Electrical wiring work
English
Installation Procedure

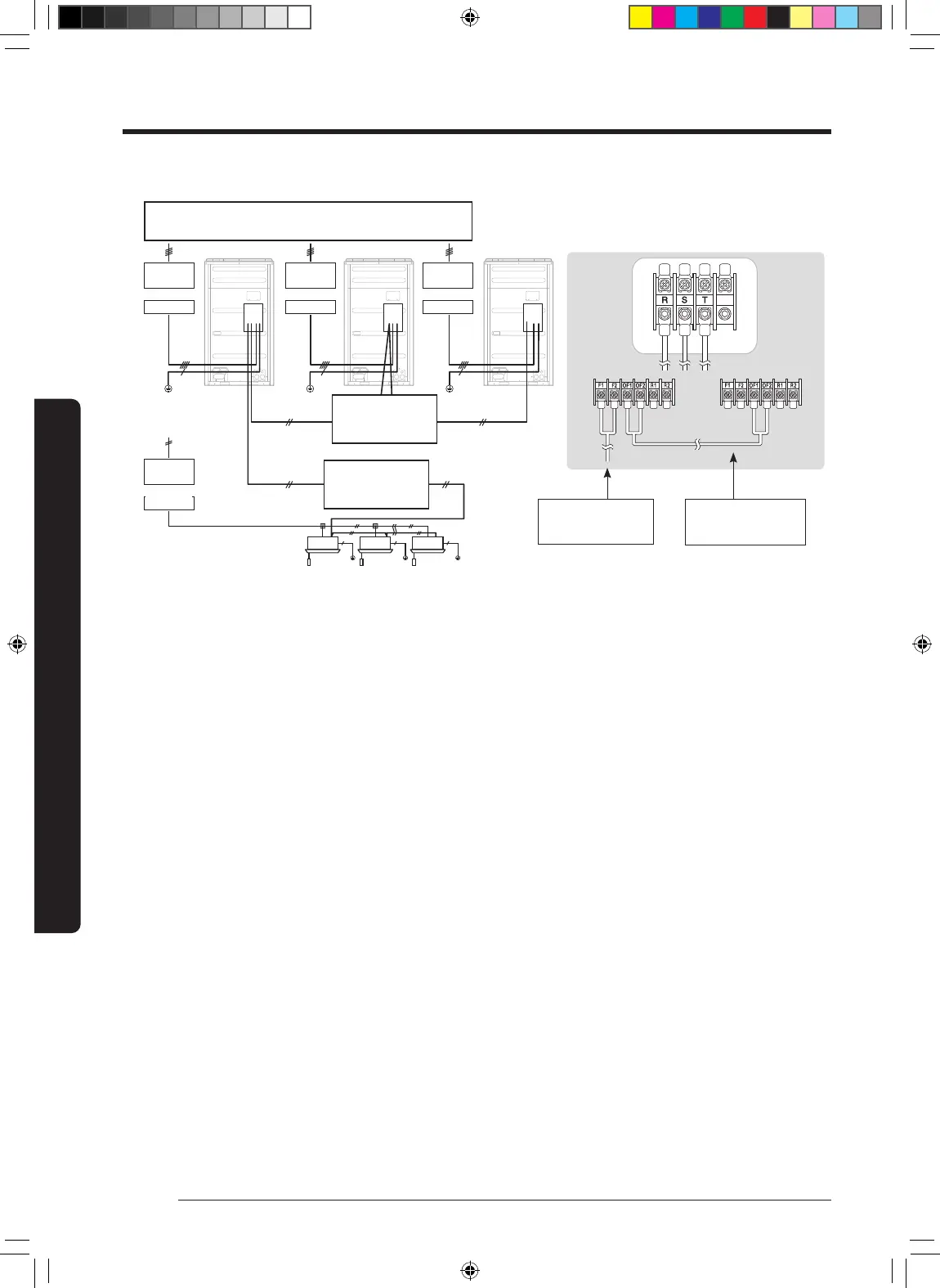

Power wiring diagram
3 phase 3wires 208-230V [AM****XV*F*]
3 phase 3wires 460V [AM****XV*J*]
MCCB+
ELB
MCCB+
ELB
MCCB+
ELB
MCCB+
ELB
ELCB
ELCB
ELCB ELCB
Main unit Sub unit
Main unit Sub unit 1 Sub unit 2
Single phase 2
wires 208-230V
Grounding Grounding Grounding
Wired remote
controller
Wired remote
controller
Communication
cable (Outdoor unit ~
Outdoor unit)
Communication
cable (Outdoor unit ~
Indoor unit)
Wired remote
controller
or
or
or or
Communication cable
(Outdoor unit ~ Indoor
unit)
Communication cable
(Outdoor unit ~ Outdoor
unit)
• Connect a power cable of the outdoor unit after checking that R-S-T (3 phase 3 wire) is properly connected.
• Malfunction may occur if one or more of the wires among R-S-T phases (3 Phases-3 Wires) are not connected properly.
(*Malfunction: Turning on/off, occurrence of error, consecutive reset)
• Communication cable between indoor and outdoor units and communication cable between outdoor units has no polarity.
• Arrange the cables with a cable tie.
※ ELCB and ELB must be installed since there is risk of electric shock or fire when they are not installed.
