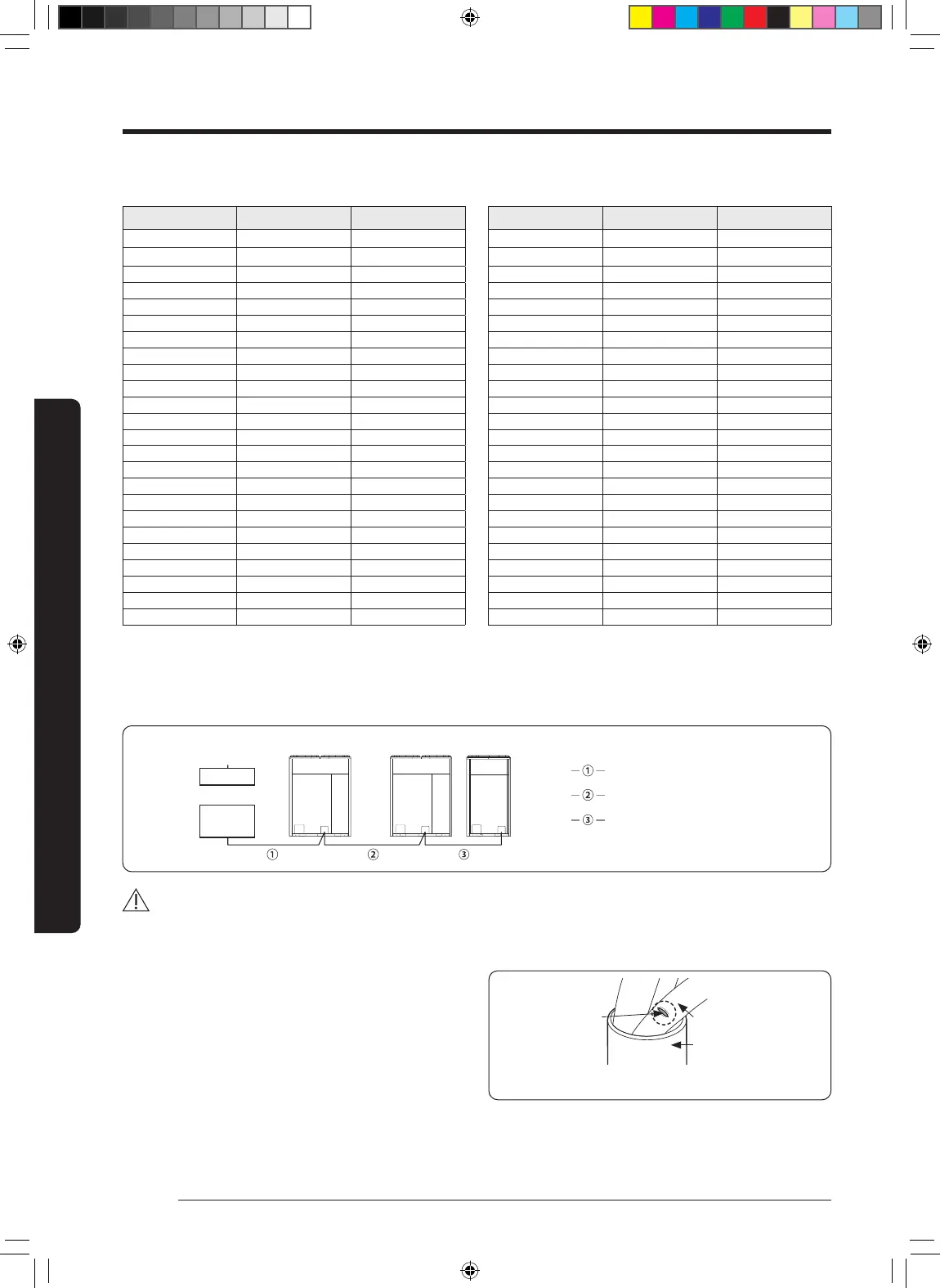

Installation Procedure
CAUTION
• Caution for electrical work
– You must install ELCB or MCCB + ELB
– ELCB: Earth leakage breaker
– MCCB: Molded case circuit breaker
– ELB: Earth leakage breaker
– Do not operate the outdoor unit before completing the
refrigerant pipe work.
– Do not disconnect or change the cable inside the product. It
may cause damage to the product.
– Specification of the power cable is selected based on
following installation condition; culvert installation/ ambient
temperature 30℃ (86℉)/ single multi conductor cables. If the
condition is different from the ones stated, please consult an
electrical installation expert and re-select the power cable.
– If the length of power cable exceed 50m (164.04ft),
re-select the power cable considering the voltage drop.
– Use a power cable made out of incombustible material for
the insulator (inner cover) and the sheath (outer cover).
– Do not use the power cable with the core wire exposed
due to insulator damage occurred during removal of the
sheath. When the core wire is exposed, it may cause fire.
Insulator (inner cover)
Exposed wire core
<The example of exposed core wire>
Sheath (outer cover)
Specification of the circuit breaker and power cable
Model MCA MFA Model MCA MFA
AM080CXVAFH 28.0 40 AM160CXVAJH 28.0 35
AM100CXVAFH 34.0 50 AM180CXVAJH 35.0 50
AM120CXVAFH 37.0 50 AM200CXVAJH 38.0 50
AM140CXVAFH 50.0 63 AM220CXVAJH 41.0 50
AM160CXVAFH 52.0 63 AM240CXVAJH 45.0 50
AM180CXVAFH 60.0 75 AM260CXVAJH 49.0 63
AM200CXVAFH 64.0 75 AM280CXVAJH 50.0 63
AM220CXVAFH 68.0 75 AM300CXVAJH 55.0 63
AM240CXVAFH 71.0 80 AM320CXVAJH 58.0 75
AM260CXVAFH 73.0 80 AM340CXVAJH 61.0 75
AM080CXVAFC 28.0 40 AM080CXVAJC 1 7.4 20
AM100CXVAFC 34.0 50 AM100CXVAJC 18.8 25
AM120CXVAFC 37.0 50 AM120CXVAJC 20.6 25
AM140CXVAFC 50.0 63 AM140CXVAJC 26.2 35
AM160CXVAFC 52.0 63 AM160CXVAJC 28.0 35
AM180CXVAFC 60.0 75 AM180CXVAJC 35.0 50
AM200CXVAFC 64.0 75 AM200CXVAJC 38.0 50
AM220CXVAFC 68.0 75 AM220CXVAJC 41.0 50
AM240CXVAFC 71.0 80 AM240CXVAJC 45.0 50
AM260CXVAFC 73.0 80 AM260CXVAJC 49.0 63
AM080CXVAJH 17.4 20 AM280CXVAJC 50.0 63
AM100CXVAJH 18.8 25 AM300CXVAJC 55.0 63
AM120CXVAJH 20.6 25 AM320CXVAJC 58.0 75
AM140CXVAJH 26.2 35 AM340CXVAJC 61.0 75
• When installing outdoor units in module, select the power supply cable according to the sum of outdoor unit capacity. (Refer to the
table for each model)
• Power Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord. (Code
designation IEC:60245 IEC 66 / CENELEC: H07RN-F)
Ex.) AM500
*
XV
***
AM120*XV*** : 4 mm
2
AM280*XV*** : 16 mm
2
AM500*XV*** : 35 mm
2
AM220*XV*** AM160*XV*** AM120*XV***
ELCB
MCCB+ ELB
or
Electrical wiring work
