30

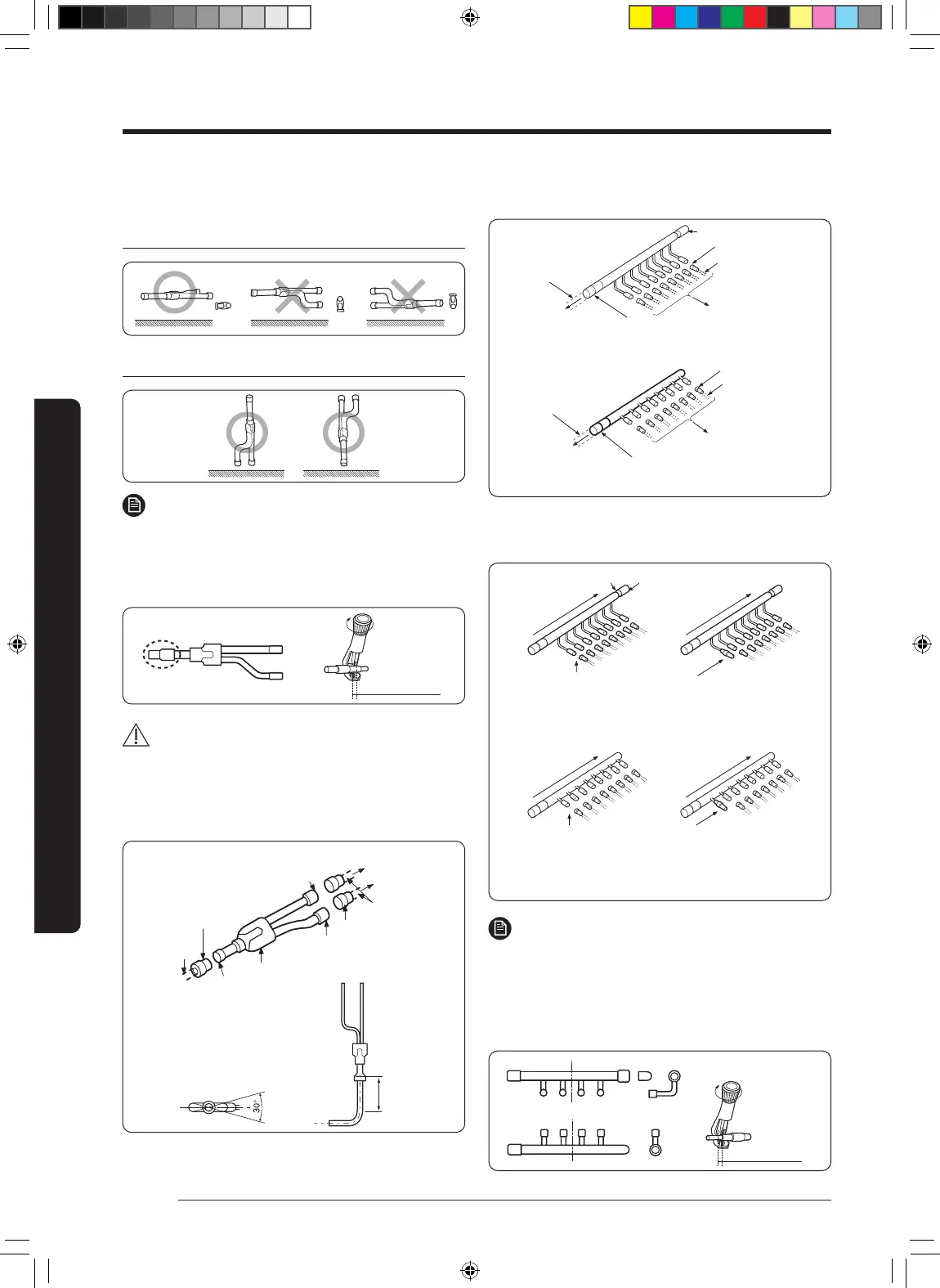

Refrigerant pipe installation
English
Installation Procedure
Installing the branch joints
Branch joints must be installed ‘horizontally’ or ‘vertically’.
Horizontal installation
Vertical installation
NOTE
• For A~J type branch joints : Connect the branch joint to the
connection pipe with the provided reducer.
• For K~Z type branch joints : Cut the connection part of the
branch joint or the provided socket, according to the diameter
of the connection pipe, before connecting them.
Over 10~15mm
(0.39~0.59inch)
CAUTION
• Install the branch joint within ±15° of the horizon or vertical line.
• Make sure that the pipe is not bent at where it is connected to
the branch joint.
• Keep a minimum straight line distance of 500mm (20inch) or
more before connecting branch joint.
Minimum
straight line
(over 500mm
(20inch))
Connect to
indoor unit
Pipe
Before branching
After branching
After branching
Gas side/Liquid side branch joint
Pipe connection
Socket
Connect to other
branch joint or
indoor unit
Socket
※ Install within ±15° of the horizon or vertical line.
Installing the distribution header
1 Select the reducer that fits the diameter of the pipe.
<Gas side>
Socket
Pipe *
To indoor unit
Pipe*
Socket
To outdoor unit
<Liquid side>
Socket
Pipe*
To indoor unit
Pipe*
Socket
To outdoor unit
Provided item
※ Pipe : Separately purchased item
2 If the number of connected indoor unit is fewer than ports on
the distribution header, block the unused ports with caps.
<Liquid side>
Install
Case of blocking the unused distribution
header ports.
* Keep unused port from ① to avoid oil trap.
Install indoor units from largest to
smallest capacity, starting at the inlet of
the header.
Connect in
order
①
⑧
Connect in
order
Welding part
Provided item
Install
Case of blocking the unused distribution
header ports.
* Keep unused port from ① to avoid oil trap.
Install indoor units from largest to
smallest capacity, starting at the inlet of
the header.
①
⑧
<Gas side>
Connect in
order
Connect in
order
NOTE
• For A~J type distribution header :
Connect the distribution header to the connection pipe with
the provided reducer.
• For K~Z type distribution headers :
Cut the provided socket, according to the diameter of the
connection pipe, before connecting it.
Over 10~15mm
(0.39~0.59inch)
DB68-11976A-00_IM_DVM S2 Outdoor_SA_EN_.indd 30DB68-11976A-00_IM_DVM S2 Outdoor_SA_EN_.indd 30 2022-09-13 오전 9:34:152022-09-13 오전 9:34:15
