25
English
Installation Procedure

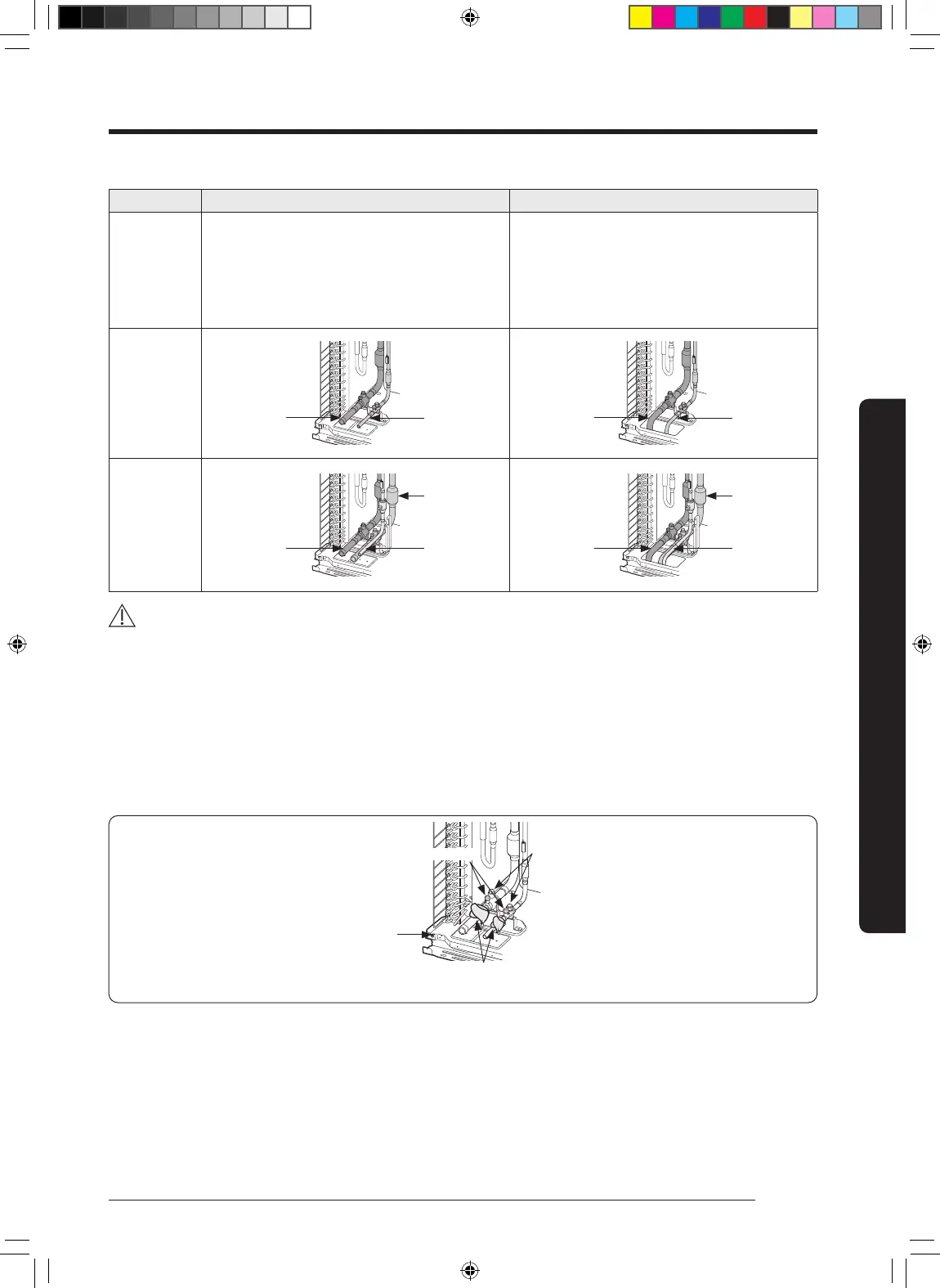

2 Connecting refrigerant pipe for outdoor unit
Classification Front side connection Right/left (and bottom) side connection
Working process
• First, remove the piping cover from the outdoor unit.
• Separate the knock-out hole that you are going to use. If
you separate the knock-out hole that is going to be unused,
small animals such as squirrels and rats may get into the unit
through the hole.
• Fix the bottom side of the piping cover first and then fix the
top part of it.
• Separate the knock-out hole at the bottom side of the unit
and install the pipe.
• After installing and insulating the pipe, close up the remaining
holes. If not, small animals such as rats and squirrels may get
inside the unit.
H/P
Liquid side pipe Gas side pipe
Liquid side pipe Gas side pipe
H/R
Liquid side pipe
High pressure
gas pipe
Low pressure
gas pipe
Liquid side pipe
High pressure
gas pipe
Low pressure
gas pipe
CAUTION
• Caution for welding the pipe to an outdoor unit
– When welding the pipe, the unit may get damaged by the heat and flame from welding. Use a flame proofing cloth to protect the
unit from a welding fire or flame. Sensor for detecting outside temperature is located on the left side of the welding part so be
extra careful not to damage the sensor when welding.
– The O-ring and Teflon packing inside service valve may get damaged by the heat from welding. Wrap the bottom side of the
service valve with a wet cloth and weld it as shown in the illustration. Also, water dripping from the wet cloth may interrupt the
welding. Make sure the water does not drip from the wet cloth.
– Make sure that connected pipes does not interrupt each other or make contact with the product. (Vibration may cause damage to
the pipes.)
– When removing the sealed pipe on the bottom side of the service valve, cut it with a pipe cutter first and then start the welding.
When the sealed pipe is welded without cutting, you may get injured by the refrigerant within the pipe.
< H/P >
Temperature
sensor
Wet towel
Service port
Service valve
