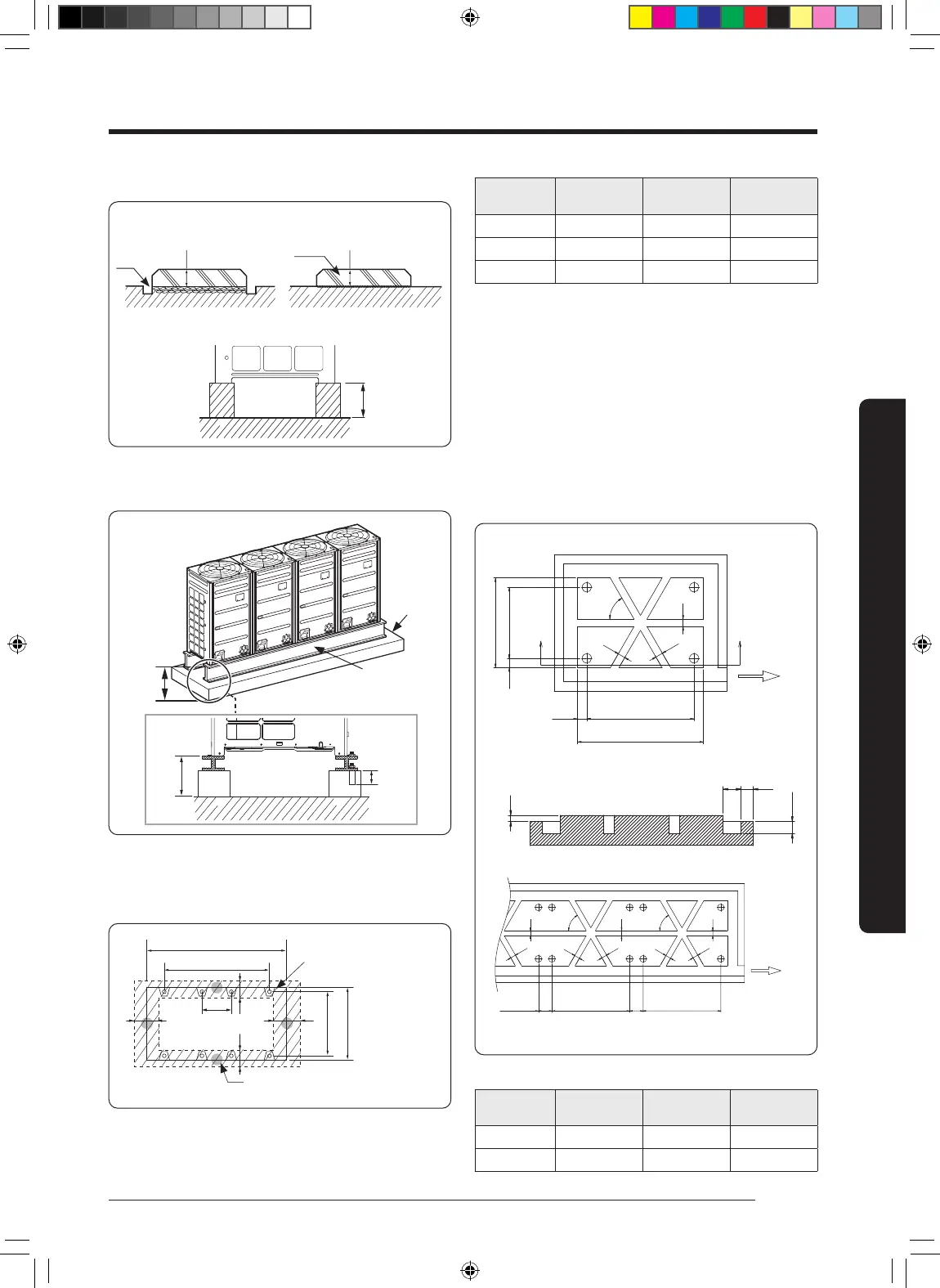

Installation Procedure
Base ground construction
Unit : mm (inch)
<When installing on the ground>
Draining pit
Over 200 (8)
<When installing on the roof>
Bottom surface of the base ground
must be horizontally leveled
Over 200 (8)
Over 200 (8)
Outdoor unit installation
Unit : mm (inch)
Base
ground
H beam or anti-
vibration frame
Over
200 (8)
Over 200 (8)
Over 50 (2)
Outdoor unit base mount and anchor
bolt position
A
B
C
54
(2.13)
730 (28.75)
765 (30.12)
54
(2.13)
Outdoor unit - Anti-vibration
frame [4/8-Φ12(0.47)]
Anti-vibration - Base ground
[4-Φ18(0.71)]
Unit : mm (inch)
Unit : mm (inch)
Classification
DVM S2
Small type
DVM S2
Large type
DVM S2
X-Large type
A 930 (36.6) 1295 (51) 1860 (73.2)
B 790 (31.1) 1155 (45.5) 1720 (67.7)
C - - 150 (5.9)
Refer to the blueprints in technical data book to make a holes
for connecting the anti-vibration pad.
Examples of draining work
Construct the drainage ditch with reinforced concretes and
make sure that water-proofing work is done.
For smooth draining of defrost water, make sure to apply 1/50
slope.
Construct a drainage around the outdoor unit to prevent
the defrost water (from the outdoor unit) from stagnating,
overflowing or freezing near the installation space.
When the outdoor unit is installed on the roof, check the
strength and waterproof status of the roof.
Unit : mm (inch)
960 (37.80)
760 (29.92)100 (3.94)
80 (3.15)
80 (3.15)
80 (3.15)
60°
120 (4.73)
X
X’
Direction of
the drainage
(Slope 1/50)
<Drainage work for single installation>
B
A
50 (1.97)
100
(3.94)
150 (5.91) 100 (3.94)
<X-X’ SECTION>
80
(3.15)
80
(3.15)
80
(3.15)
80
(3.15)
80
(3.15)
80
(3.15)
80
(3.15)
80
(3.15)
60°
60°
240
(9.45)
B B
240
(9.45)
Direction
of the
drainage
(Slope 1/50)
<Drainage work for module installation>
Unit : mm (inch)
Classification
DVM S2
Small type
DVM S2
Large type
DVM S2
X-Large type
A 1030 (40.6) 1395 (54.9) 1960 (77.2)
B 790 (31.1) 1155 (45.5) 1720 (67.7)
DB68-11976A-00_IM_DVM S2 Outdoor_SA_EN_.indd 13DB68-11976A-00_IM_DVM S2 Outdoor_SA_EN_.indd 13 2022-09-13 오전 9:34:052022-09-13 오전 9:34:05
