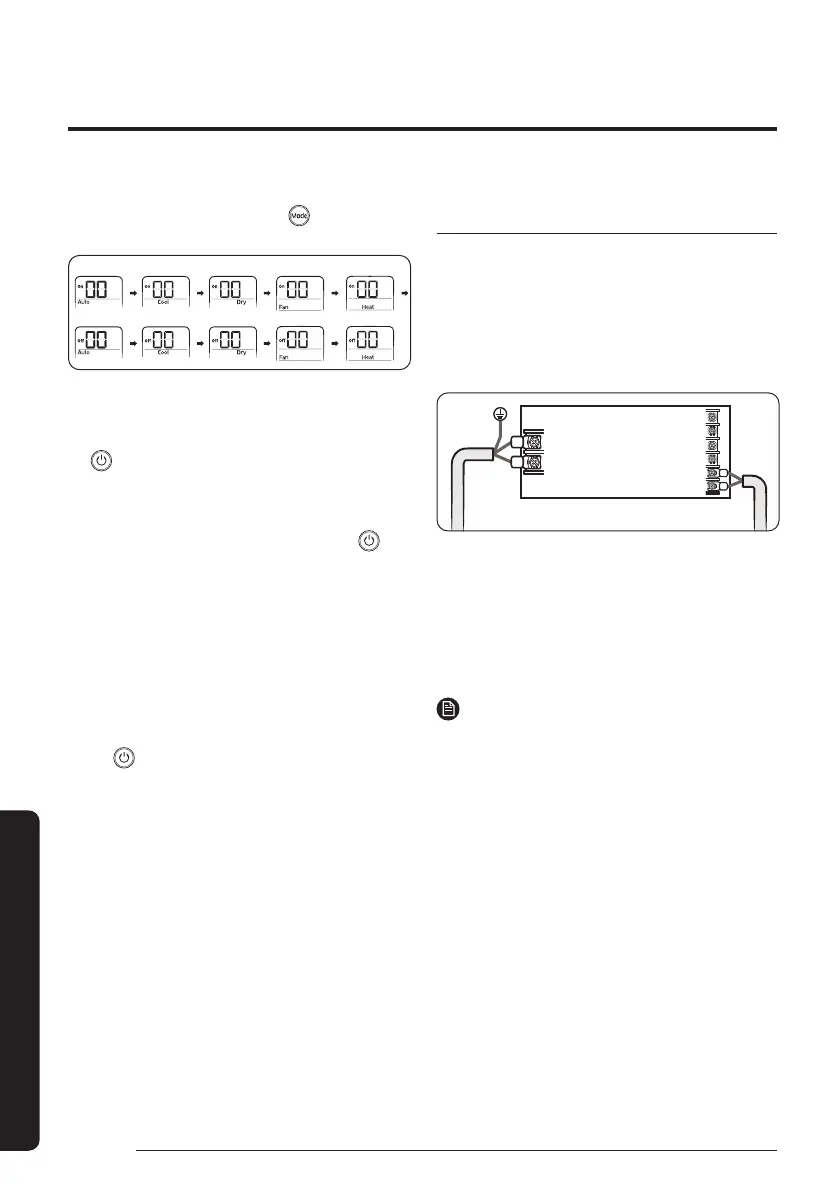

Installation Procedure

English

Installation Procedure

3 Check whether the option values that you have

set are correct by pressing the (Mode) button

repeatedly

[SEG2, SEG3]

[SEG14, SEG15]

[SEG4, SEG5]

[SEG16, SEG17]

[SEG6, SEG8]

[SEG18, SEG20]

[SEG9, SEG10]

[SEG21, SEG22]

[SEG11, SEG12]

[SEG23, SEG24]

4 Save the option values into the indoor unit:

Point the remote control to the remote control

sensor on the indoor unit and then press the

(Power) button on the remote control twice.

Make sure that this command is received by

the indoor unit. When it is successfully received,

you can hear a short sound from the indoor unit.

If the command is not received, press the

(Power) button again.

5 Check whether the air conditioner operates in

accordance with the option values you have set:

a Reset the indoor unit by disconnecting and

then reconnecting the power cable of the

indoor unit or by pressing the RESET button

on the outdoor unit.

b Remove the batteries from the remote

control, insert them again, and then press the

(Power) button on the remote control.

Setting the indoor unit addresses

(MAIN/RMC/MCU)

1 Make sure that the power is supplied to the

indoor unit.

• If the indoor unit is not plugged in, it must

include a power supply.

2 Make sure that the panel or display is connected

to the indoor unit so that it can receive options.

Indoor unit

1(L)

2(N)

3 Set an address (MAIN/RMC/MCU port) for each

indoor unit using the remote control, according

to your air conditioning system plan.

• The indoor unit addresses (MAIN/RMC/MCU

port) are set to 0A0000-100000-200000-

300000 by default.

NOTE

• Also set the MCU and Indoor units address by

using Add-on → Change address on S-NET Pro 2.

(For more information, see the S-NET Pro 2 Help.)

• From SEG13 to SEG18 is for setting MCU address.

– MCU models that can set address:

MCU-S*NEK2N, MCU-S4NEK3N, MCU-S1NEK1N
