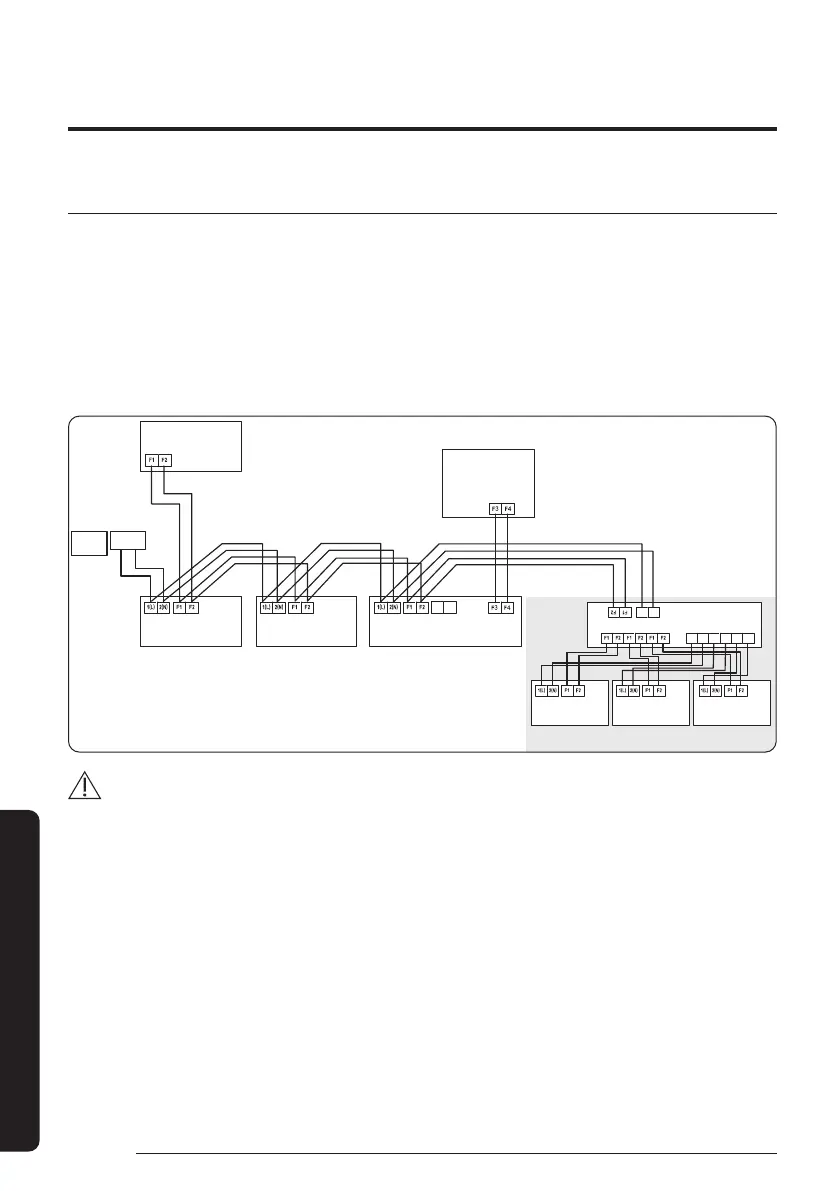

Power and communication cable connection
1 Before wiring work, you must turn off all power source.
2 Indoor unit power should be supplied through the breaker( ELCB or MCCB+ELB ) separated by the outdoor power.
ELCB : Earth Leakage Circuit Breaker
MCCB : Molded Case Circuit Breaker
ELB : Earth Leakage Breaker
3 The power cable should be used only copper wires.
4 Connect the power cable{1(L), 2(N)} among the units within maximum length and communication cable(F1, F2) each.
5 Connect F3, F4(for communication) when installing the wired remote control.
N L
N L N L N L
V1 V2
Indoor Unit 1
Indoor Unit 2
Indoor Unit 3
Indoor Unit 4 Indoor Unit 5
Indoor Unit 6
Outdoor Unit
Wired Remote
Control
EEV kit
※
Ceiling, wall-mounted indoor unit.
220-240V~
or
※
ELCB : Essential Installation
MCCB+
ELB
ELCB
WARNING
• Power off before connecting any wires; Indoor PBA will be damaged while V1,V2,F3,F4 short each other.
Wiring work
