Installation
Pre-Installation
Xf Before installation, carefully check the following.
1) Unit should be installed in accordance with national and local safety standard, local plumbing and wastewater
standard and any other applicable standard.
2) For rooftop installation, be sure the structure has enough strength to support the weight of unit. Unit should be
installed on roof curb and leveled.
3) For ground level installation, a level slab should be used.
4) Condenser airflow should not be restricted.
5) On applications when a roof curb is used, the unit must be positioned on the curb so the front of the unit is tight
against the curb.
Xf All units require certain clearance for proper operation and service. Refer to Fig. 1 for the clearances required for
construction, servicing and proper unit operation.
Clearance
Xf All units require certain clearance for proper operation and service. Refer to Fig 1 for the clearances required for
construction, servicing and proper unit operation.

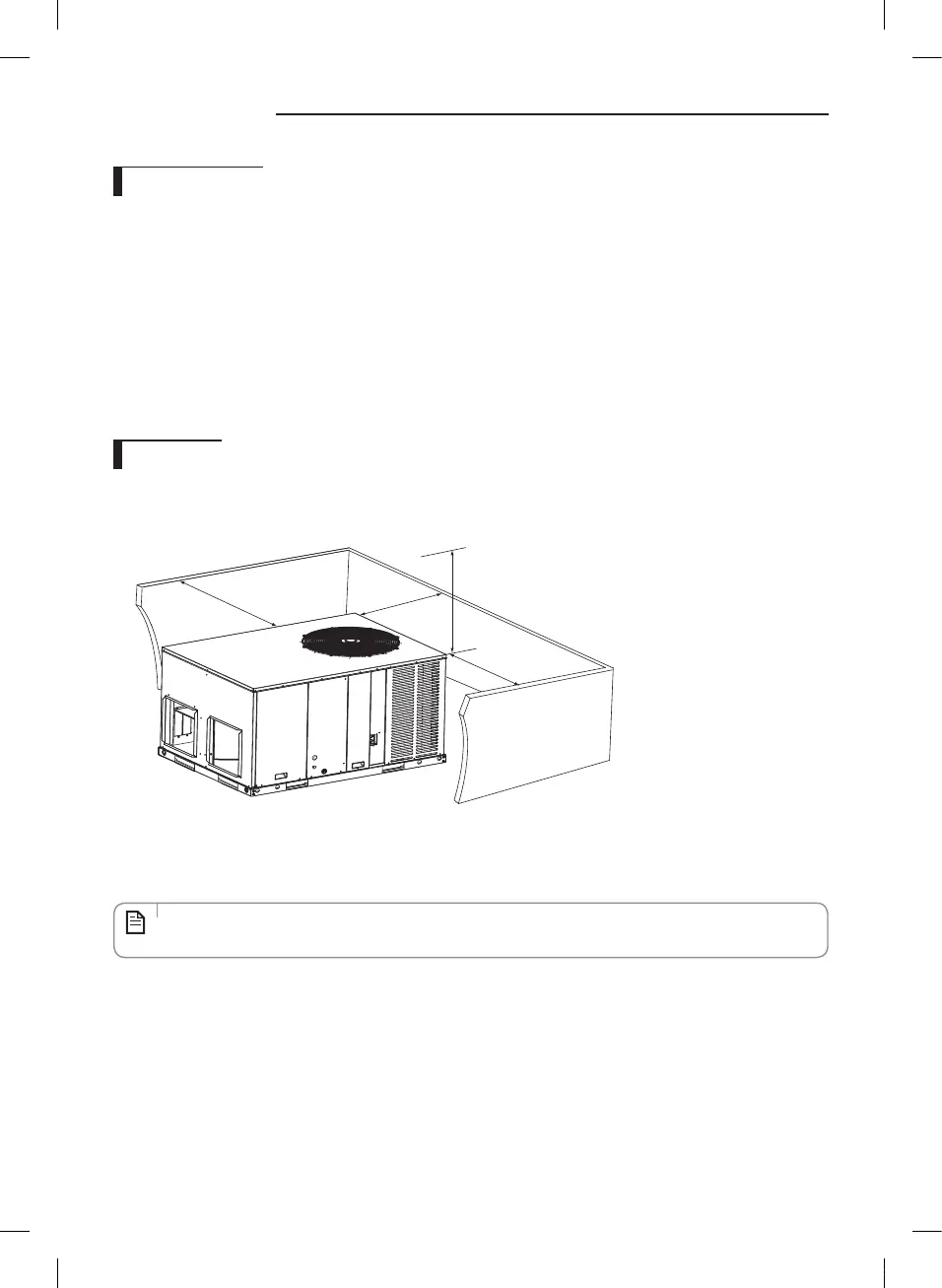

<Fig. 1>
≥ 800mm
≥ 800mm
Overhead air Clearance ≥ 3000mm
≥ 500mm
Xf Duct clearance: 1 inch clearance for all sides of air supply duct.
1) Units must be installed in outdoor. Over hanging structure or shrubs should not obscure condenser air discharge
outlet.
2) Units may be installed on combustible floors made from wood or class A, B or C roof covering materials.
• For units applied with a roof curb, the minimum clearance may be reduced from 25mm to 13mm between
combustible roof curb material and this supply air duct.
NOTE
INSTALLATION
ENGLISH-20
