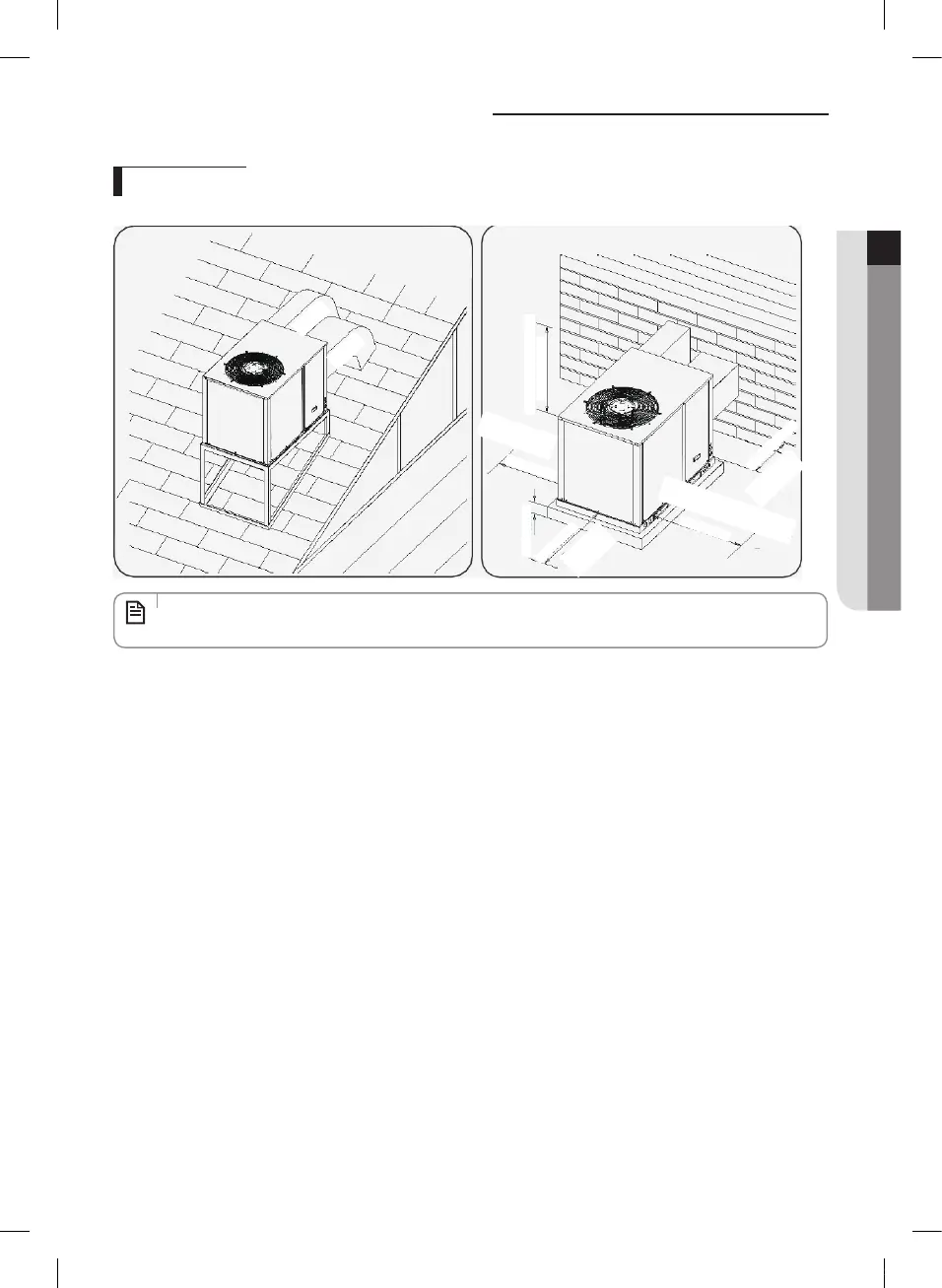

Viewing your air conditioner
Rooftop type
The rooftop and ground installation are optional.
Return
Supply
Overhead clearance
To service coil
and clean filter
To service electrical controls
and indoor blower
≥ 23000mm
≥ 23000mm
To connect
drain piping
≥ 100mm
≥ 800mm
≥ 800mm
≥ 500mm
To supply
air for coil
• Your air conditioner may look slightly different from the illustration shown above depending on your model.
NOTE
ENGLISH-13
01 PREAPARATION
