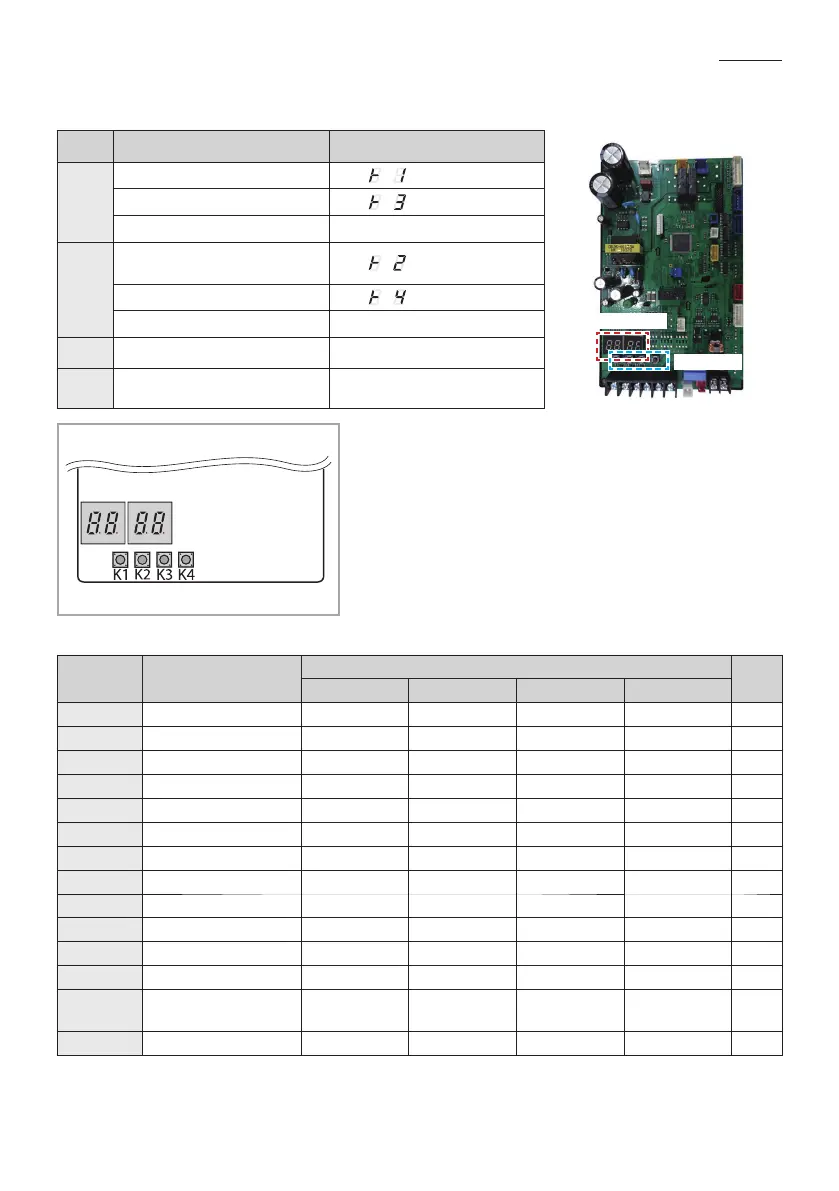

Setting the option switch and function of the keys
3. Press K1 or K2 on the outdoor unit PCB to run the test mode and stop.
KEY
KEY operation
7-segment display
7-segment display
KEY (K1~K4)
K1
Press once : Heating test run
"
" " " "BLANK" "BLANK"
Press twice : Defrost test run
"
" " " "BLANK" "BLANK"
Press 3times : Finishing test mode
-
K2
Press once : Cooling test run
(Heating Only : skip)
"
" " " "BLANK" "BLANK"
Press twice : Output signal test run
"
" " " "BLANK" "BLANK"
Press 3 times : Finishing test mode
-
K3
Reset
-
K4
View mode
Refer to View mode display
4. View Mode : When the K4 switch is pressed, you can see information about our system state as below.
Number of
press
Display contents
Display
Units
Segment 1 Segment 2 Segment 3 Segment 4
0 Communication State 10s digit of Tx 1s digit of Tx 10s digit of Rx 1s digit of Rx -
1 Order frequency 1 100s digit 10s digit 1s digit Hz
2 Current frequency 2 100s digit 10s digit 1s digit Hz
3 Pump output 3 100s digit 10s digit 1s digit %
4 Outdoor air sensor 4 +/- 10s digit 1s digit °C
5 Discharge sensor 5 100s digit 10s digit 1s digit °C
6 Eva in sensor 6 +/- 10s digit 1s digit °C
7 Inlet water sensor 7 +/- 10s digit 1s digit °C
8 Outlet water sensor 8 +/- 10s digit 1s digit °C
9 Cond sensor 9 +/- 10s digit 1s digit °C
10 Current A 10s digit 1s digit First decimal A
11 Fan RPM B 1000s digit 100s digit 10s digit rpm
12
Target discharge
temperature
C 100s digit 10s digit 1s digit °C
13 EEV D 1000s digit 100s digit 10s digit step
