ENGLISH-31

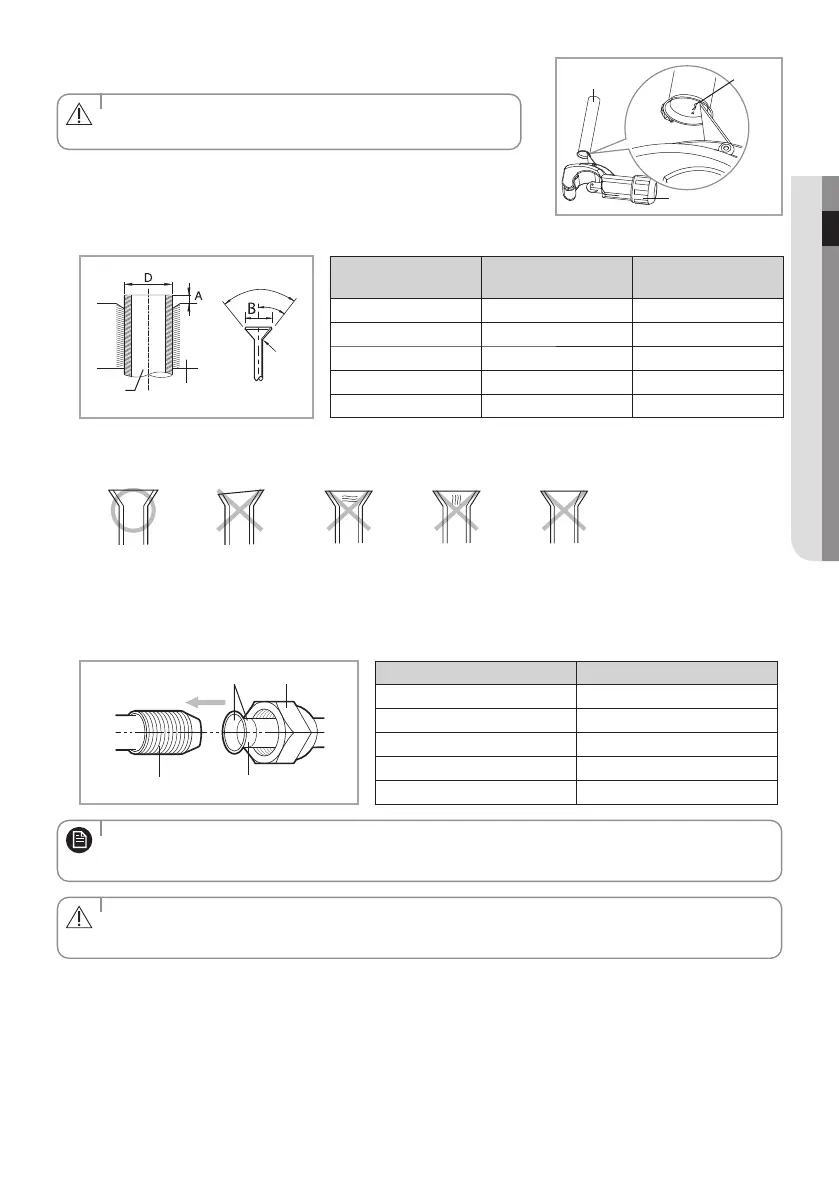

02 INSTALLATION
3. To prevent a gas leak, remove all burrs at the cut edge of the pipe with a reamer.
• Face the pipe down while removing the burrs to make sure that
burrs do not get in to the pipe.
CAUTION
Pipe cutter
Pipe
Burr
4. Put a are nut slightly into the pipe and modify the are.
90°± 2°
45°±2°
R 0.4
~0.8
Pipe Flare
Outer diameter
[D(mm)]
Depth [A (mm)] Flaring Size [B (mm)]
ø 6.35 1.3 8.7~9.1
ø 9.52 1.8 12.8~13.2
ø 12.70 2.0 16.2~16.6
ø 15.88 2.2 19.3~19.7
ø19.05 2.2 23.6~24.0
5. Check that you ared the pipe correctly.
- Below gures shows some examples of incorrectly ared pipes.
Correct Inclined
Damaged
surface
Cracked
Uneven
thickness
6. Align the pipes to connect them easily. Tighten the are nuts rst with your hands, and then with a torque wrench,
applying the following torque:
Indoor outlet pipe Connecting pipe
Flare nut
Apply frozen oil
Outer diameter [mm(inch)] Torque (N•m)
ø 6.35 (1/4") 14~18
ø 9.52 (3/8") 34~42
ø 12.70 (1/2") 49~61
ø 15.88 (5/8") 68~82
ø19.05 (3/4") 100~120
• Excessive torque can be cause of gas leakage.
NOTE
• You must purge with oxygen free nitrogen while brazing.
CAUTION
