ENGLISH-26

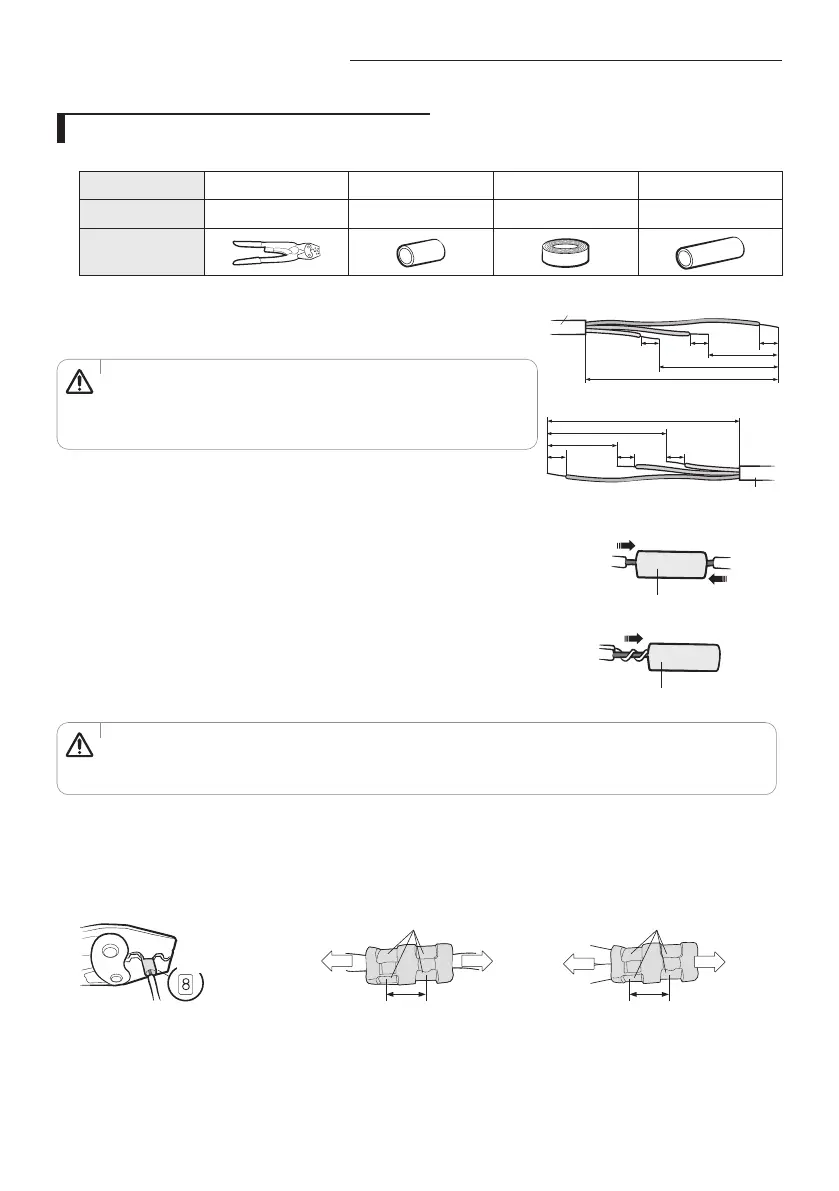

Connecting the cable
How to connect your extended power cables
1. Prepare the following tools.
Tools Crimping pliers Connection sleeve (mm) Insulation tape Contraction tube (mm)
Spec MH-14 20xØ6.5(HxOD) Width 19mm 70xØ8.0(LxOD)
Shape
2. As shown in the gure, peel o the shields from the rubber and wire of the
power cable.
- Peel o 20 mm of cable shields from the pre-installed tube.
• For information about the power cable specications for indoor and
outdoor units, refer to the installation manual.
• After peeling o cable wires from the pre-installed tube, insert a
contraction tube.
CAUTION
20 20
20
60
120
180
(Unit: mm)
Power cable
2020
20
60
120
180
Pre-installed tube for the power cable
3. Insert both sides of core wire of the power cable into the connection sleeve.
f Method 1
Push the core wire into the sleeve from both sides.
Connection sleeve
f Method 2
Twist the wire cores together and push it into the sleeve.
Connection sleeve
• If cable wires are connected without using connecting sleeves, their contact area becomes reduced, or corrosion develops
on the outer surfaces of the wires (copper wires) over a long time. This may cause an increase of resistance (reduction of
passing current) and consequently may result in a re.
CAUTION
4. Using a crimping tool, compress the two points and ip it over and compress another two points in the same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to make sure it is rmly pressed.
Compression
dimension
f
Method 1
Compress it 4 times
5 mm
f
Method 2
Compress it 4 times
5 mm
