32
English
Connecting the connection cord
The indoor unit is powered by the outdoor unit by means of a H07 RN-F connection cable (or a more power model),
with insulation in synthetic rubber and jacket in polychloroprene(neoprene), in accordance with the
requirements of standard EN 60335-2-40.
1. Remove the screw on the electrical component box and remove the cover plate.
2. Route the connection cord through the side of the indoor unit and connect the cable to terminals; refer to the
gure below.
3. Route the other end of the cable to the outdoor unit through the ceiling & the hole on the wall.
4. Reassemble the electrical component box cover, carefully tightening the screw.

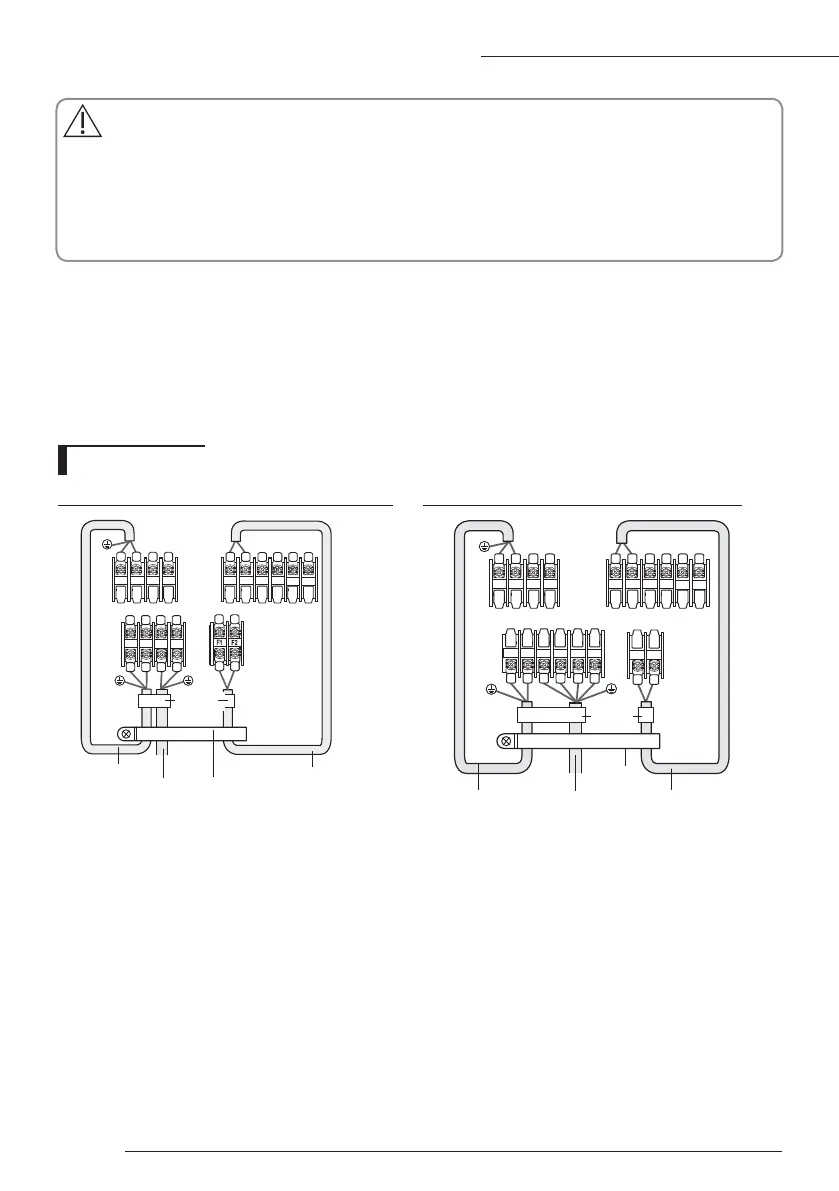

Wiring diagram
1 phase (∗∗052/071/090∗∗) 3 phase (∗∗100/120/140/160∗∗)
1(L)
2(N) 1 2 V1 V2 F3 F4
F2F1
1(L) 2(N)
N
L
Indoor Unit
Main power cable
Cable clamp
Communication cable
Cable tie
Indoor Power
N
L3(T)
1(L) 2(N)
L2(S)
L1(R)
F2F1
1(L)
2(N)
1
2 V1 V2 F3 F4
F2F1
Indoor Unit
Cable clamp
Indoor Power
Communication cable
3 Phase 4 Wires
power cable
(AC 380V)
Cable tie
CAUTION
• Always remember to connect the refrigerant pipes before performing the electric connections.
When disconnecting the system, always disconnect the electric cables before disconnecting the
refrigerant pipes.
• Always remember to connect the air conditioner to the grounding system before performing the
electric connections.
