30
English

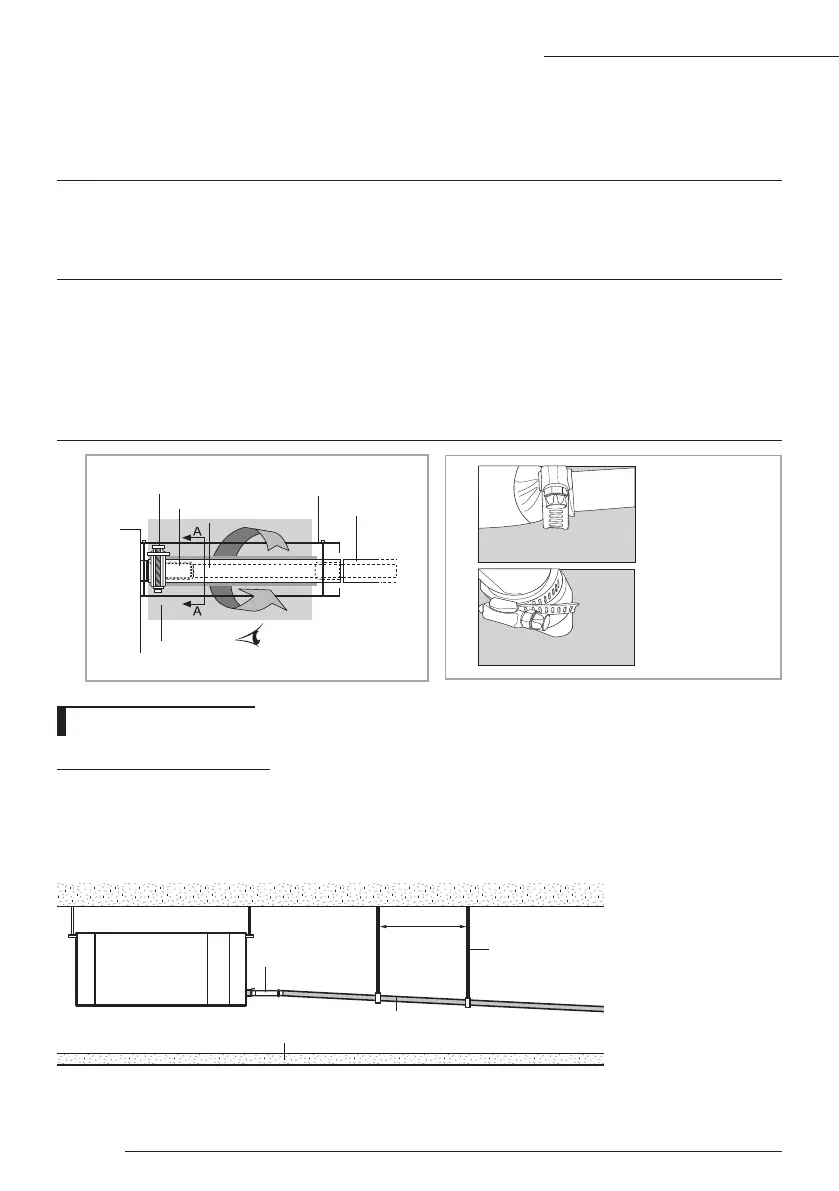

Drainpipe and drain hose installation
1. Install horizontal drainpipe with a slope of 1/100 or more and fix it by hanger space of 1.0~1.5m.
2. Install U-trap at the end of the drainpipe to prevent a nasty smell to reach the indoor unit.
3. Do not install the drainpipe to upward position. It may cause water flow back to the unit.
Without the drain pump
1~1.5m
Horizontal drainpipe
more than 1/100 slope
Ceiling
Hanger
Flexible hose
Drainpipe Connection
Care must be taken when installing the drain hose for the indoor unit to ensure that any condensate
water is correctly drained outside.
The drain hose can be installed to the right of the base pan.
1
Installing the drain hose should be the shorter, the better.
◆ In order to discharge condensation water, the drain hose should keep tilted.
◆ Fix the drain hose with Cable-Tie, so that it will not separate from the machine.
◆ While using draining pump, connect the end with draining pump.
2
Insulate and fix the drain hose according to the figure.
◆ Insert the drain hose to bottom of the outfall of water basin.
◆ Lock steel ring of the drain hose according to the figure.
◆ Wind and wrap steel ring and drain hose fully with thermal insulation sponge; fix both ends of
external layer with ribbon for thermal insulation.
◆ After being installed, drain hose must be insulated fully by heat insulating material. (To be
provided at site.)
A-A’
Steel ring of drain hose
Joint of drain hose
Drain hose
Drain hose
Fix with Cable-Tie
Wrap thermal sleeve hose
Indoor unit
As shown in the fig-
ure, tighten steel ring
of the drain hose.
