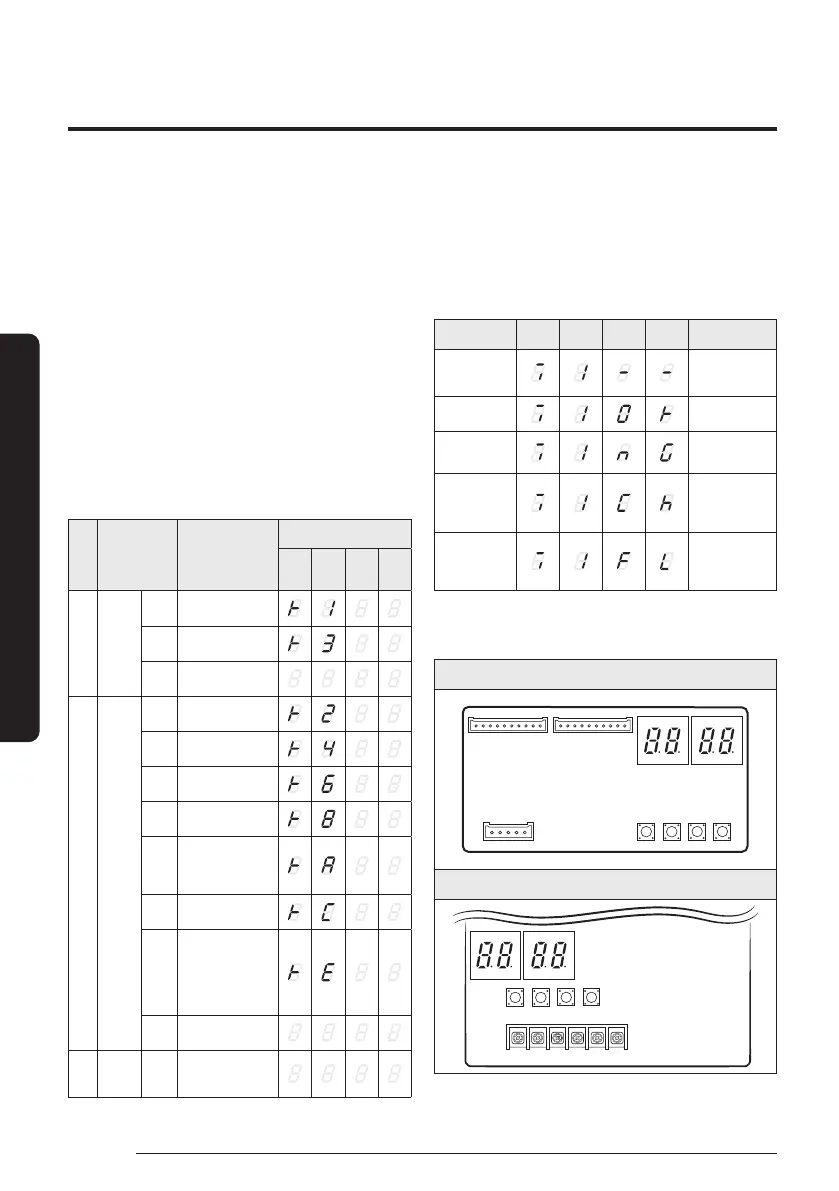

26
English
Installation Procedure
Installation Procedure
Step 15 Performing final check and trial
operation
1 Check the power supply between the outdoor unit and the
auxiliary circuit breaker.
• 1 phase power supply: L, N
• 3 phase power supply: R, S, T, N
2 Check the indoor unit.
a Check that you have connected the power and
communication cables correctly. (If the power
cable and communication cables one mixed up or
connected incorrectly, the PCB will be damaged.)
b Check that the thermistor sensor, drain pump/hose,
and display are connected correctly.
3 Press K1 or K2 on the outdoor unit PCB to run the test
mode and stop.
Key Push type Mode
Display
SEG 1 SEG 2
SEG
3
SEG
4
K1 Short
1st Heating test mode
2nd
Defrost test mode
¹⁾
3rd End Key operation
K2 Short
1st Cooling test mode
2nd Inverter check
3rd Pump down
4th Unusual
5th
Inverter Fault
Detection (Comp#1)
²⁾
6th Auto trial operation
7th
Auto check
³⁾
(Installtion
commissioning
mode)
8th End Key operation
K3 Short 1st
Reset
Release Eco mode
¹⁾
Defrost test mode
Condition 1: The outdoor temperature is below 10°C.
Condition 2: All the temperature conditions should meet the
defrost conditions.
²⁾
Indication on the display and action to take when an
inverter fault is detected
SEG1 SEG2 SEG3 SEG4 Action to take
Fault detection
is in progress
-
OK
-
NG
PBA defect:
Replace the PBA
Check
Manual
inspection is
required
Going into fault
detection mode
failed
Try fault
detection again
³⁾
Auto check (Installation commissioning mode)
To ensure normal operation of the product, first make sure
to complete auto check. See step 16.
1 phase
K1 K2 K3 K4
3 phase
K1 K2 K3 K4
