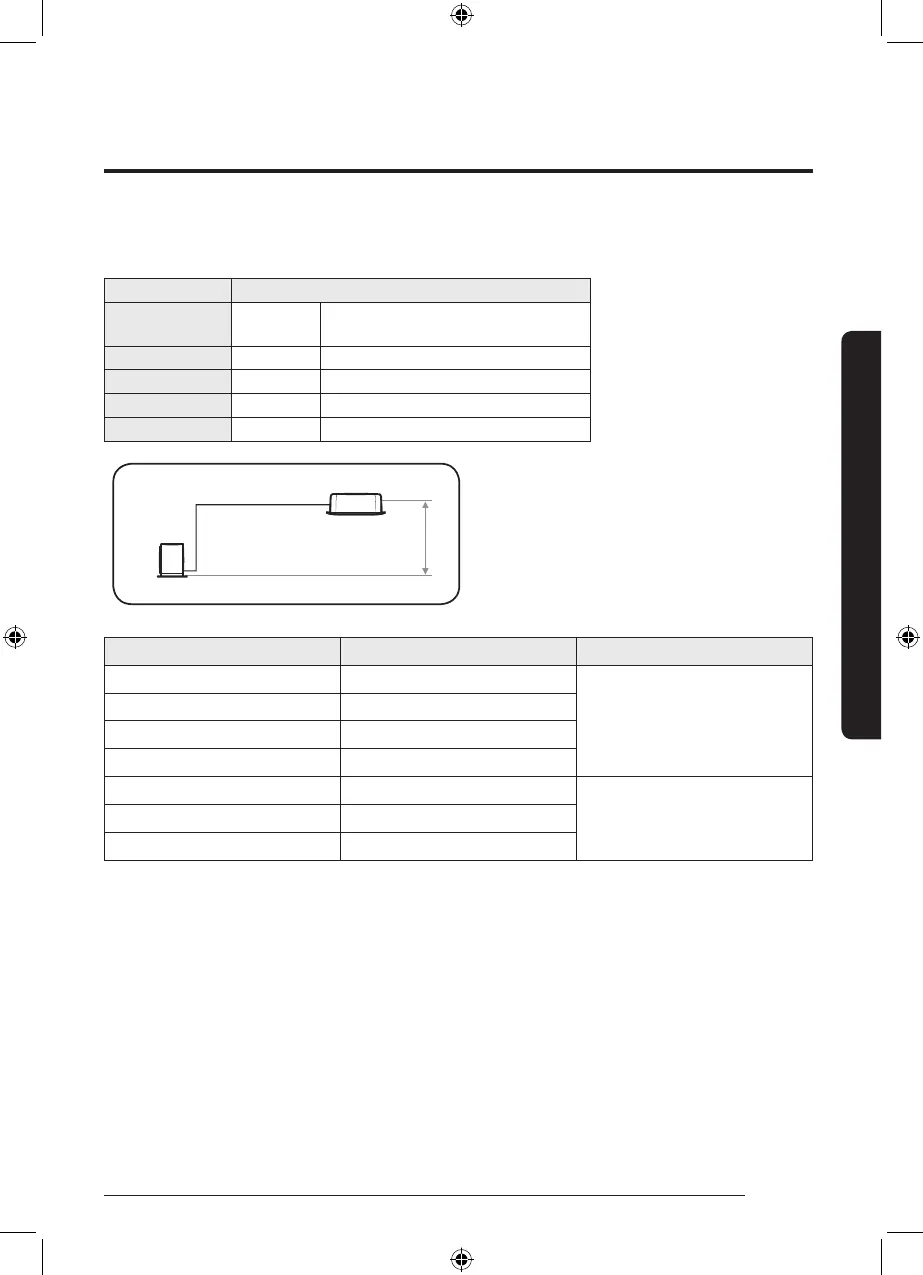

Installation Procedure
Step 5 Connecting the refrigerant pipe
Items Maximum allowable length [ft (m)]
Applicable outdoor
unit models
Main pipe (L1)
Max. height difference between outdoor
and indoor units (h1)
AC026FCADKF 30 15
AC035FCADKF 30 15
AC052FCADKF 30 20
AC071FCADKF 50 30
L
1
h
1
outdoor
indoor
• Temper grade and minimum thickness of the refrigerant pipe
Outer diameter [mm] Minimum thickness [mm] Temper grade
Ø6.35 0.7
C1220T-O
Ø9.52 0.7
Ø12.70 0.8
Ø15.88 1.0
Ø15.88 0.8
C1220T-1/2H OR C1220T-HØ19.05 0.9
Ø22.23 0.9
• The material specification (thickness) of the refrigerant pipes must be in accordance with EU and/or local legislation and
standards.
