Installation Procedure

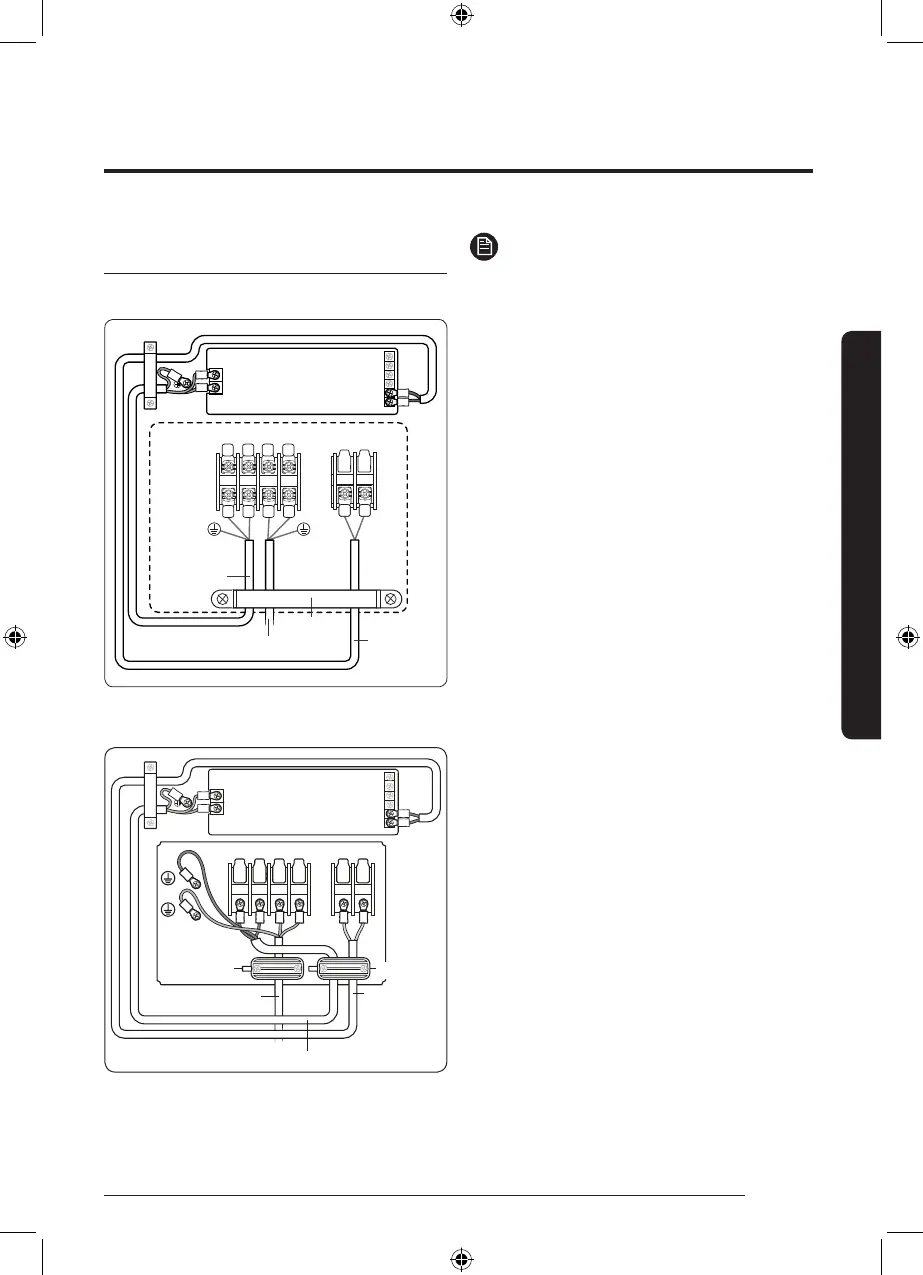

Connecting the outdoor-to-indoor power cable
and the communication cable
• AC026/035/052FCADKF
Outdoor to indoor
power cable
Communication
cable
Indoor Unit
Outdoor Unit
L
F1
• AC071FCADKF
1(L) 2(N)
L
N
F1 F2
L
N
F1
F2
Outdoor Unit
Cable clamp
Outdoor to indoor power cable
Main power cable
Communication
cable
Cable clamp
Indoor Unit
L
N
F1
F2
NOTE
• Lay the electrical wiring so that the front cover does not
rise up when doing wiring work and attach the front
cover securely.
• Ground wire for the indoor unit and outdoor unit
connection cable must be clamped to a soft copper
tin-plated eyelet terminal with M4 screw hole(NOT
SUPPLIED WITH UNIT ACCESSORIES).
• The appearance of the unit may be different from the
picture depending on the model.
Main power cable
Cable clamp
