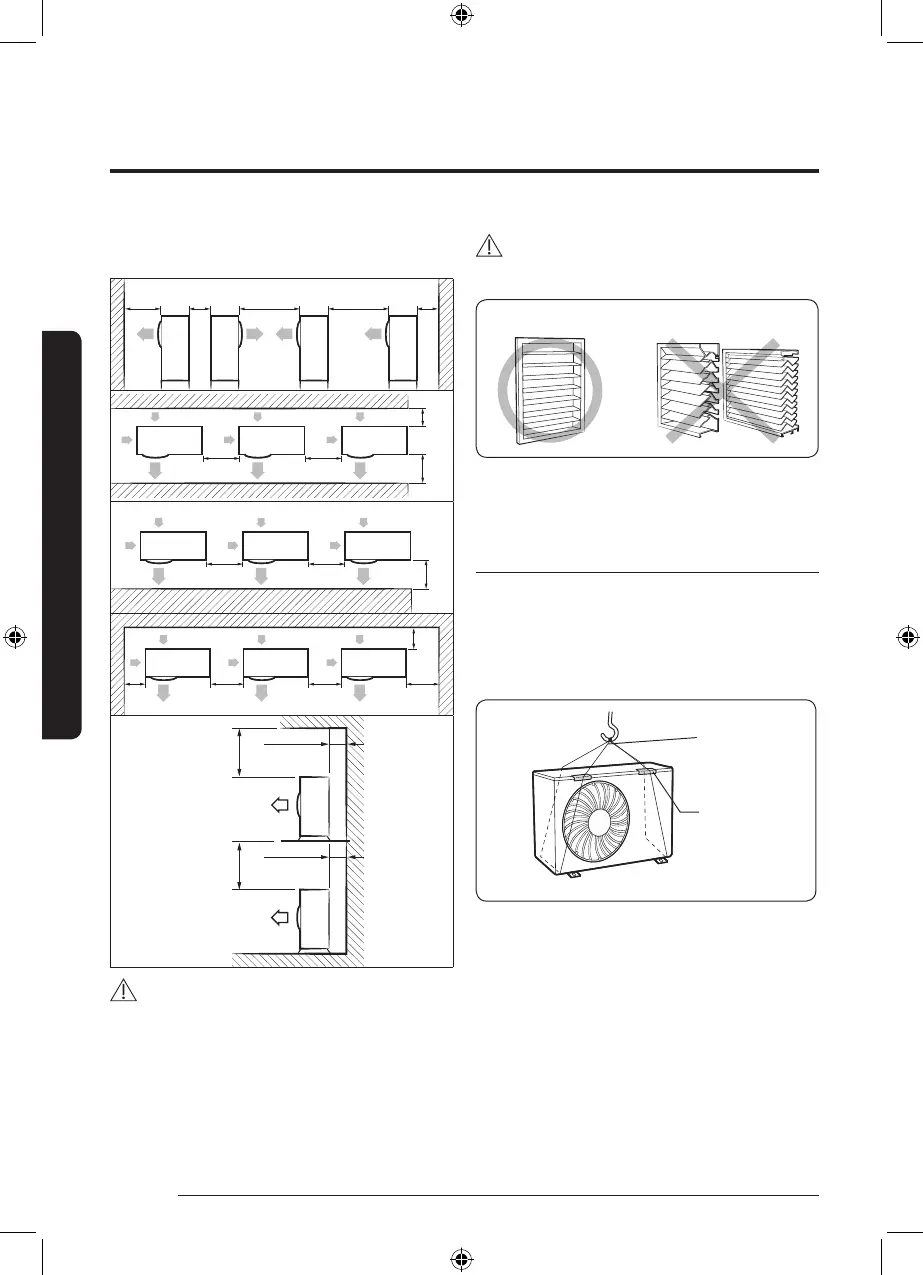

Installation Procedure
When installing more than 1 outdoor unit
(Unit: mm)
1000 or
more
200 or
more
2000 or more
3000
or more
150
or more
150
or more
150
or more
1500
or more
300
or more
1000
or more
150
or more
150
or more
200
or more
300
or more
300
or more
300 or more
300 or more
500 or more 500 or more
CAUTION
• The outdoor unit must be installed according to the
specified distances in order to permit accessibility from
each side, to guarantee correct operation, maintenance,
and repair of the unit.
The components of the outdoor unit must be reachable
and removable under safe conditions for people and the
unit.
WARNING
• Should adopt bar type louver. Don’t use a type of rain
resistance louver.
[Bar type louver] [Rain resistance louver]
• Louver specifications.
– Anglecriteria:lessthan20˚
– Opening ratio criteria : greater than 80%
Moving the outdoor unit with wire rope
1 Before carrying the outdoor unit, fasten two wire ropes of 8
m or longer, as shown in the figure.
2 To prevent damages or scratches effectively, insert a piece
of cloth between the outdoor unit and the ropes.
3 Move the outdoor unit.
Wire rope
Plate protection cloth
Installation Procedure
