20
English

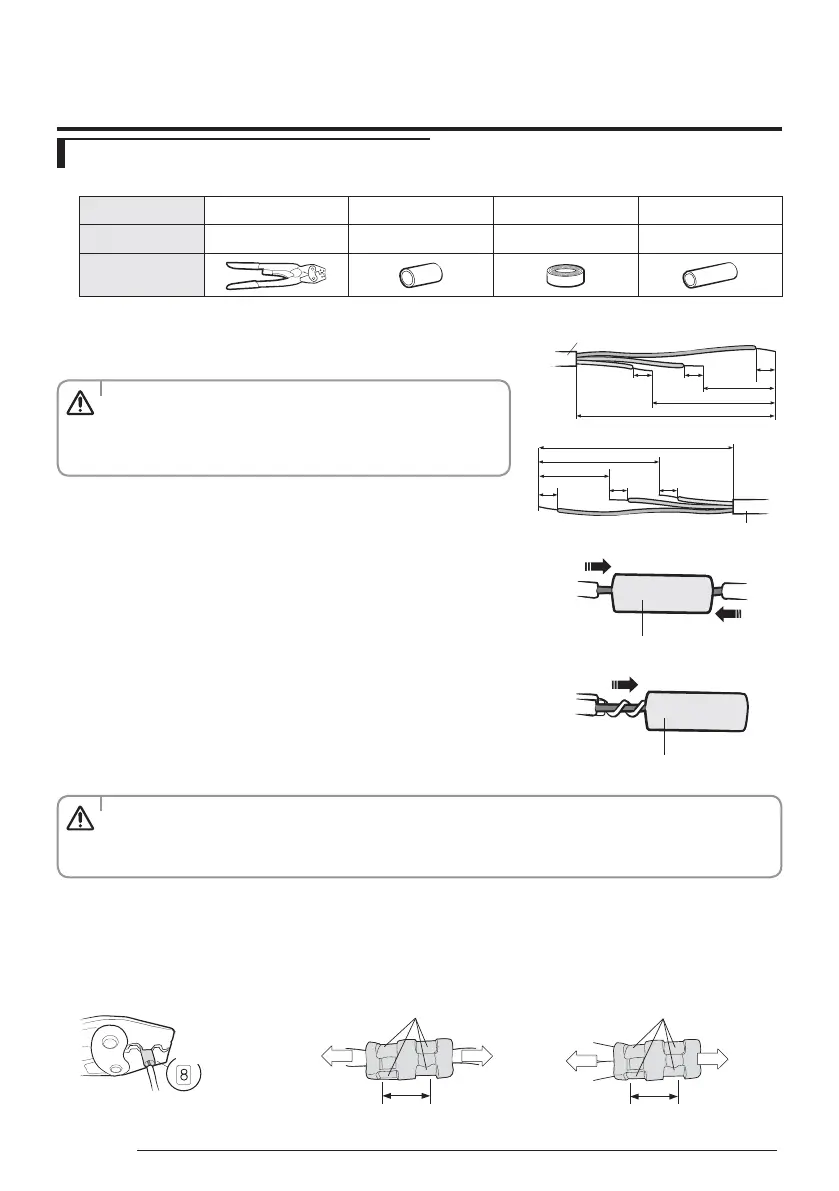

Wiring Work
How to connect your extended power cables
1. Prepare the following tools.
Tools Crimping pliers Connection sleeve (mm) Insulation tape Contraction tube (mm)
Spec MH-14 20xØ6.5 (HxOD) Width 19 mm 70xØ8.0 (LxOD)
Shape
2. As shown in the gure, peel o the shields from the rubber and wire of the
power cable.
- Peel o 20 mm of cable shields from the pre-installed tube.
• For information about the power cable specications for indoor
and outdoor units, refer to the installation manual.
• After peeling o cable wires from the pre-installed tube, insert a
contraction tube.
CAUTION
Power cable
20
20
60
120
180
20
180
120
60
20
20
20
Pre-installed tube for the power cable
(Unit: mm)
3. Insert both sides of core wire of the power cable into the connection sleeve.
f Method 1
Push the core wire into the sleeve from both sides.
Connection sleeve
f Method 2
Twist the wire cores together and push it into the sleeve.
Connection sleeve
• If cable wires are connected without using connecting sleeves, their contact area becomes reduced, or corrosion
develops on the outer surfaces of the wires (copper wires) over a long time. This may cause an increase of
resistance (reduction of passing current) and consequently may result in a re.
CAUTION
4. Using a crimping tool, compress the two points and ip it over and compress another two points in the same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to make sure it is rmly pressed.
Compression
dimension
f Method 1
5 mm
Compress it 4 times.
f Method 2
5 mm
Compress it 4 times.
