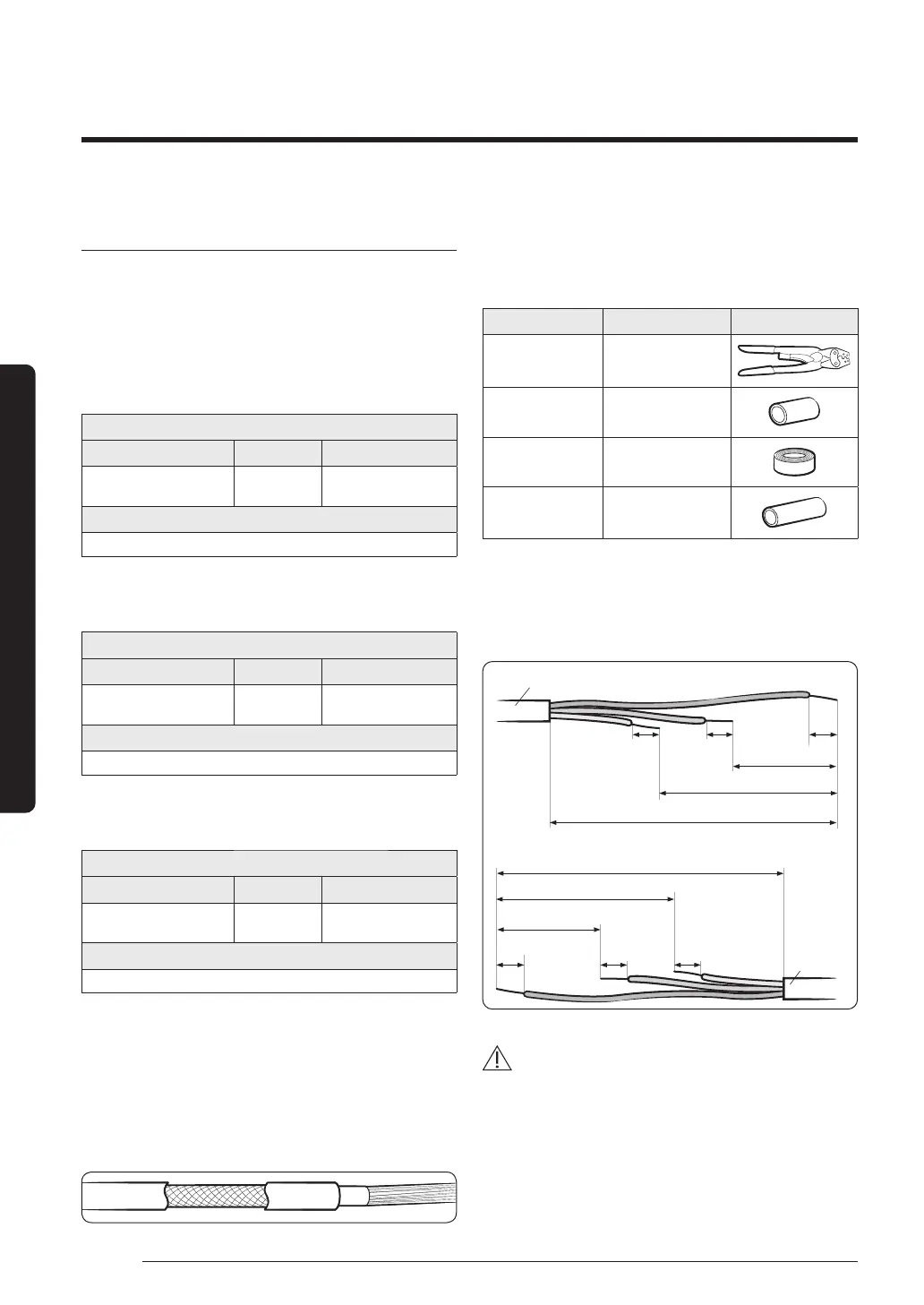

Installation Procedure
English
Installation Procedure
Outdoor-to-indoor power and communication
cables specifications
• Indoor unit :
1WAY CST(AC***BN1***)
360CST(AC***BN6***)
4WAY CST(AC***BN4***)
Mini4way CST(AC***BNN***)
Console(AC***BNJ***)
RAC(AC***BNT***, AC***BNA***)
Indoor power supply
Power supply Max/Min (V) Indoor power cable
ߢעࡡߣߡߩࣗߣߤߡǤࡡߧߡ²і ±10%
ߡࢋߡߡߢߣʀ˵ࠟ
࣍ߡࢋߨߦࠟ࣎ࡡߤиθʪϑ
Communication cable
ߡࢋߡߡߢߣʀ˵ࠟ࣍ߡࢋߨߦࠟ࣎ࡡߣиθʪϑ
• Indoor unit :
Duct(AC***BNL***, AC***BNH***)
Indoor power supply
Power supply Max/Min (V) Indoor power cable
ߢעࡡߣߡߩࣗߣߤߡǤࡡߧߡ²і ±10%
ߡࢋߡߡߣߤʀ˵ࠟ
࣍ߢࢋߦࠟ࣎ࡡߤиθʪϑ
Communication cable
ߡࢋߡߡߢߣʀ˵ࠟ࣍ߡࢋߨߦࠟ࣎ࡡߣиθʪϑ
• Indoor unit :
MPAH(AC***BNZ***)
Indoor power supply
Power supply Max/Min (V) Indoor power cable
ߢעࡡߣߡߩࣗߣߤߡǤࡡߧߡ²і ±10%
ߡࢋߡߡߤߪʀ˵ࠟ
࣍ߣࢋߦࠟ࣎ࡡߤиθʪϑ
Communication cable
ߡࢋߡߡߢߣʀ˵ࠟ࣍ߡࢋߨߦࠟ࣎ࡡߣиθʪϑ
• Power supply cords of parts of appliances for outdoor
use shall not be lighter than polychloroprene sheathed
flexible cord. (Code designation IEC:60245 IEC 57 /
CENELEC: H05RN-F)
• When installing the indoor unit in a computer room or
network room, use the double shielded (tape aluminum /
polyester braid + copper ) cable of FROHH2R type.
Step 5 Optional: Extending the
power cable
1 Prepare the following tools.
Tools Spec Shape
Crimping pliers MH-14
Connection sleeve
[Inch(mm)]
0.78 (20)x
Ø0.25 (6.5) (HxOD)
Insulation tape Width 19 mm
Contraction tube
[Inch(mm)]
2.75 (70)x
Ø0.31 (8.0) (LxOD)
2 As shown in the figure, peel off the shields from the
rubber and wire of the power cable.
• Peel off 0.79 inch (20 mm) of cable shields from the
pre-installed tube.
Power cable
[Unit : inch(mm)]
0.79
(20)
0.79
(20)
0.79
(20)
2.36
(60)
4.72
(120)
7. 0 9
(180)
7. 0 9
(180)
4.72
(120)
2.36
(60)
0.79
(20)
0.79
(20)
0.79
(20)
Pre-installed
tube for the
power cable
CAUTION
• For information about the power cable specifications
for indoor and outdoor units, refer to the installation
manual.
• After peeling off cable wires from the pre-installed
tube, insert a contraction tube.
