5
ENGLISH

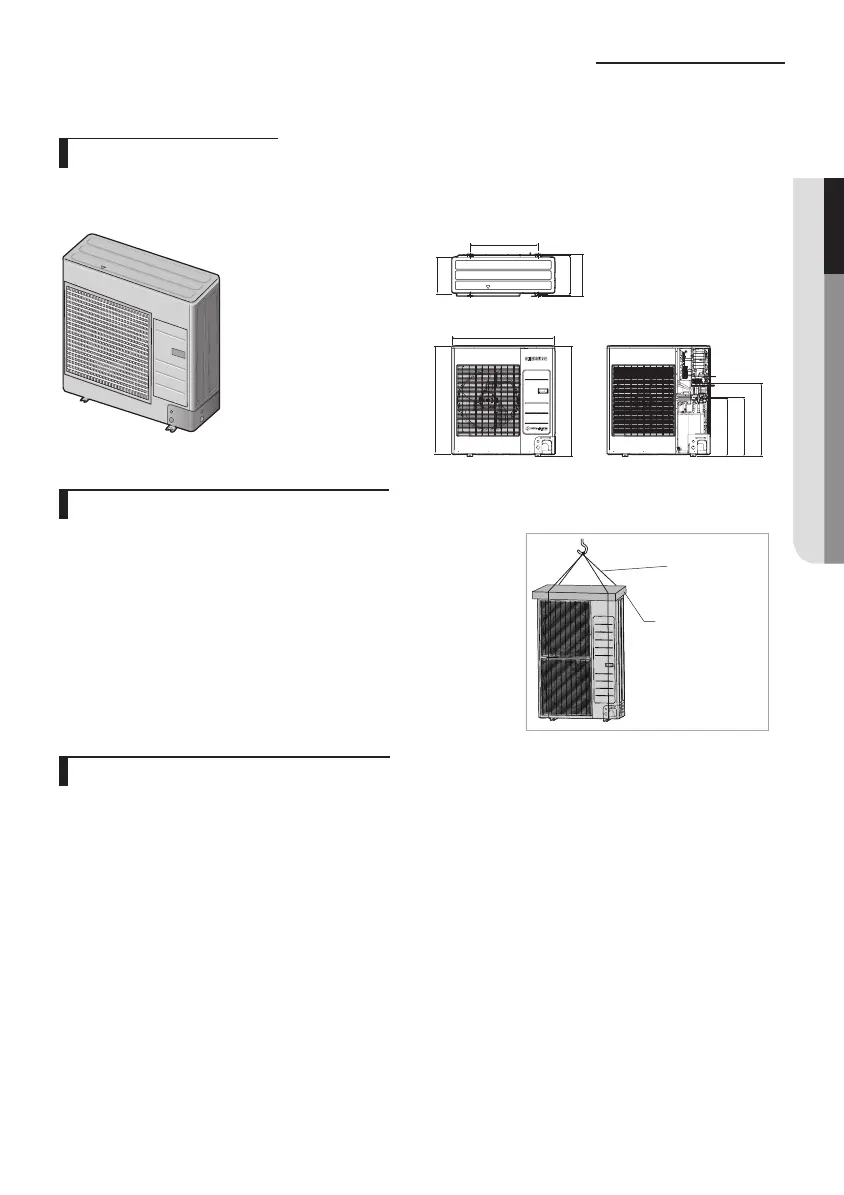

Preparation for outdoor unit installation
The air conditioner uses R-410A refrigerant.
Outdoor unit dimension
A Type AC030MXSCCC / AC036MXSCCC
(Unit : inch)
24.4
37.0
13.0
38.3
39.3
26.6
20.8
21.1
14.2
15.1
Moving the Outdoor Unit by Wire Rope
Fasten the outdoor unit by two wire ropes (26.3 ft or longer) as shown in the
gure. To prevent from damage or scratches, insert a piece of cloth between
the outdoor unit and rope, then move the unit.
The appearance of the unit may be dierent from the picture depending
on the model.
Plate protection
cloth
Wire rope
When moving an outdoor unit by hand
Moving the outdoor unit by lifting up and carrying due to the short travel distance.
- Two people should carry the outdoor unit.
- Be careful not to damage the heat exchanger of the rear side of the outdoor unit during transportation.
- Be careful not to get hurt by the sharp surface of the heat exchanger.
CAC 저온향 과제 북미향 실외기IM_EN_DB68-07245A-00.indd 5 2017-05-10 오후 2:52:51
