21
ENGLISH

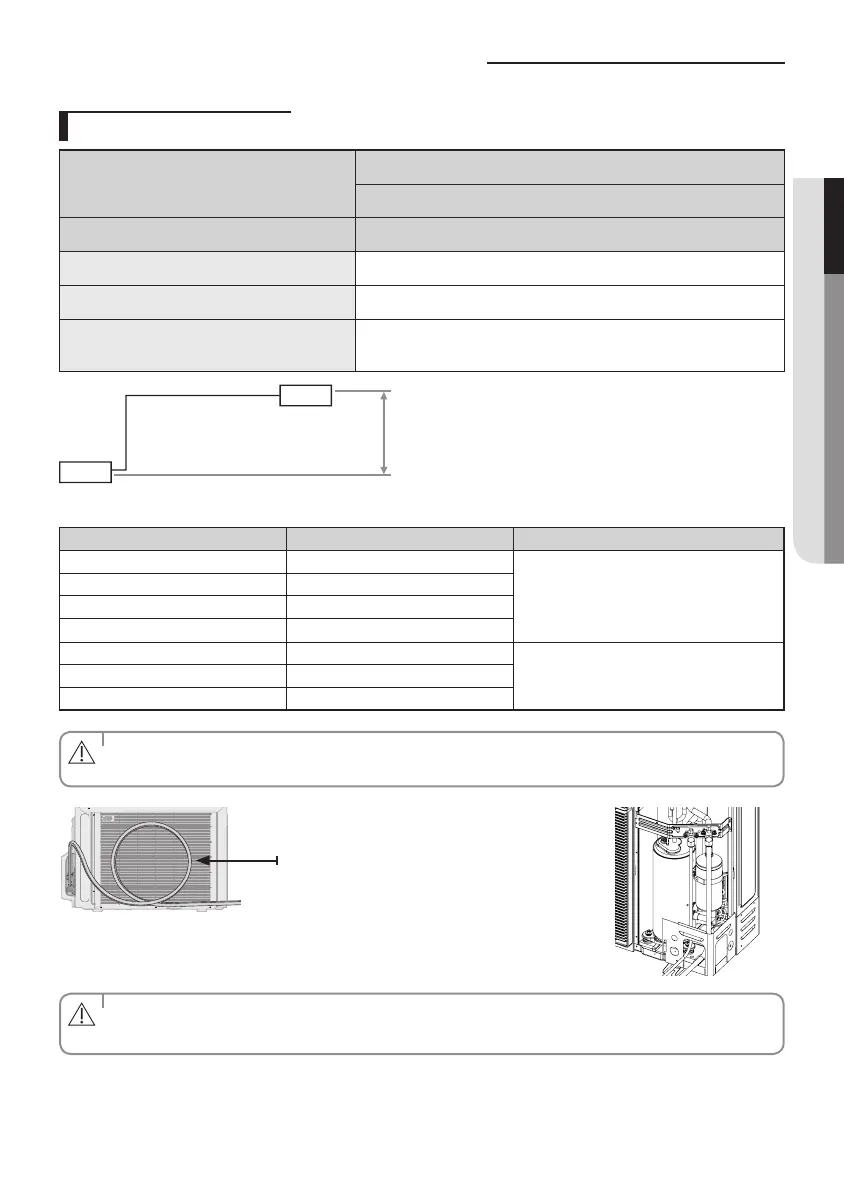

Connecting the refrigerant pipe
Refrigerant piping system
Items
Maximum allowable length
Single installation
Type A
Applicable outdoor unit models AC030/036MXSCCC
Main pipe (L1) 164.0 ft (50 m)
Max. height dierence between outdoor and
indoor units (h1)
98.4 ft (30 m)
indoor
outdoor
L1
h1
Temper grade and minimum thickness of the refrigerant pipe
Outer diameter [inch] Minimum thickness [inch] Temper grade
1/4 0.0276
C1220T-O
3/8 0.0276
1/2 0.0315
5/8 0.0394
5/8 0.0315
C1220T-1/2H OR C1220T-H3/4 0.0354
7/8 0.0354
• Make sure to use C1220T-1/2H (Semi-hard) pipe for more than 3/4 in. In case of using C1220T-O (Soft) pipe for
3/4 in., pipe may be broken, which can result in an injury.
CAUTION
Make at least one round:
It will reduce noise and vibration
The appearance of the unit may be dierent from the diagram depending on the model.
• After connecting pipes through the knock-out, cover the opening to prevent animals and debris from entering.
CAUTION
