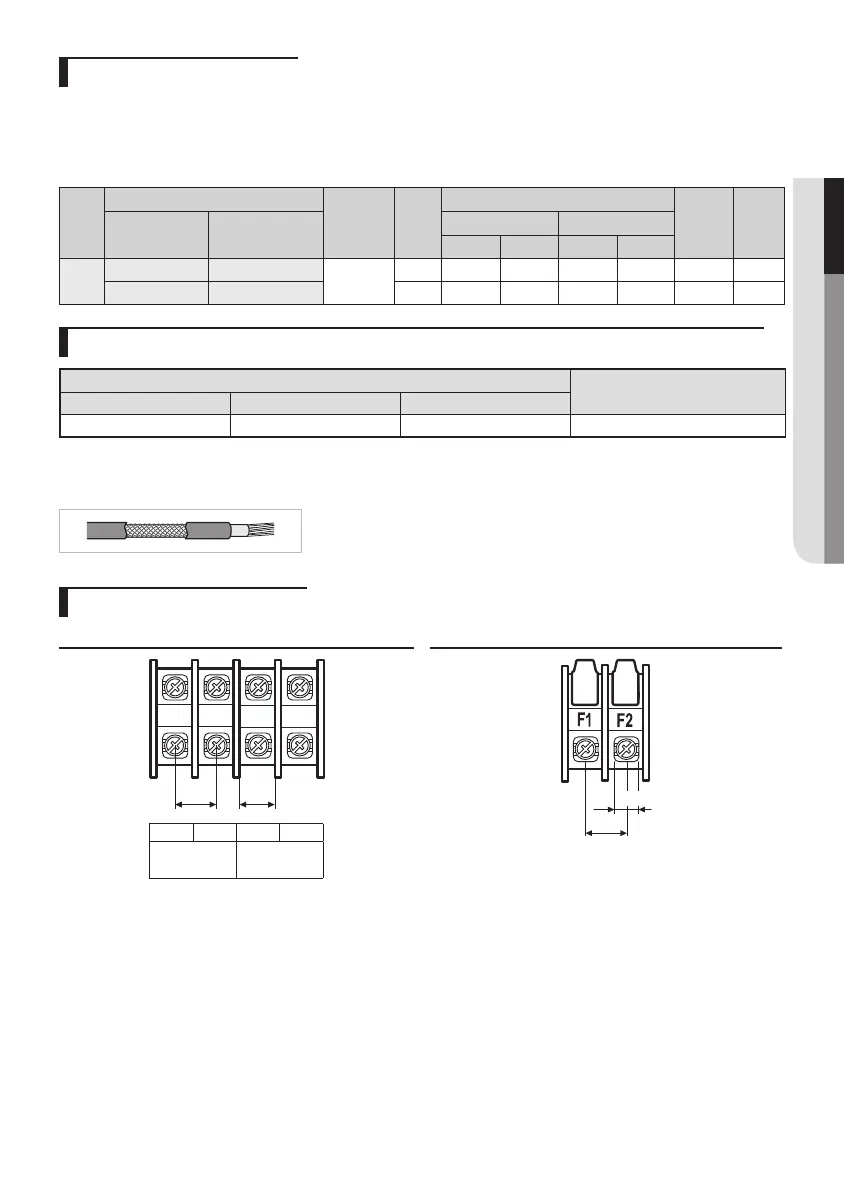

Power Cable Specications
The power cable is not supplied with air conditioner.
- Select the power supply cable in accordance with relevant local and national regulations.
- Wire size must comply with the applicable local and national code.
- Specications for local wiring power cord and branch wiring are in compliance with local cord.
Type
Model
Power
source
RLA (A)
FLA
MCA MOP
Outdoor Unit Indoor Unit
Outdoor Unit Indoor Unit
FAN1 (A) FAN2 (A) FAN1 (A) FAN2 (A)
A
AC030MXSCCC/AA AC030MNTDCH/AA 16.5 1.51 0.9 24 30
AC036MXSCCC/AA AC036MNTDCH/AA 16.5 1.51 0.9 24 30
Between Indoor unit and Outdoor unit Connection Cable Specications(Common in use)
Power supply
Communication Cable
Power supply Max/Min(V) Indoor Power Cable
1Φ, 208~230V, 60Hz ±10%
0.0039 in² , 3wires
0.0011~0.0023 in², 2wires
Power supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed exible
cord. (Code designation IEC:60245 IEC 57 / CENELEC: H05RN-F or IEC:60245 IEC 66 / CENELEC: H07RN-F)
When installing the indoor unit in a computer room or network room, use the
double shielded (Tape aluminum / polyester braid + copper ) cable of FROHH2R
type.
1-phase terminal block spec
AC power : M5 screw Communication : M4 screw
1(L) 2(N)
N
L
0.59 0.47
0.40
0.45
L1 (L) L2 (N) L1 (L) L2 (N)
INDOOR
POWER
OUTDOOR
POWER
