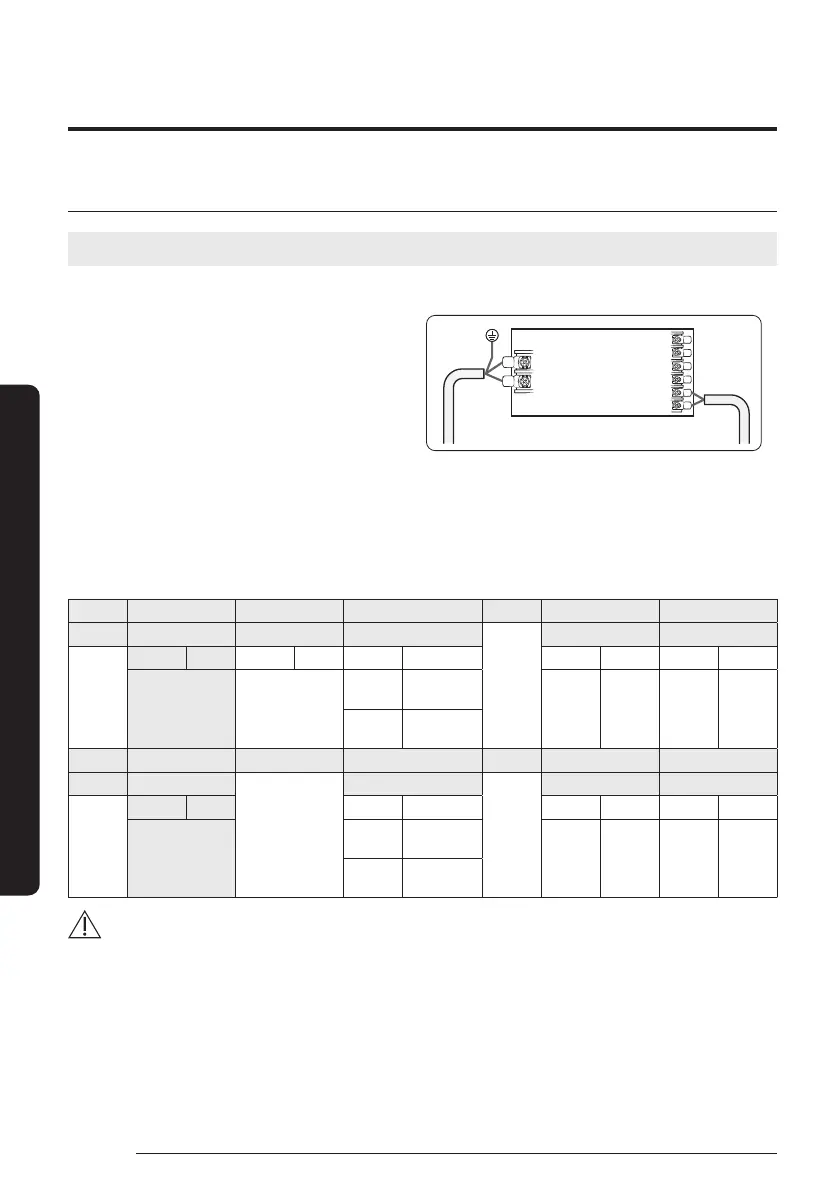

Installation Procedure

Setting the indoor unit addresses

Option No. for an indoor unit address: 0AXXXX-1XXXXX-2XXXXX-3XXXXX

Before installing an indoor unit, be sure to set an address for the indoor unit by taking the following steps:

1 Make sure that the power is supplied to the indoor unit.

If the indoor unit is not plugged in, it must include a power

supply

1(L)

2(N)

Indoor Unit

2 Set an address for each indoor unit using the remote control, according to your air conditioning system plan, by referring to

the following table and by following the steps in Common steps for setting the addresses and options on page 33.

• The indoor unit addresses (main and RMC addresses) are set to 0A0000-100000-200000-300000 by default.

• If indoor units and outdoor units match 1:1, you don’t need to set the main address because it is automatically set

by the outdoor unit.

• If you are using on or off controller, set RMC address.

Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6

Function Page Mode Setting main address

Reserved

Indoor unit number Indoor unit number

Indication

and

details

Indication Details Indication Details Indication Details Indication Details Indication Details

0 A

No main

address

0 to 1 Tens digit 0 to 9

Units

digit

Main address

setting mode

Option SEG7 SEG8 SEG9 SEG10 SEG11 SEG12

Function Page

Reserved

Setting RMC address

Reserved

Group channel (x16) Group address

Indication

and

details

Indication Details Indication Details Indication Details Indication Details

No RMC

address

RMC1 0 to 2 RMC2 0 to F

RMC address

setting mode

CAUTION

• The main address must be set to a value in the range 0 to 15. If you set other values, communication error will occur.

• If any of SEG5 and SEG6 is set to a value in the range A to F, the main address of the indoor unit does not change.

• If SEG3 is set to 0, the indoor unit maintains the existing main address even if SEG6 is set to a new value.

• If SEG9 is set 0, the indoor unit maintains the existing RMC address even if SEG11 and SEG12 are set to new values.

DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 40DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 40 2025-04-08 오전 8:53:272025-04-08 오전 8:53:27
