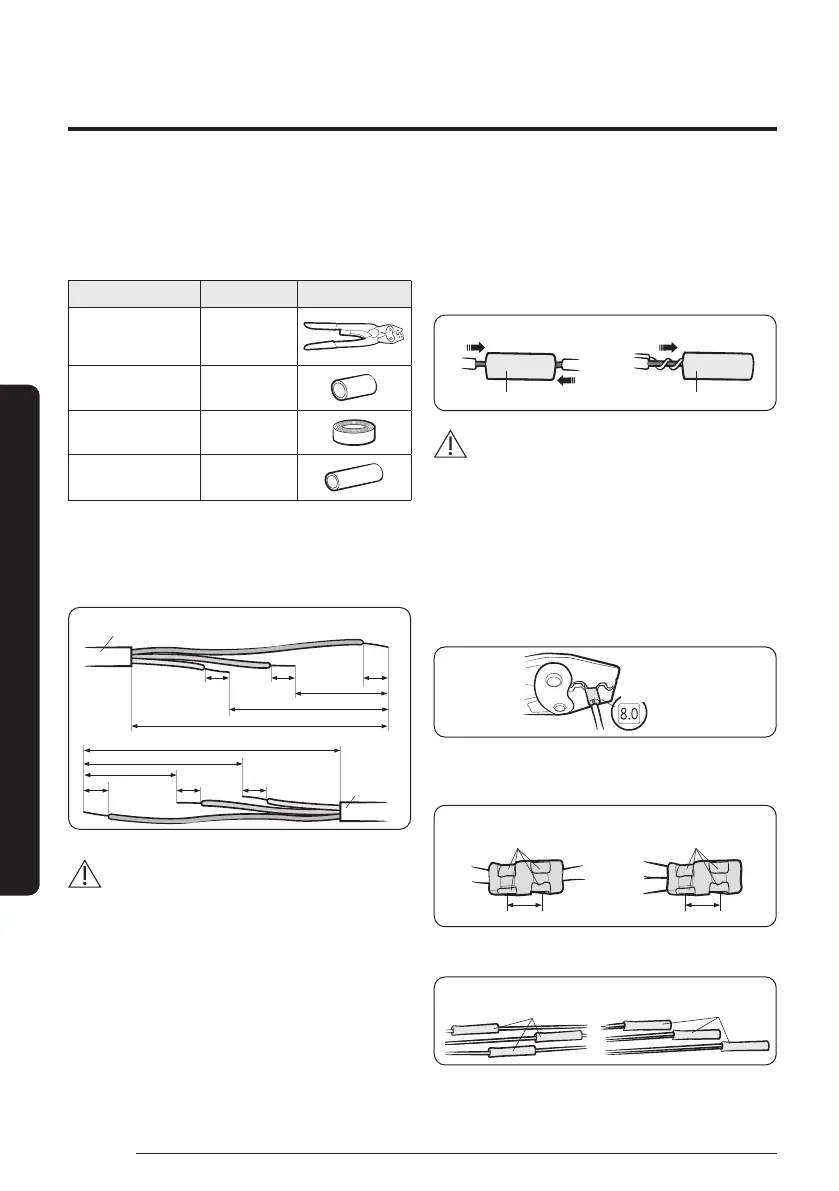

Installation Procedure

Step 13 Optional: Extending the power

cable

1 Prepare the following tools.

Tools Spec Shape

Crimping pliers MH-14

Connection sleeve (mm) 20xØ6.5 (HxOD)

Insulation tape Width 19 mm

Contraction tube (mm) 70xØ8.0 (LxOD)

2 As shown in the figure, peel off the shields from the

rubber and wire of the power cable.

• Peel off 20 mm of cable shields from the pre-

installed tube.

Power cable

(Unit: mm)

20 20 20

120

180

Pre-installed

tube for the

power cable

CAUTION

• For information about the power cable specifications

for indoor and outdoor units, refer to the installation

manual.

• After peeling off cable wires from the pre-installed

tube, insert a contraction tube.

3 Insert both sides of core wire of the power cable into the

connection sleeve.

• Method 1: Push the core wire into the sleeve from

both sides.

• Method 2: Twist the wire cores together and push it

into the sleeve.

Method 1

Connection sleeve Connection sleeve

Method 2

CAUTION

• If cable wires are connected without using connecting

sleeves, their contact area becomes reduced, or corrosion

develops on the outer surfaces of the wires (copper wires)

over a long time. This may cause an increase of resistance

(reduction of passing current) and consequently

may

result in a fire.

4 Using a crimping tool, compress the two points and flip it over

and compress another two points in the same location.

• The compression dimension should be 8.0 mm².

Compression

dimension

• After compressing it, pull both sides of the wire to

make sure it is firmly pressed.

Method 1 Method 2

5 mm

Compress it 4 times. Compress it 4 times.

5 mm

5 Apply heat to the contraction tube to contract it.

Method 1

Contraction tube

Method 2

DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 26DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 26 2025-04-08 오전 8:53:222025-04-08 오전 8:53:22
