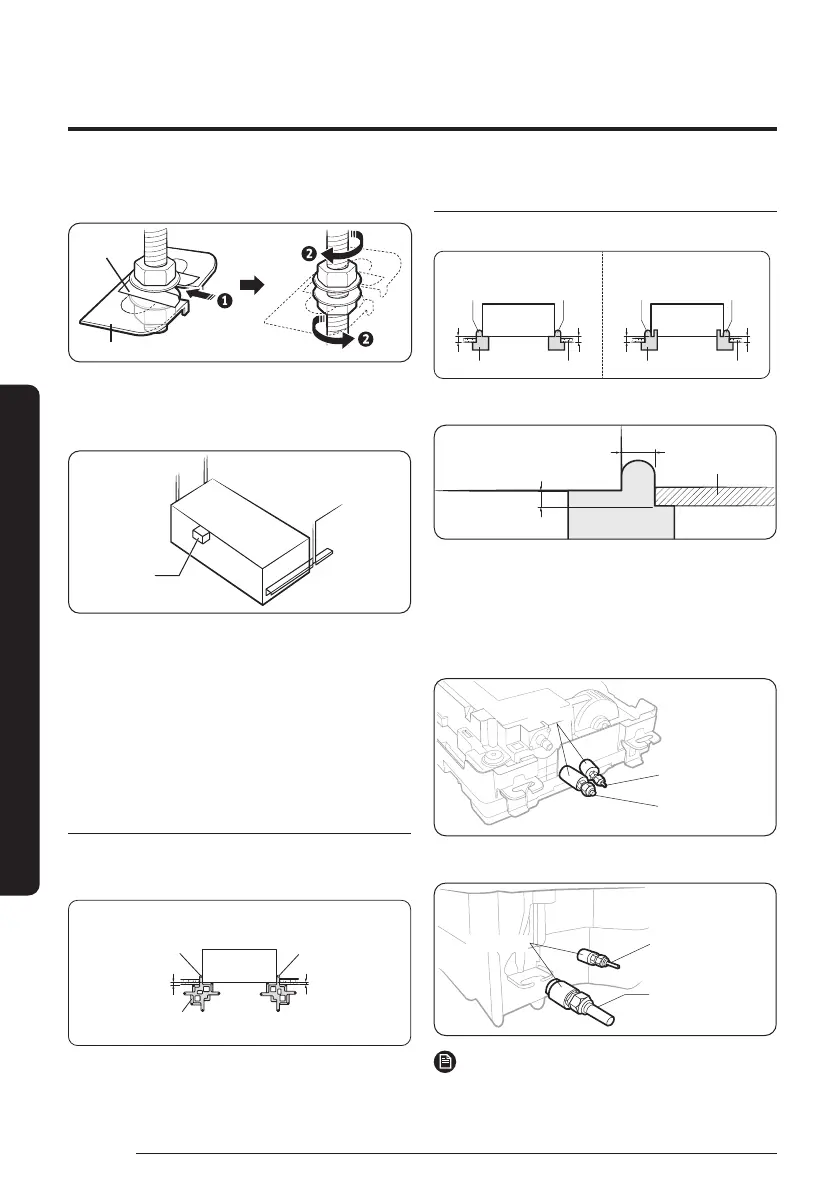

Installation Procedure

4 Way Cassette

Pad stopper

Bracket

6 Check the level of the indoor unit by using a leveler.

• A tilt of the indoor unit may cause malfunction of a

built-in float switch and water leaks.

Level

7 Adjust the unit to the appropriate position, taking into

account the installation area for the front panel.

• Place the pattern sheet on the indoor unit.

• Adjust the space between the ceiling and the

indoor unit by using a dimension gauge.

• Fix the indoor unit securely after adjusting the level

of the unit by using a leveller.

• Remove the pattern sheet, connect the other

cables, and install the front panel.

When the installation template is made of plastic

1 way Cassette

Unit : mm

1way cassette (WindFree panel)

① WindFree medium/

large type (inlet)

Indoor

unit

Clamping jig

① WindFree medium/

large type (outlet)

When the installation template is made of paper

1 way Cassette

1way cassette (WindFree panel)

(AC026/035FE1DKF)

1way cassette (WindFree panel)

(AC052/071FE1DKF)

Indoor unit Indoor unit

Air outlet side

Jig Jig

10mm

Ceiling Ceiling

Air outlet sideAir inlet side Air inlet side

4 way Cassette

20 mm

Indoor unit

17 mm

Ceiling

Gauge of

dimensions

Step 5 Purging inert gas from the indoor unit

The indoor unit comes with nitrogen gas (inert gas) charged at the factory.

Therefore, all inert gas must be purged before connecting the assembly piping.

Unscrew the pinch pipe at the end of each refrigerant pipe.

1 way Cassette

Insulator

Liquid side

Gas side

4 way Cassette

Liquid side

Gas side

Insulator

NOTE

• To prevent dirt or foreign objects from getting into the

pipes during installation, do not remove the pinch pipe

completely until you are ready to connect the piping.

DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 16DB68-13503A-01_IM_CAC R-32 WindFree1_4way_EA_EN_.indd 16 2025-04-08 오전 8:53:202025-04-08 오전 8:53:20
