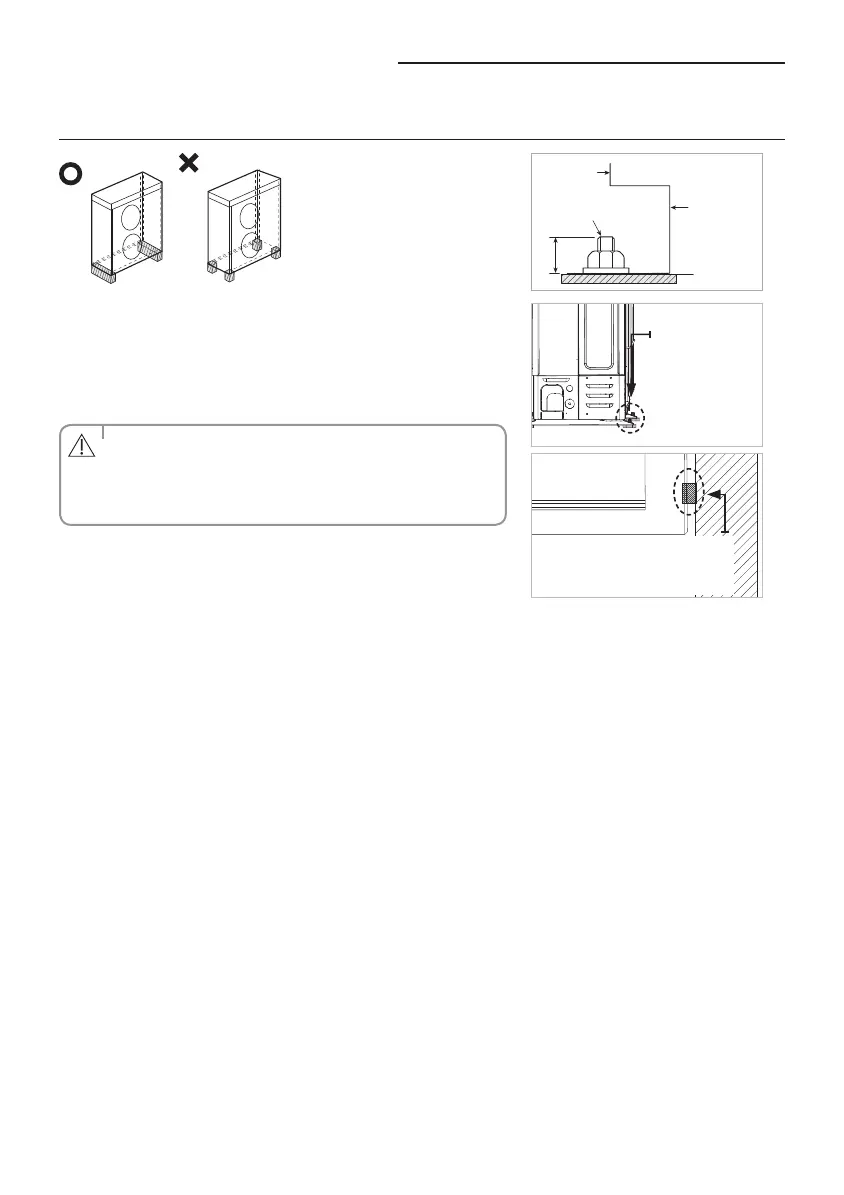

Outdoor unit installation
Outdoor Unit Support
Anchor bolt
0.79 inch
Outdoor
Unit
Base
Surface
Outdoor
Unit
Support
Designed to
cut o residual
vibration from
outdoor unit to
rack.
OUTDOOR UNIT INSTALLED ON RISERS/STAND OR WALL INSTALLATION
f Ensure the wall will be able to support the weight of rack and outdoor
unit.
f Install the rack close to the column as much as possible.
f Install proper grommet in order to reduce noise and residual vibration
transferred by outdoor unit towards wall.
When installing air guide duct
• Check and make sure that screws do not damage the copper
pipe.
• Secure air guide duct on guard fan.
CAUTION
Soft rubber designed to cut o
vibration from rack to wall.
(not supplied with product)
