8

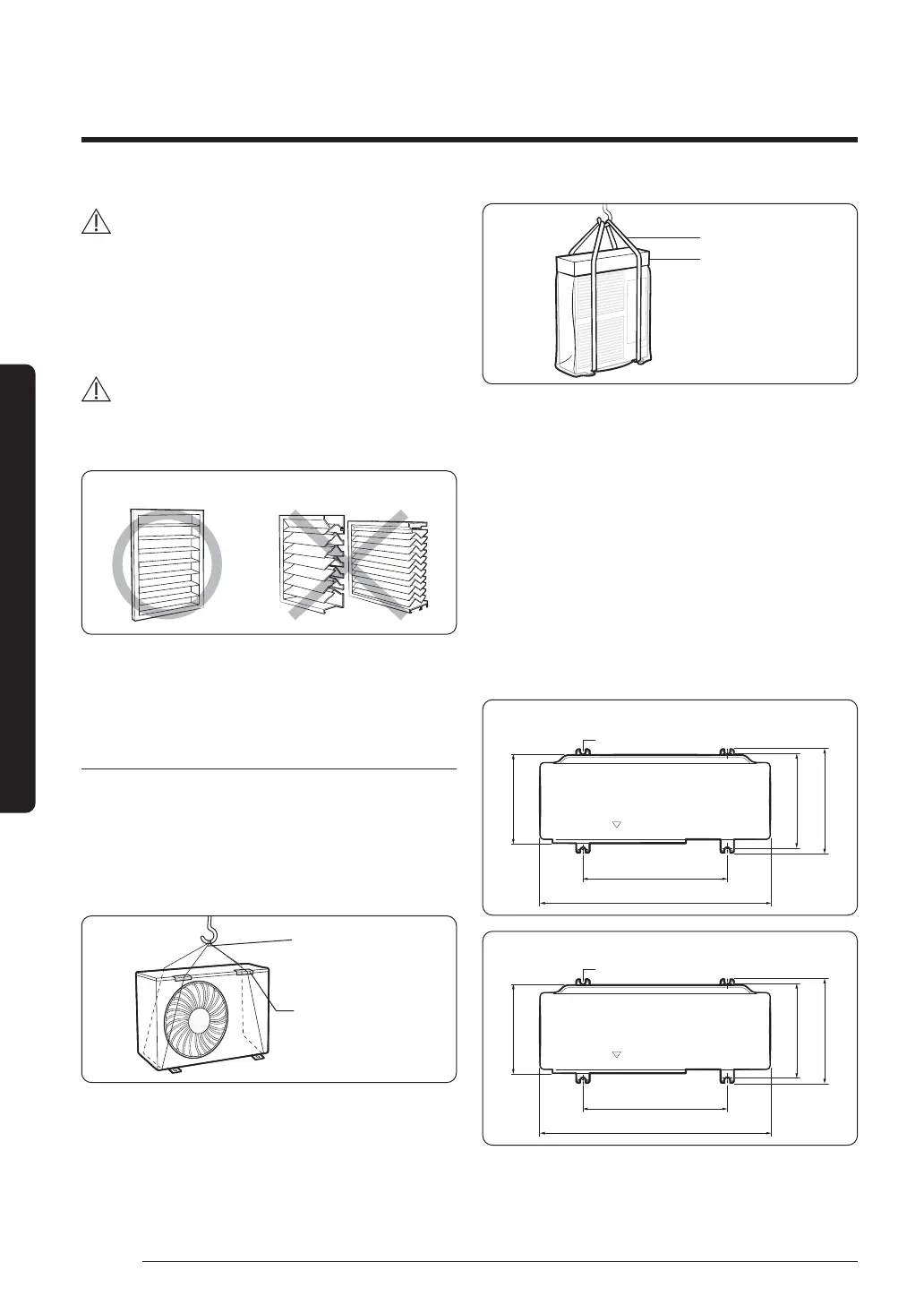

Installation Procedure
English
Installation Procedure
CAUTION
• The outdoor unit must be installed according to the
specified distances in order to permit accessibility
from each side, to guarantee correct operation,
maintenance, and repair of the unit. The components
of the outdoor unit must be reachable and removable
under safe conditions for people and the unit.
WARNING
• Should adopt bar type louver. Don’t use a type of rain
resistance louver.
[Bar type louver] [Rain resistance louver]
• Louver specifications.
– Angle criteria : less than 20°
– Opening ratio criteria : greater than 80%
Moving the outdoor unit with wire rope
1 Before carrying the outdoor unit, fasten two wire ropes
of 8 m or longer, as shown in the figure.
2 To prevent damages or scratches effectively, insert a
piece of cloth between the outdoor unit and the ropes.
3 Move the outdoor unit.
Wire rope
Plate protection cloth
Wire rope
Plate protection cloth
• The appearance of the unit may be different from
the picture depending on the model.
Step 2 Fixing the outdoor unit in
place
Install the outdoor unit on a rigid and stable base to
prevent disturbance from any noise caused by vibration.
When installing the unit at a height or in a location
exposed to strong winds, fix the unit securely to a support
(i.e., a wall or a ground).
Fix the outdoor unit with anchor bolts. Make sure that the
ɇʀ˵ͱθɵͱϩϑɇθʪߣߡͱθ˵˝˵ʪθ˙θͱϩ˵ʪɵɇϑʪϑЇθ˙ɇʀʪࢋ
(Unit : mm)
Anchor bolt hole
AC018/024TXQREH
357
661
880
338
359
(Unit : mm)
Anchor bolt hole
AC036/048/060TXQR*H
330
620
940
360
384
