26

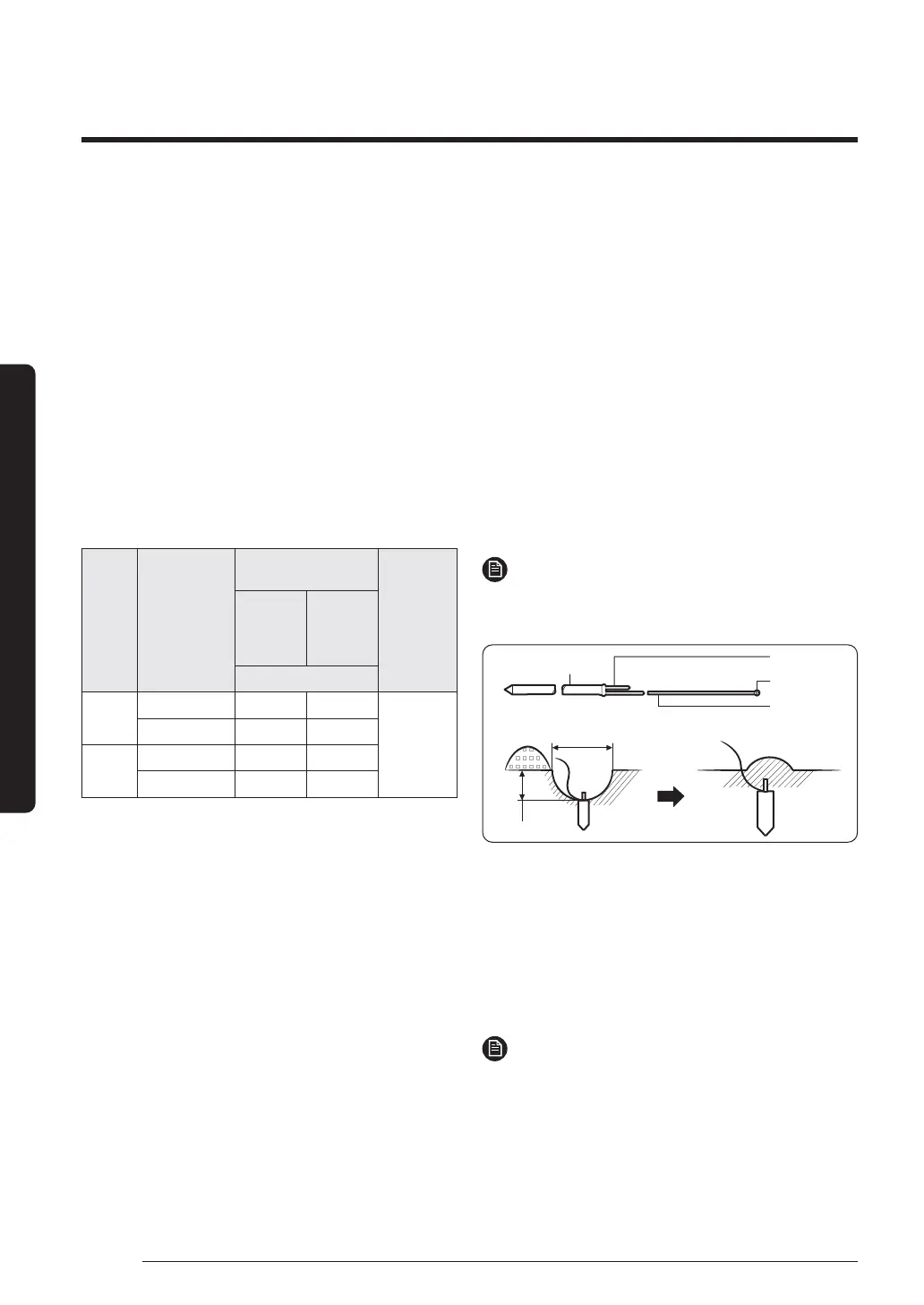

Installation Procedure
English
Installation Procedure
2 Select the insulation of the refrigerant pipe.
• When the accessory parts box (FPH******) is used
for installing the AC***TNPPEH indoor unit, use the
insulator in the accessory parts box.
However if installing in a high humidity condition,
use thicker insulator by referring to the table below. If
installing in an unfavourable conditions, use thicker one.
• Insulate the gas side and liquid side pipe referring to the
thickness according to the pipe size.
• Less than Indoor temperature of 30°C and humidity
of 85% is the standard condition. If installing in a high
humidity condition, use one grade thicker insulator
by referring to the table below. If installing in an
unfavourable conditions, use thicker one.
• Insulator’s heat-resistance temperature should be more
than 120°C.
Pipe
Pipe size
(mm)
Insulation Type
(Heating/Cooling)
Remarks
Standard
[Less than
30°C, 85%]
High
humidity
[over 30°C,
85%]
EPDM, NBR (mm)
Liquid
pipe
Ø 6.35 ~ Ø 9.52 9 t 9 t
Internal
temperature
is higher
than 120°C
Ø 12.7 ~ Ø 19.05 13 t 13 t
Gas pipe
Ø 6.35 13 t 19 t
Ø 9.52 ~ Ø 19.05 19 t 25 t
• When installing insulation in places and conditions
below, use the same insulation that is used for high
humidity conditions.
<Geological condition>
– High humidity places such as shoreline, hot
spring, near lake or river, and ridge (when the
part of the building is covered by earth and sand.)
<Operation purpose condition>
– Restaurant ceiling, sauna, swimming pool etc.
– <Building construction condition>
– The ceiling frequently exposed to moisture and
cooling is not covered.
– e.g. The pipe installed at a corridor of a
dormitory and studio or near an exit that opens
and closes frequently.
– The place where the pipe is installed is highly
humid due to the lack of ventilation system.
Step 12 Checking the earthing
If the power distribution circuit does not have a earthing
or the earthing does not comply with specifications, an
earthing electrode must be installed. The corresponding
accessories are not supplied with the air conditioner.
1 Select an earthing electrode that complies with the
specifications given in the illustration.
2 Connect the flexible hose to the flexible hose port.
• In damp hard soil rather than loose sandy or gravel
soil that has a higher earthing resistance.
• Away from underground structures or facilities,
such as gas pipes, water pipes, telephone lines and
underground cables.
• At least two metres away from a lightening
conductor earthing electrode and its cable.
NOTE
• The earthing wire for the telephone line cannot be
used to ground the air conditioner.
Carbon plastic
50 cm
30 cm
To grounding screw
Steel core
Terminal M4
PVC-insulated
green/yellow
wire
3 Finish wrapping insulating tape around the rest of the
pipes leading to the outdoor unit.
4 Install a green/yellow coloured earthing wire:
• If the earthing wire is too short, connect an
extension lead in a mechanical way and wrap it with
insulating tape (do not bury the connection).
• Secure the earthing wire in position with staples.
NOTE
• If the earthing electrode is installed in an area with
heavy traffic, its wire must be connected securely.
