8

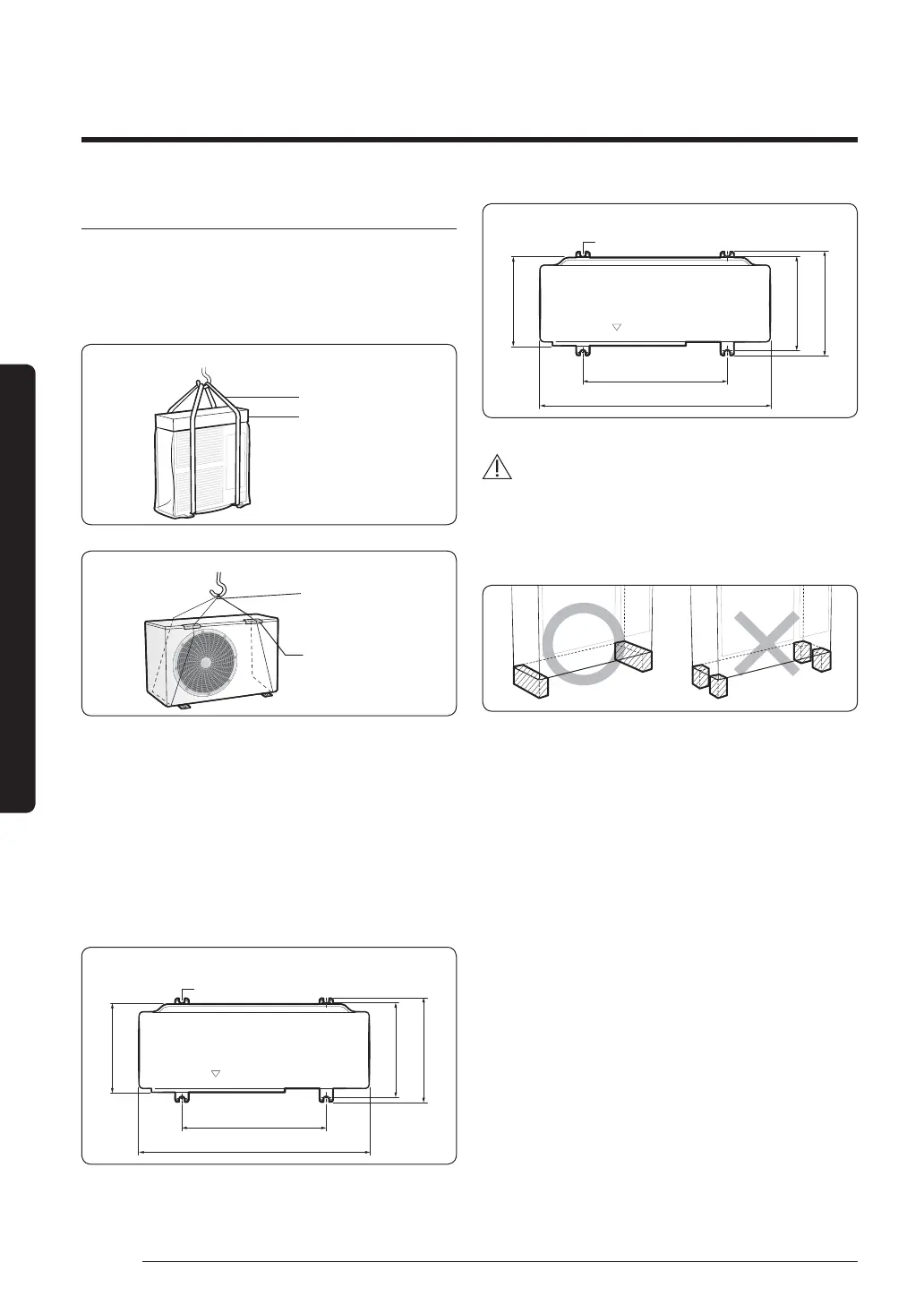

Installation Procedure
English
Installation Procedure
Moving the outdoor unit with wire rope
1 Before carrying the outdoor unit, fasten two wire ropes
ͱ˙ߪͱθͱ˝ʪθࡥɇϑϑ˵ͱиϩ˵ʪѣ˝Їθʪ
2 To prevent damages or scratches effectively, insert a
piece of cloth between the outdoor unit and the ropes.
3 Move the outdoor unit.
Wire rope
AC036/048/054TXADKC
Plate protection cloth
Wire rope
AC024TXADKC
Plate protection cloth
Step 2 Fixing the outdoor unit in place
Install the outdoor unit on a rigid and stable base to
prevent disturbance from any noise caused by vibration.
When installing the unit at a height or in a location
ʪуΧͱϑʪʒϩͱϑϩθͱ˝иʒϑࡥѣуϩ˵ʪЇϩϑʪʀЇθʪцϩͱɇϑЇΧΧͱθϩ
(i.e., a wall or a ground).
Fix the outdoor unit with anchor bolts. Make sure that the
anchor bolts are 20 mm or higher from the base surface.
AC024TXADKC
Anchor bolt hole
357
338
359
661
880
(Unit : mm)
AC036/048/054TXADKC
Anchor bolt hole
330
360
384
620
940
(Unit : mm)
CAUTION
• Install a drain outlet at the lowest end around the base
for outdoor unit drainage
• When installing the outdoor unit on the roof,
waterproof the unit and check the ceiling strength.
• Make sure that the wall can support the weights of the
rack and the outdoor unit.
• Install the rack close to the column as much as
possible.
