Installation Procedure
English
Installation Procedure
5 Carefully check the installation by measuring the
earthing resistance with a earth resistance tester. If
the resistance is above the required level, drive the
electrode deeper into the ground or increase the
number of earthing electrodes.
6 Connect the earthing wire to the electrical component
box inside of the outdoor unit.
Step 14 Performing final check and
trial operation
1 Check the power supply between the outdoor unit and
the auxiliary circuit breaker.
• 1 phase power supply : L, N
• 3 phase power supply : R, S, T, N
2 Check the indoor unit.
a
Check that you have connected the power and
communication cables correctly. (If the power
cable and communication cables one mixed up or
connected incorrectly, the PCB will be damaged.)
b
Check that the thermistor sensor, drain pump/
hose, and display are connected correctly.

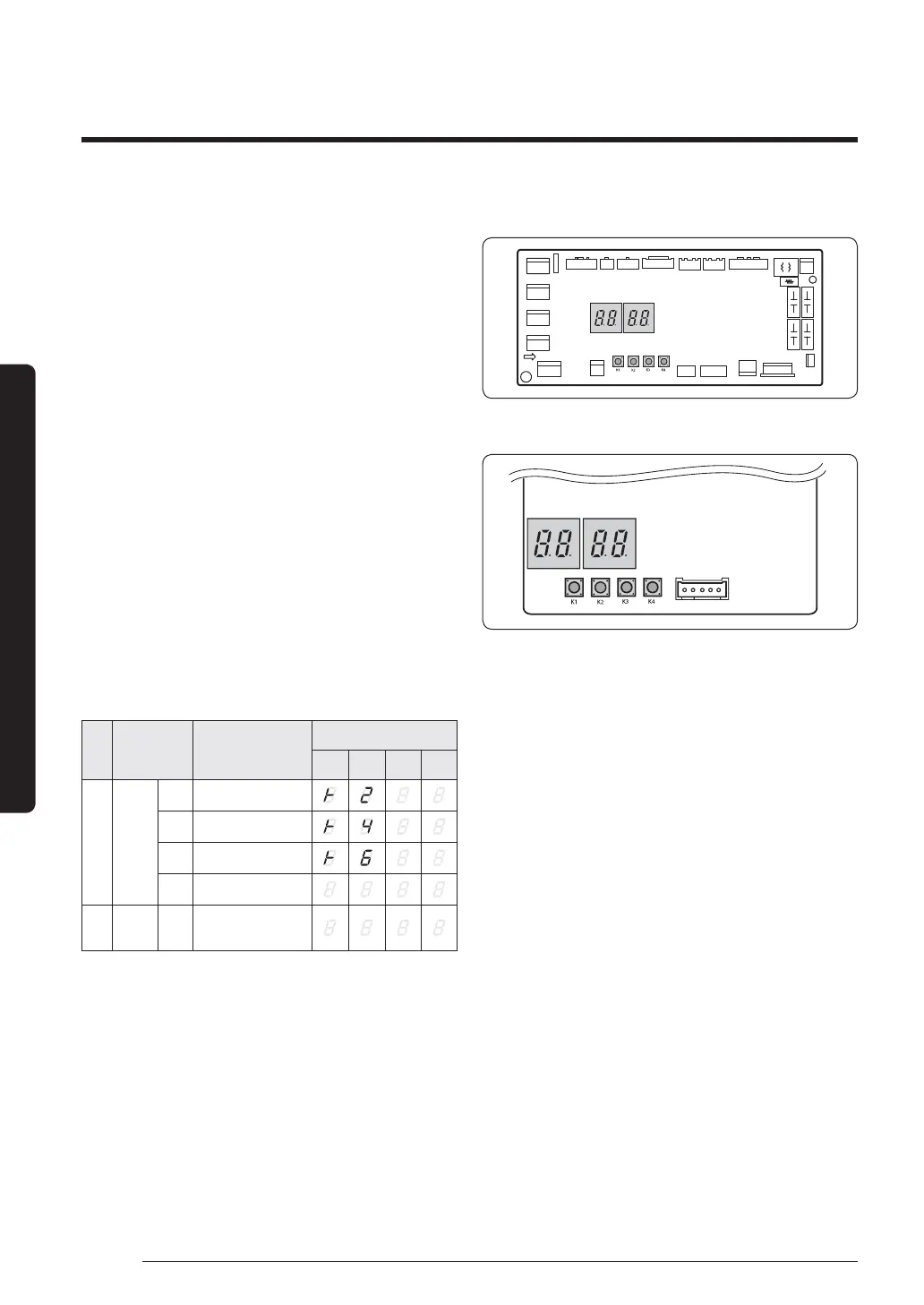

3 Press K2 on the outdoor unit PCB to run the test mode
and stop.
Key Push type Mode
Display
SEG 1 SEG 2 SEG 3 SEG 4
K2 Short
1st Cooling test
2nd Inverter check
3rd Pump down
4th Stop
K3 Short 1st
Reset
Release Eco mode
• AC024TXADKC
• AC036/048/054TXADKC
ĮĘ
ߣߤߥߦ
ĮĘ
ߣߤߥߦ
4 After 12 minutes operation check discharged air
temperature of indoor unit
• Aͱͱ˝ͱʒʪ࣑ʒͱͱθЇϩʀ˵ʪʀ࣒ÃʪϩɇθϩʪΧ
- Outlet air temp.: From 10°C to12°C
5 How to reset the power supply of the outdoor unit and
deactivate the eco mode (standby mode):
• Outdoor unit types A, B : Refer to Outdoor unit
dimensions on page 6.
• Press K3 button over 1 sec to reset the power supply
of the outdoor unit and deactivate the eco mode
(standby mode).
࢜
Eco mode : Standby for minimizing power consumption
