21
English
Installation Procedure
Calculating the quantity of refrigerant to add
The quantity of additional refrigerant is variable according
to the installation situation. Thus, make sure the outdoor
unit situation before adding refrigerant. This operation
ʀɇͱцɵʪΧʪθ˙ͱθʪʒɵцɇαЇɇѣʪʒθʪ˙θ˝ʪθɇϩͱ
specialist.
Single installation outdoor unit
Model
Interconnection pipe length (m)
0~30 30~40 40~50 50~60 60~70 70~75
AC024TXADKC +10g/m over 5m
AC036TXADKC +50g/mover 30m
AC048TXADKC +50g/m over 30m
AC054TXADKC +50g/m over 30m
Step 10 Performing the gas leak test
LEAK TEST WITH NITROGEN (before opening valves)
In order to detect basic refrigerant leaks, before recreating the
vacuum and recirculating the R-410A, it is the responsibility
of the installer to pressurize the whole system with nitrogen
(using a cylinder with pressure reducer) at a pressure above
0.2MPa, less than 4MPa (gauge).
LEAK TEST WITH R-410A (after opening valves)
Before opening valves, discharge all the nitrogen into the
system and create vacuum. After opening valves check
leaks using a leak detector for refrigerant R-410A.
Once you have completed all the connections, check for
ΧͱϑϑɵʪʪɇϑЇϑ˝ʪɇʒʪϩʪʀϩͱθϑΧʪʀѣʀɇцʒʪϑ˝ʪʒ˙ͱθ
HFC refrigerants.

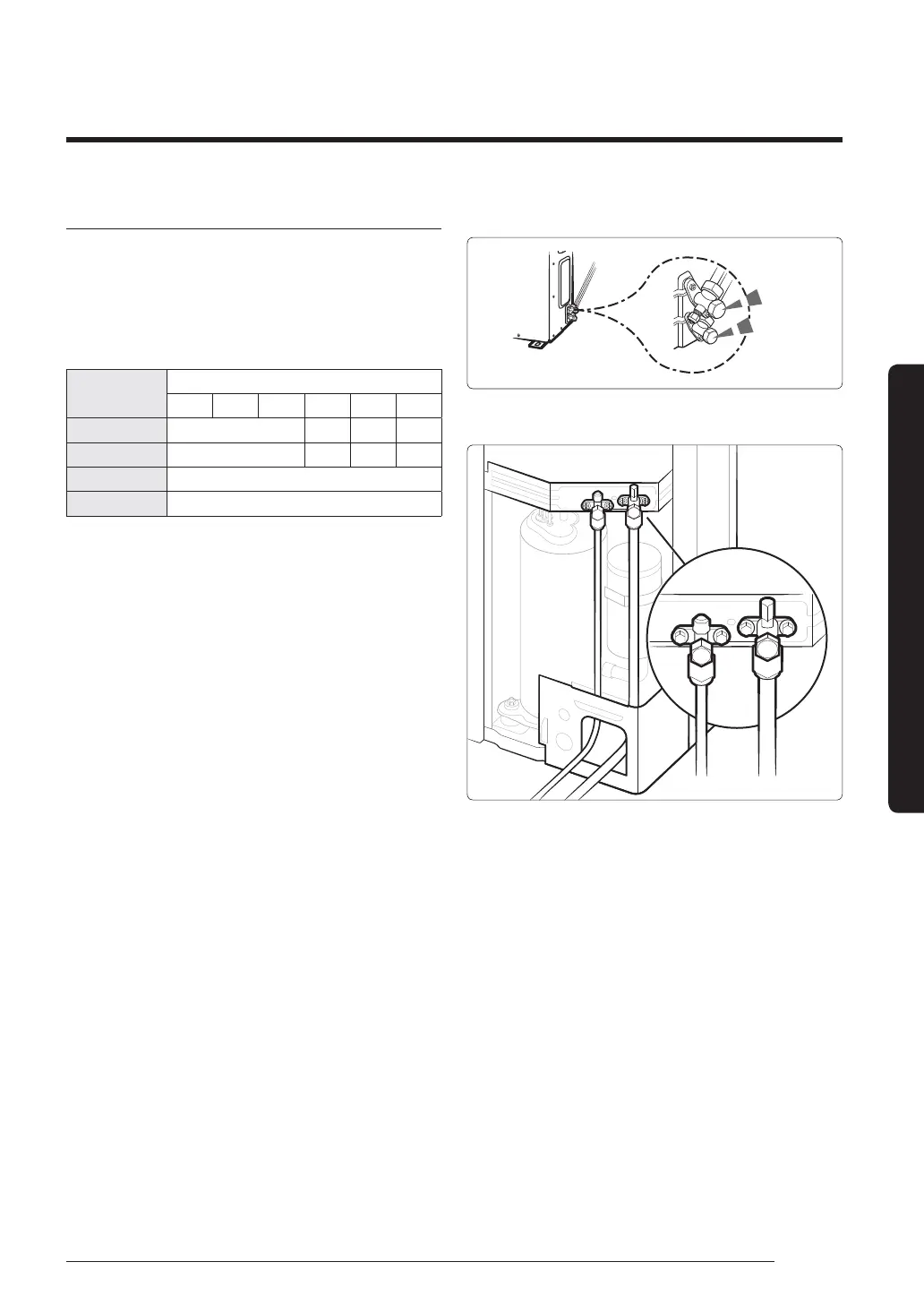

• AC024TXADKC
B (liquid)
A(Gas)
• AC036/048/054TXADKC
A (Gas)
B (liquid)
• The designs and shape are subject to change
according to the model.
