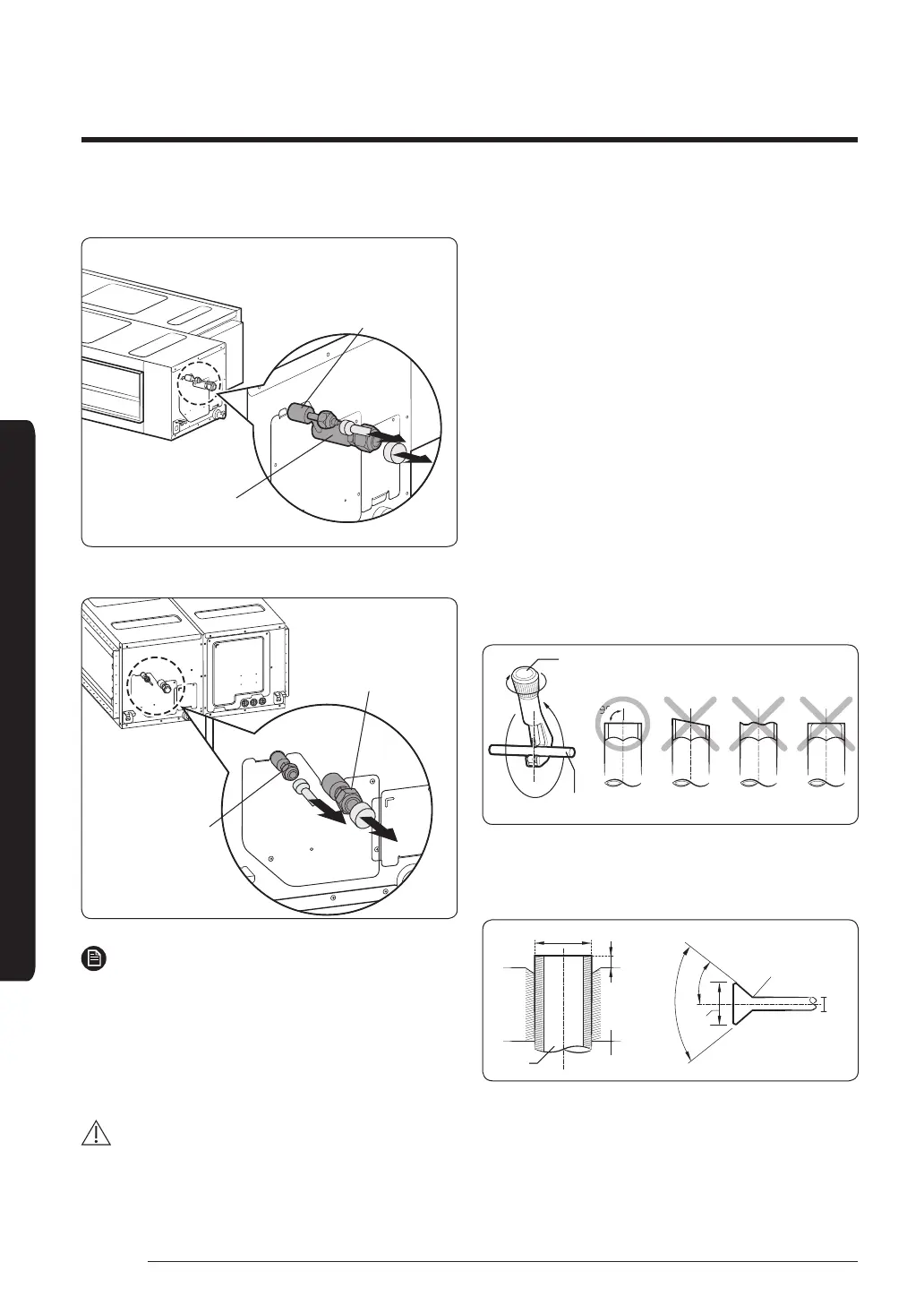

Installation Procedure
Installation Procedure
English
AC054TNMPEC
Gas
refrigerant port
Liquid
refrigerant port
AC060TNHPEC
Liquid
refrigerant port
Gas refrigerant
port
NOTE
• The designs and shape are subject to change
according to the model.
• To prevent dirt or foreign objects from getting into
the pipes during installation, do NOT remove the
pinch pipe completely until you are ready to connect
the piping.
CAUTION
• Connect the indoor and outdoor units using pipes with
flared connections(not supplied). For the lines, use
insulated, unwelded, degreased and deoxidized copper
pipe (Cu DHP type to ISO 1337 or UNI EN 12735-1),
suitable for operating pressures of at least 4200kPa and
for a burst pressure of at least 20700kPa. Copper pipe
for hydro-sanitary applications is completely unsuitable.
• For sizing and limits (height difference, line length,
max. bends, refrigerant charge, etc.) see the outdoor
unit installation manual.
• All refrigerant connection must be accessible, in order to
permit either unit maintenance or removing it completely.
Step 6 Cutting and flaring the pipes
1 Make sure that you have the required tools available.
(pipe cutter, reamer, flaring tool and pipe holder)
2 If you wish to shorten the pipes, cut it with a pipe
cutter, taking care to ensure that the cut edge remains
at a 90° angle with the side of the pipe. Refer to the
illustrations below for examples of edges cut correctly
and incorrectly.
Pipe cutter
Pipe
90°
Oblique
Rough
Burr
90°
3 To prevent any gas from leaking out, remove all burrs at
the cut edge of the pipe, using a reamer.
4 Slide a flare nut on to the pipe and modify the flare.
Pipe
Flare
D
A
Flare
90° ±2°
R 0.4 to 0.8 mm
D
L
45° ±2°
