12
Installation Procedure
Installation Procedure
English

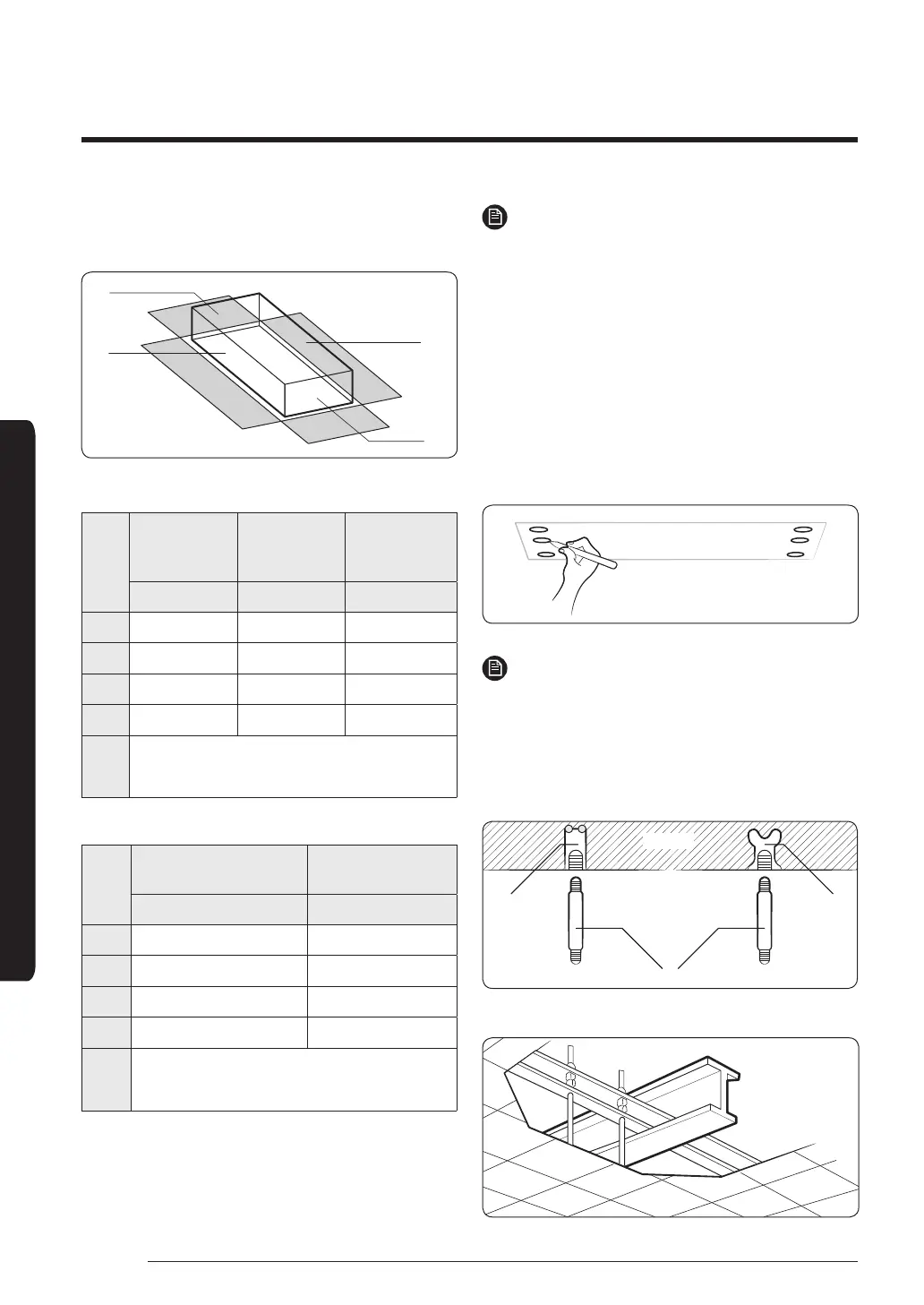

Step 3 Optional: Insulating the body
of the indoor unit
A
D
B
C
Thickness: more than 10mm
Indoor
Unit
AC012TNMPEC
AC018TNMPEC
AC024TNMPEC
AC030TNMPEC
AC036TNMPEC
AC042TNMPEC
850 x 700 x 250 1200 x 700 x 250 1300 x 700 x 300
A 850 x 250 1200 x 250 1300 x 300
B 850 x 250 1200 x 250 1300 x 300
C 700 x 250 700 x 250 700 x 300
D 700 x 250 700 x 250 700 x 300
Front/
Back
Insulate the front and back side in proper size at
the same time when insulating the suction duct and
discharge duct.
(Unit: mm)
Indoor
Unit
AC054TNMPEC AC060TNHPEC
1350 x 837 x 360 1350 x 850 x 450
A 1350 x 360 1350 x 450
B 1045 x 360 1350 x 450
C 837 x 360 850 x 450
D 837 x 360 850 x 450
Front/
Back
Insulate the front and back side in proper size at
the same time when insulating the suction duct and
discharge duct.
(Unit: mm)
NOTE
• Insulate the end of the pipe and some curved area by
using separate insulator.
• Insulate the discharge and suction part at the same
time when you insulate connection duct.
Step 4 Installing the indoor unit
When deciding on the location of the air conditioner
with the owner, the following restrictions must be taken
into account
1 Place the pattern sheet on the ceiling at the spot where
you want to install the indoor unit.
NOTE
• Since the diagram is made of paper, it may shrink or
stretch slightly due to temperature or humidity. For
this reason, before drilling the holes maintain the
correct dimensions between the markings.
2 Insert bolt anchors. Use existing ceiling supports or
construct a suitable support as shown in figure.
Concrete
Hole in anchor
Hole in plug
Suspension bolt (M8) - eld supply
Insert
3 Install the suspension bolts depending on the ceiling type.
Ceiling support
