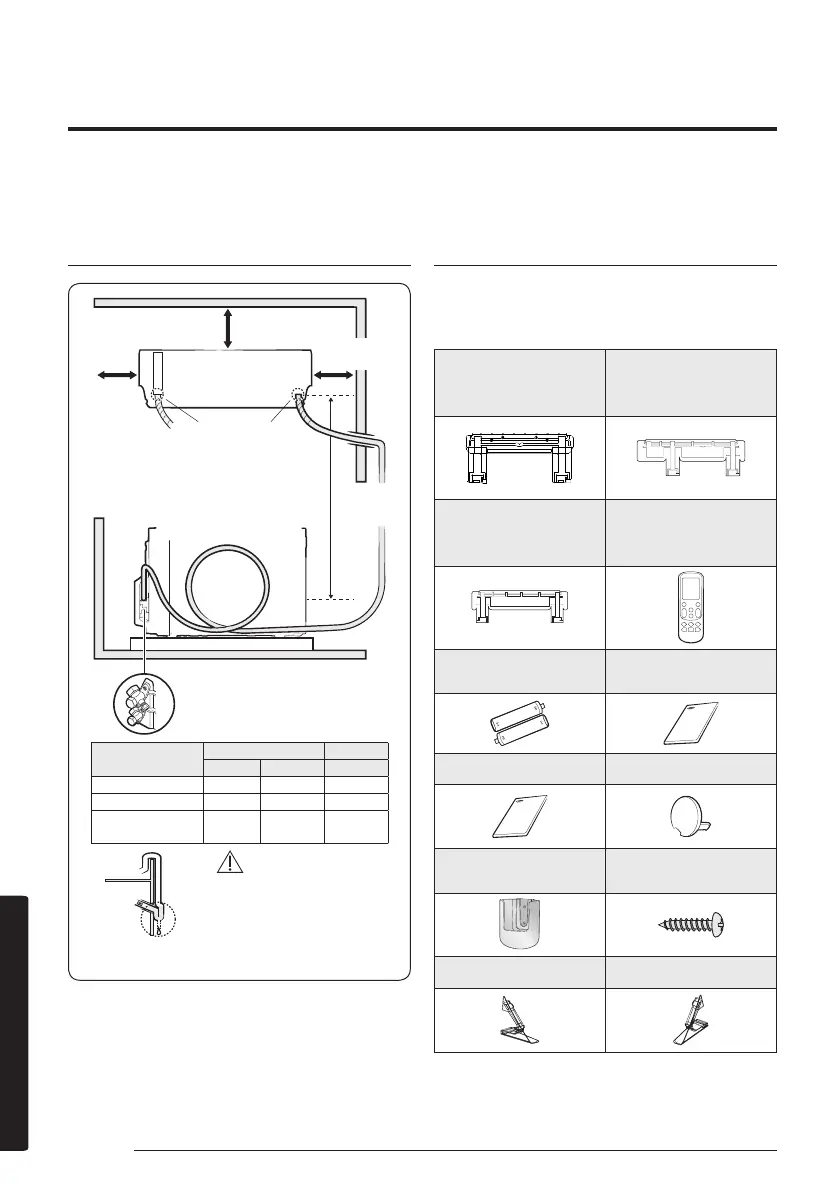

38 English
Installation
Preparation
Step 1.1 Choosing the installation
location
Overview of installation location requirements
CAUTION
Step 1.2 Checking and preparing
accessories and tools
Accessories
Accessories in the indoor unit package
ACMNADCH
Installation plate (1)
012
(01 frame)
Installation plate (1)
018
(04 frame)
Installation plate (1)
024
(05 frame)
Remote control (1)
Remote control battery (2) User Manual (1)
Installation Manual (1) Cap screw (3)
Remote Control Holder (1)
M4 x 16
Tapped Screws (2)
Guide Left(1) Guide Right(1)
3.94 inch (100 mm) or
more (recommended)
4.92 inch (125
mm) or more
(recommended)
4.92 inch (125
mm) or more
(recommended)
Drain hose hole
You can select the direction of
draining (left or right).
Maximum pipe height: 26.25 ft (8 m)
Maximum pipe length: 49.21 ft (15 m)
Make at least one round to
reduce noise and vibration.
The actual units may look different from
the images depicted here.
Make a U-trap (A) on the pipe
(which is connected to the
indoor unit) at outer wall and
cut the bottom part of the
insulation [about 0.39 inch
(10 mm)] to prevent rainwater
from getting inside through
the insulation.
Outdoor
Unit
Outer wall
Indoor
Unit
Cut insulation to have
rainwater drained
Unit : ft (m)
Model
Pipe length Pipe height
Minimum Maximum Maximum
AC012MNADCH 9.84 (3) 65.62 (20) 49.21 (15)
AC018MNADCH 9.84 (3) 98.43 (30) 65.62 (20)
AC024MNADCH
AC030/036MNTDCH
9.84 (3) 164.04 (50) 98.43 (30)
