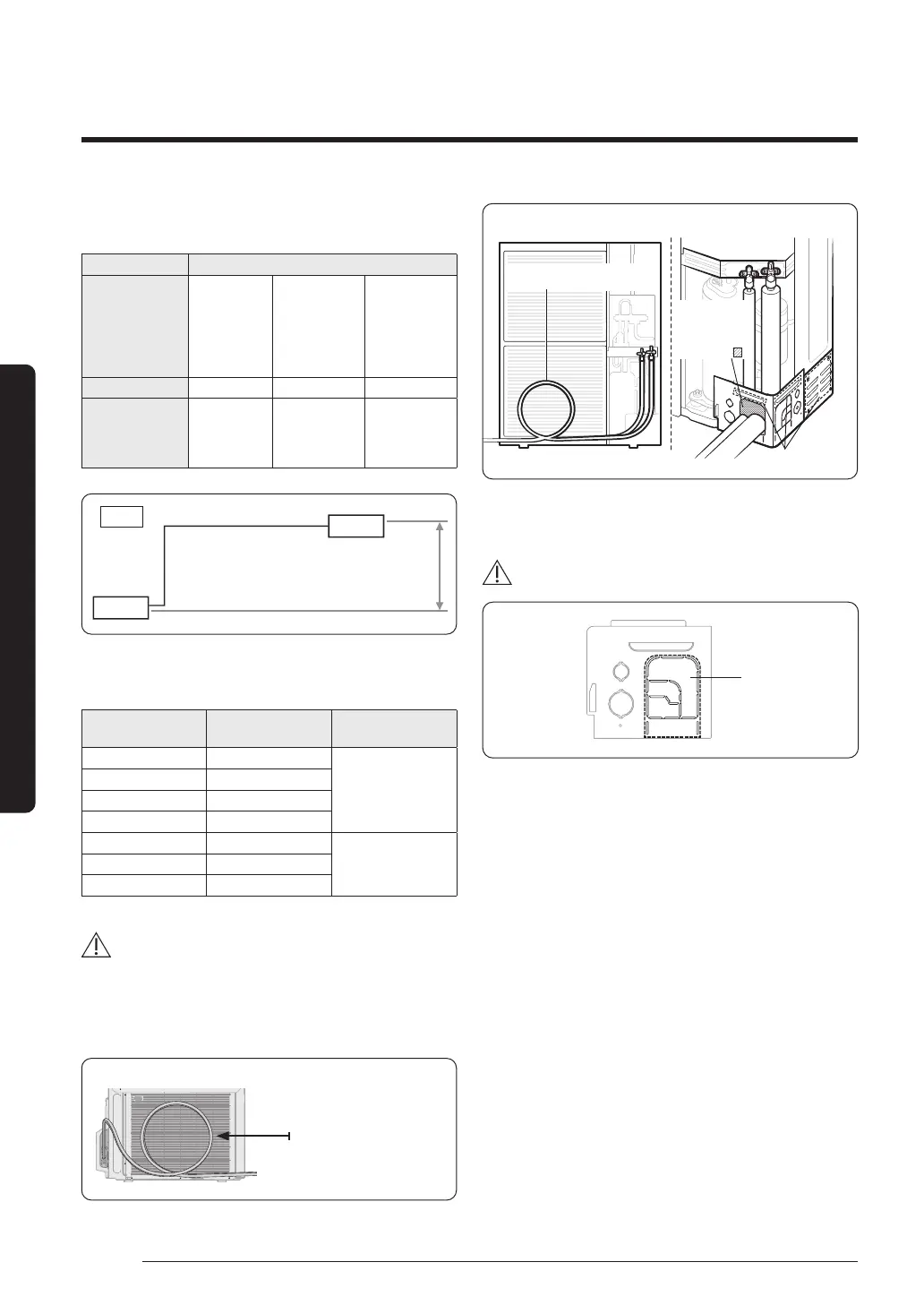

Installation Procedure
English
Installation Procedure
Step 6 Connecting the refrigerant pipe
Items Maximum allowable length [ft(m)]
Applicable outdoor
unit models
AC018BXSCCC
AC018BXADCH
AC024BXADCH
AC024BXSCCC
AC030BXADCH
AC030BXSCCC
AC036BXSCCC
AC030BXSCCH
AC036BXADCH
AC036BXSCCH
AC042BXADCH
AC048BXADCH
Main pipe (L1) 98.4(30) 164.0(50) 246.0(75)
Max. height
difference between
outdoor and indoor
units (h1)
65.6(20) 98.4(30) 98.4(30)
n=1
˵ࠔ
indoor
outdoor
øࠔ
• Temper grade and minimum thickness of the
refrigerant pipe
Outer diameter
[inch(mm)]
Minimum thickness
[inch(mm)]
Temper grade
ø1/4(6.35) 0.0276(0.7)
C1220T-O
ø3/8(9.52) 0.0276(0.7)
ø1/2(12.7) 0.0315(0.8)
ø5/8(15.88) 0.0394(1.0)
ø5/8(15.88) 0.0315(0.8)
C1220T-1/2H OR
C1220T-H
ø3/4(19.05) 0.0354(0.9)
ø7/8(22.23) 0.0354(0.9)
CAUTION
• Be sure to use C1220T-1/2H (Semi-hard) pipe for more
than Ø19.05 mm. If you use C1220T-O (Soft) pipe for
Ø19.05 mm, the pipe may be broken, which can result
in an injury.
Make at least one round:
It will reduce noise and vibration
AC018BXADCH, AC018/024BXSCCC
AC024/030/036/042/048XADCH, AC030/036BXSCCC, AC030/036BXSCCH
After
connecting
the pipes, block
the part .
Make at least one round:
It will reduce noise and vibration
(A) Heat radiation holes
Do not block the holes.
• The designs and shape are subject to change
according to the model.
CAUTION
Pipe outlet
• Cut the pipe outlet to the exact pipe size. In addition,
remove foreign substances and burr aroud the outlet.
• ťʪθ˙ͱθʀЇϩϩ˝иϩ˵ͱцɇʀЇϩϩʪθ࣍ʪуࢋΧΧʪθ࣎ɇʒ
never tap with a hammer near the pipe outlet.
Otherwise, it may cause product damage such as
warping of the cabinet.
• After connecting the pipes with Pipe outlet, plug the
space around the pipes.
• After connecting the pipes, proceed exactly as directed
in the guide to prevent interference with the internal
parts.
• Tighten the nuts to the specified torques. If
overtightened, the nuts could be broken so refrigerant
may leak.
• Protect or enclose refrigerant tubing to avoid
mechanical damage.
• After installing pipes, block the unused knock hole
to prevent small animal from entering. However, the
radiant heat hole(A) should be able to intake air.
